Good price online

products details

Home > Products >
Automatic Level
>
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument
All Category

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder
Contact Us
Miss. Lili Zhou
yyi658731@gmail.com
wechat ChengDu-3987
Contact Now
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument
  • name
  • name
  • name
  • name
  • name

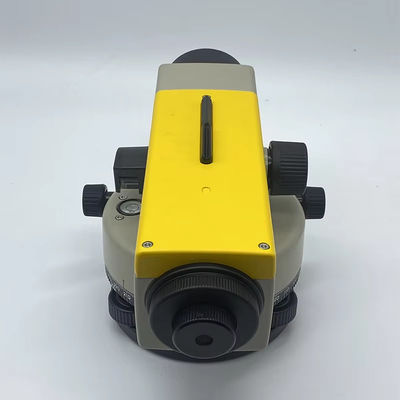

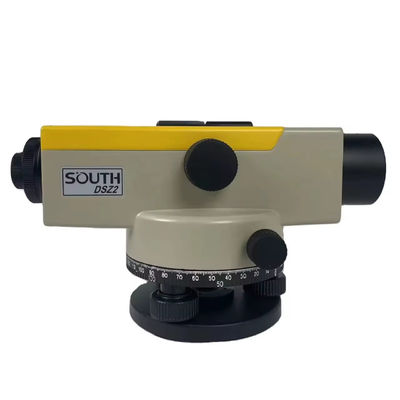

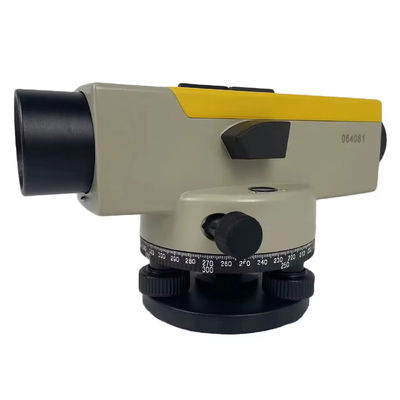

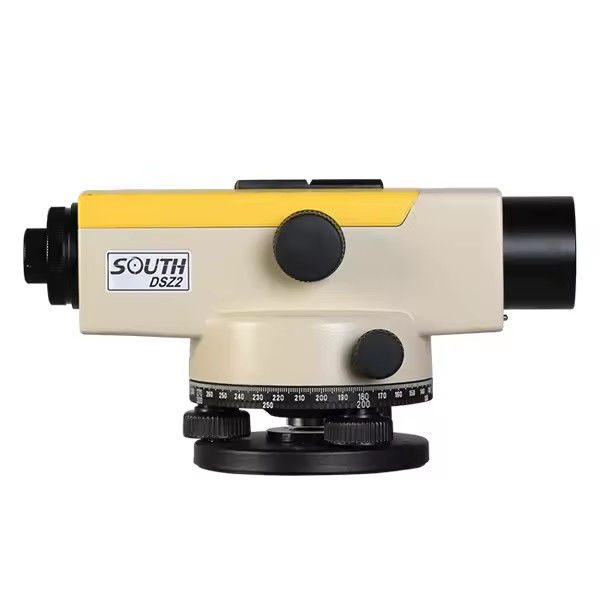

High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument

Brand Name: SOUTH
Model Number: DSZ2
MOQ: 1 set
Price: $245.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Auto Level SOUTH DSZ2
Net Weight Per Unit:
2.2kg
Package Size (4 PCS/CTN):
251mm*144mm*138mm
Effective Objective Aperture:
45mm
Image:
Erect
Minimum Focus Distance:
0.6m
Multiplication Constant:
100
Magnification:
32x
Supply Ability:
1 ~ 30 day
Highlight:

automatic level 32x

,

32x automatic leveller

,

topographic automatic level

Product Description

High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument





Overview

Features & Functions
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 0
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 0
Applications
This automatic level is mainly suitable for high precision leveling measurement of engineering including construction project, mine, road, bridge, etc. Standard deviation for 1km double-run leveling is < 1.0mm.
It uses gravity pendulum magnetic damping compensator, having super stable damping effect and high precision of setting accuracy. Suitable for high precision of different tuff surveying conditions. And using super large roof prism, which bringing super clear imaging, making minimum for focusing distance < 0.3m.
The protected packing design is suitable for long distance transportation.
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 2
Height Measurement
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 3
Distance Measurement
Specifications
Model
DSZ2
Magnification
32X
Effective objective aperture
45mm
Erect
Reticle
Cross reticle
Field of View
1°30'(2.6m/100m)
Minimum focus distance
0.6m
Multiplication constant
100
Additive constant
0
Compensator Type
Magnetic damping
Compensator range
±15'
Compensator setting time
＜1s
Compensator setting accuracy
±0.3''
Standard 1 km deviation
1mm
Circle graduation
360°or 400 gon (minimum 1°or 1 gon)
Dustproof & waterproof
IP65
Working temperature
-20℃～50℃
Storage temperature
-40℃～70℃
Net weight per unit
2.3kg
Package size (4 PCS/CTN)
450x325x450mm
Gross weight (4 PCS/CTN)
16kg

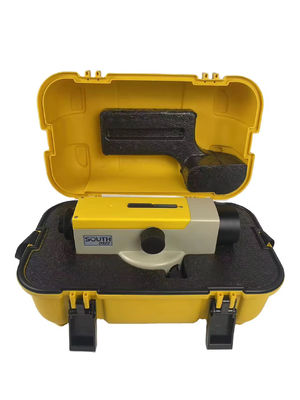

Packing Details
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 4
Main Unit
1x
Len Cover
1x
Tool Kit
1x
Plummet Ball
1x
User Manual
1x
Plastic Carrying Case
1x
Optional Accessories
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 5



ATS-4
Aluminum Tripod for mounting Automatic Levels
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 6



AGR-5
Telescopic Leveling Staff 5m/4m/3m
High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 7



EPS2
Range Pole 3m/2m





Packing & Delivery



High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 8



Certifications



High Precision Automatic Level 32X DSZ2 Optical Level SOUTH Topographic Surveying Instrument 9



FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Tags:
