Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER
  • name
  • name
  • name
  • name
  • name

Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER

Brand Name: FOIF
Model Number: A90
MOQ: 1 piece
Price: $3,000.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
RTK Receiver FOIF A90 Base And Rover
Customized Support:
OEM
Channel:
1408 Channels
Mother Board:
UM980
Glonass:
L1/L2
BDS:
B1l ,B2I ,B31 ,B1C ,B2a, B2b
GALILEO:
E1,E5a, E5b, E6
RTK Accuracy:
Horizonal: 8mm+0.5ppm; Vertical: 15mm+0.5ppm
Supply Ability:
1 ~ 30 day
Highlight:

gps rtk receiver

,

gnss rtk receiver

,

gnss rtk gps receiver

Product Description

Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER

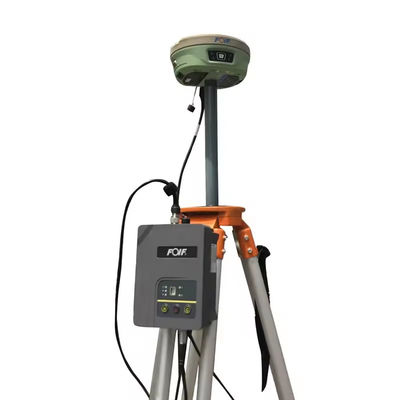

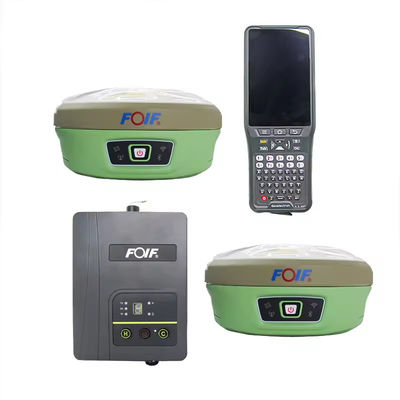

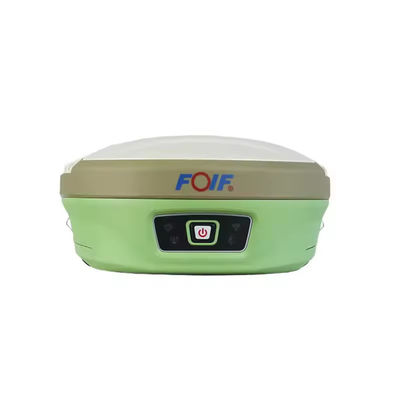

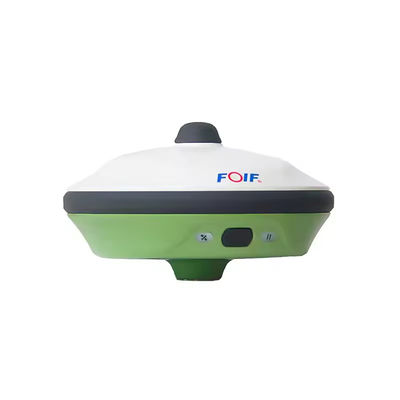

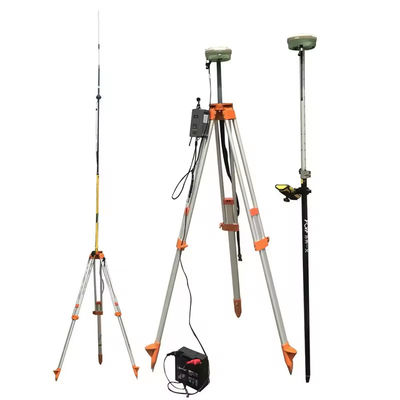

Detailed Images
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 0
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 1
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 2
Product Description
1. Compact design, more productive
2. Professional GNSS satellites tracked simultaneously( GPS, Glonass, Galileo, Beidou)
3. Automatic data collection during centering
4. When the pole is tilted in 60 degrees, A90 still could get the right point data by automatic correct system.
5. Applies WIFI connection to realize WebUI control designed to modify settings and monitor the receiver status
6. Bundled Android field software brings a big change in user experience and accessibility

Specification


Items
Specification








GNSS
GNSS board
UM980
Channel
1408




Satellites
GPS: L1C/A, L2P(Y), L2C, L5
GLONASS: L1/L2
BeiDou: B1I, B2I, B3I,B1C,B2a, B2b,
GALILEO: E1, E5A, E5B, E6
IRNSS: L5 SBAS: L1C/A, L5
QZSS: L1,L2,L5,L6
Update rate
5Hz( Standard to 5 Hz, can pay to activate 50 Hz)
Static Accuracy
Horizon: ±( 2.5+1*10"D) mm; Vertical: ±( 5+1*10"D) mm
RTK Accuracy
Horizon: ±( 8+1*10"D) mm; Vertical: ±( 15+1*10"D) mm
IMU function
Tilt survey 60 degree
Power
Battery
Dual batteries, 7.2V/3400mAh*2 Can work at least 10 hours
Input
9-28V DC
System
OS
Linux
Memory
Internal 8G; TF extended, Max≥32G
Bluetooth
V2.1+EDR/ V4.1 Dual Mode, Class 2
WI-FI
802.11 b/g/n

4G
North America: EC25-A, 4G
FDD LTE: B2/B4/B12
WCDMA: B2/B4/B5

Internal UHF
TRM 101; Power 1W, Frequency 410-470 MHz
Work Distance: 5km in good environment
Protocol
SATEL, PCC-GMSK, Trim Talk 450S, South, TrimMark IIII(19200), GeoTalk, GeoMark
Electric Bubble
Support, Support tilt survey
Interface
TNC
For UHF Antenna
5 pin
External radio and external power
7 pin
USB Port, NMEA Out put
Others
Micro SIM Slot and TF slot
Operation
Button
Power button, also can show Power status
Indicator
5 indicators: Satellites, Datalink, Bluetooth, WIFI Status, Power Indicatior
Language
Supports TTS Multi language voice
Physical
D*H
157mm*76mm
Weight
1.2KGS with 2 batteries inside
Environment
Work Temperature

Stock Temperature
-40℃~+80℃
Protection
IP67
Shock
Withstand 2 meters pole drop, 1.2m drop without pole
Humidity
100%



Parking and Delivery
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 3
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 4

Our Services and Advantages
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 5

Services

1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.
Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 6



Certifications



Surveying Instrument GPS RTK Base and Rover FOIF A90 1408 Channels GNSS GPSS RTK RECEIVER 7



FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
