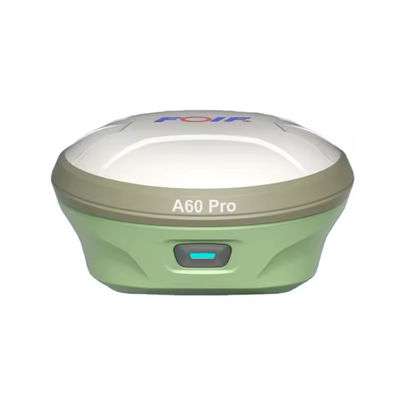

Surveying Instrument GPS RTK Base and Rover FOIF A60 PRO 1408 Channels GNSS GPSS RTK RECEIVER

Brand Name:	FOIF
Model Number:	A60 PRO
MOQ:	1 piece
Price:	$3,200.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver FOIF A60 PRO Base And Rover

Customized Support:

Channel:

1408 Channels

Transmitting Power:

0.5W, 1W, 2W Adjustable

Transmitting Speed:

9.6Kbps, 19.2Kbps

B1, B2, B3

L1CA, L1P, L1C, L2P, L2C, L5

GLONASS:

G1, G2, P1, P2

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk receiver

gnss rtk receiver

gnss rtk gps receiver

Product Description

Surveying Instrument GPS RTK Base and Rover FOIF A60 PRO 1408 Channels GNSS GPSS RTK RECEIVER

Overview

A60 PRO
GNSS	Channels	1408
	Satellite Signals	GPS:L1 C/A,L1P,L1C,L2C,L2P,L5
		BDS: B1I, B2I, B3I, B1C, B2a, B2b, ACEBOC
		GLONASS: G1, G2, G3
		Galileo: E1, E5a, E5b, ALTBOC, E6
		QZSS: L1C/A, L1C, L2C, L5, LEX
		SBAS:L1,L5
		L-Band: optional
	Update Rate	10Hz standard, 20Hz optional
Accuracy	Static	H: ±(2.5+0.5×10-6D)mm ; V: ±(5+0.5×10-6D)mm
	RTK	H: ±(8+1×10-6D)mm; V: ±(15+1×10-6D)mm
Power supply	Battery capacity	Built-in battery, 4.2V, 6800mAh*2
	working duration	lasts for 10h (rover)
	input voltage	9~28V DC

System	Operating System	Linux+A7
	Memory	8G, no TF card slot
	blue tooth	V5.0+EDR, downward compatibility/ BLE
	WIFI	802.11 b/g/n

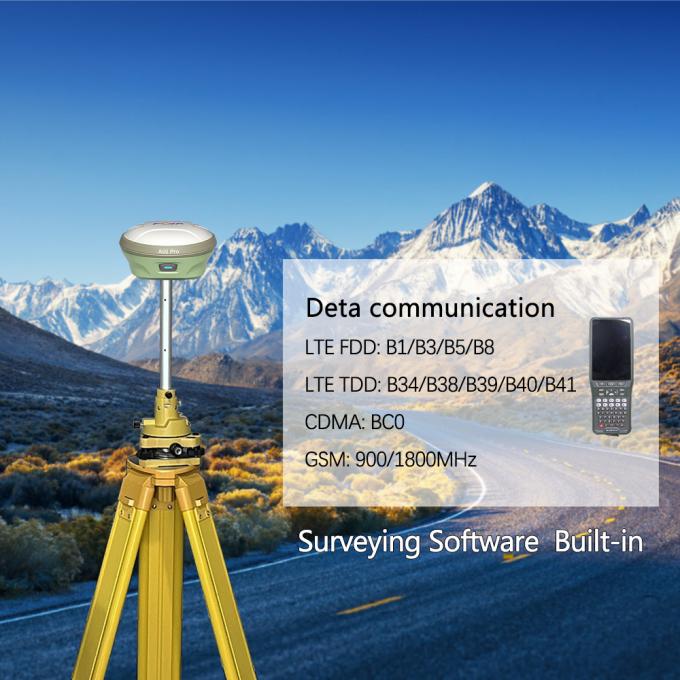

	Network	Full Netcom 4G;
		LTE FDD: B1/B3/B5/B8

		LTE TDD: B34/B38/B39/B40/B41


		CDMA: BC0

		GSM: 900/1800MHz
	radio	TRM101,410-470MHz
	RTKFusion	Positioning accuracy of 30° bar tip within 2cm and 60° bar tip within 5cm Note: 1.8 m bar height

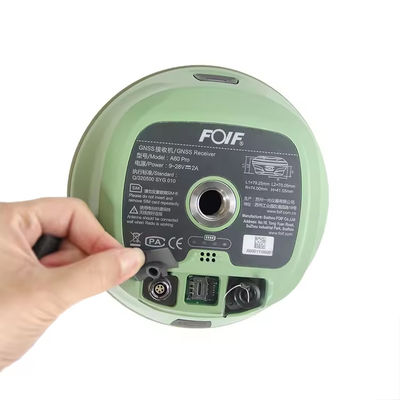

Data link	TNC	used to connect inner radio antenna
	Type-C port	used for charge and date transmission
	5 Pin Port	Used to connect external power and external radio
	Esim	ESim embedded, no need to insert a card can be implemented network mode operation
	SIM Card slot	Dual-card slot compatible design, embedded ESIM, external SIM card.If the SIM card is inserted, it will use the SIM card by default. If the SIM card is not inserted, it will use ESim by default.At the same time, the user can also choose the use scheme

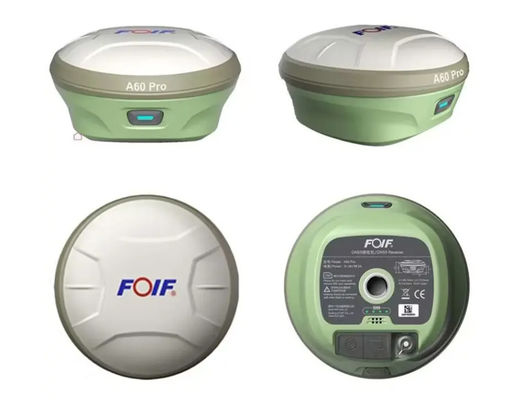

Physical	Size	148mm*74.5mm, weights about 1.0kg
	vioce	supprt
	Screen	Smart Touch Screen, work as a controller
	turn on/ off	1) Long press for 3 seconds to turn off the device.
		(2) Short press once to broadcast the current state, and the four battery level indicator lights will be on for 5s according to the battery level and then off.
		Shutdown state:
		(1) Long press for 3 seconds to start the device
		(2) Shutdown and charging state: four battery level indicators.
		(3) Short press once (slightly longer than in the power-on state) : the four battery level indicator lights will be on for 5s and then go off.
	Breathing Light Red
	Red always bright: self - check fault
	Breathe in Red: Charge less than 25%
	Red flash: abnormal communication on board card
	Green 5S one time (500ms green) overlay mixed color: data records, including static, base station, mobile station data records
	purple
	Chang Liang: Fixed solution
	Blink: data link receiving and sending
	Breathing: single point, successful positioning
	Flash: Not positioned
	Purple turns blue when blue tooth is connected
	Yellow boot in..
	Yellow flicker self check..
	The yellow breath firmware is being upgraded..
	Red-green-blue cycle built-in module upgrade...Including network module firmware, board card firmware, sensor firmware, radio firmware
	4 electric quantity indicator lights
	In the charging state, the light flashes according to the remaining charge
	75% to 100% electric quantity, representing 25%/50%/75% electric quantity light is always green, only the fourth electric quantity light flashes
	The battery level is 50%-75%, representing 25% and 50% of the battery level lights are always green, and only the third battery level light flashes
	The battery level is 25%-50%, representing 25% of the battery level light is always green, and only the second battery level light flashes
	When the battery is below 25%, only the first battery light flashes every second
	Power 75-100%, 4 lights are all bright, green is always bright
	Power 50%-75%, 3 lights on, green light
	Electricity 25%-50%, 2 lights on, green light is always on
	When the electric quantity is lower than 25%, only one light is left and the green light is always on
Environment	Work Temperature	-30℃ ~ +65℃
	Storage	'-40℃ ~ +80℃
	Temperature
	Down Fall	Resistance to 2m fall with pole (hardwood ground), 1.2m free fall.
	Waterproof & dustproof	IP67
	Humidity	anti-condensation 100%

If you want to know more about our products, please consult us!

Our Services and Advantages

Services

1.Any inquiries will be replied within 12 hours.
2.All our products have one year warranty, And we sure the products will be free for maintenance within warranty period.
3.All products will have been strictly quality checked in factory before sending out.

Certifications

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
