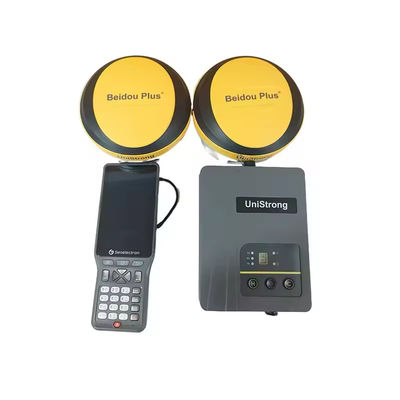

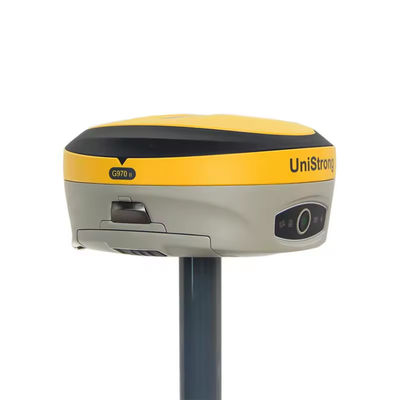

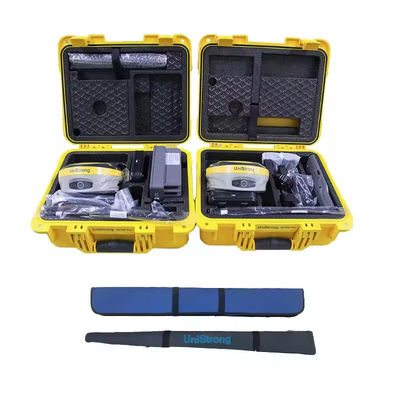

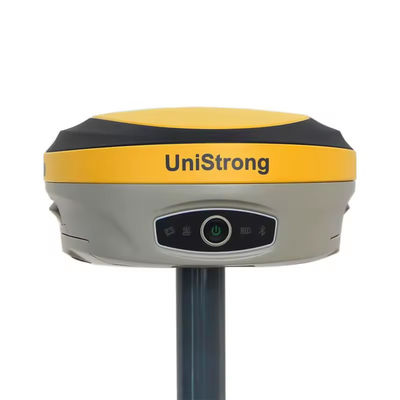

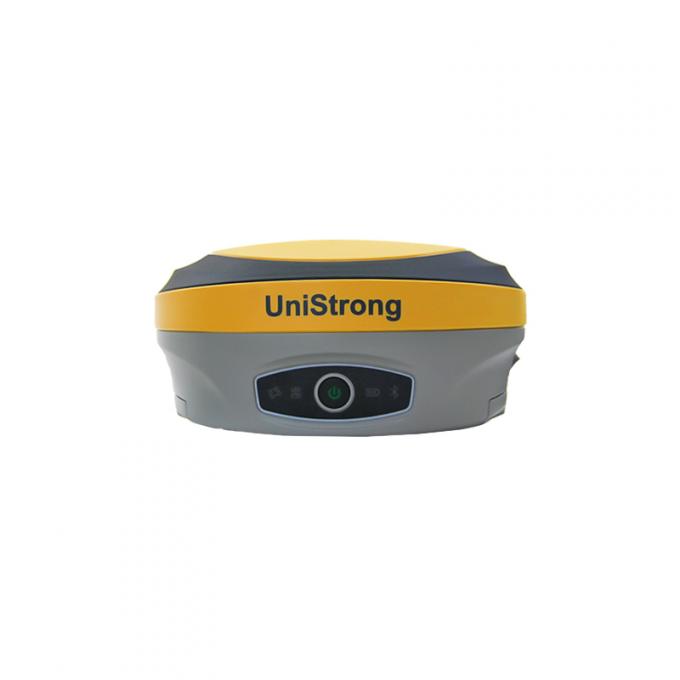

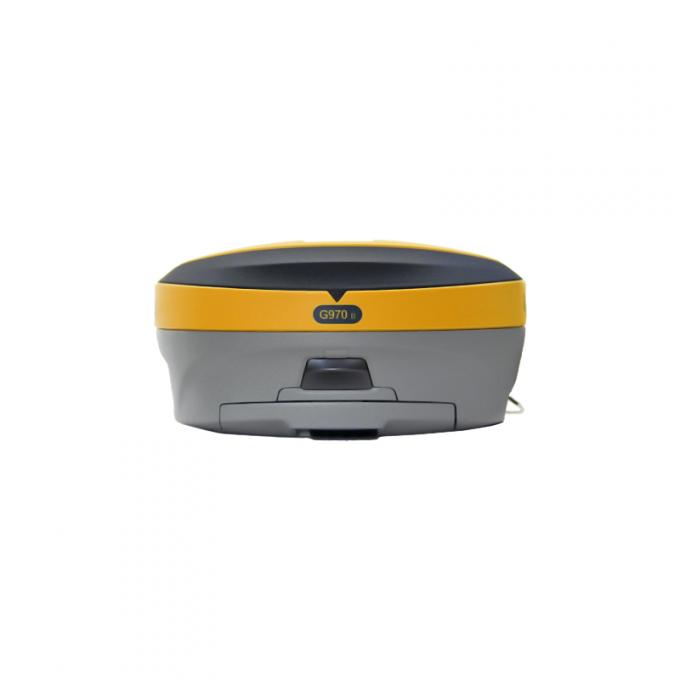

Surveying Instrument GPS RTK Base and Rover Unistrong G970II PRO Gps Rtk Gps Rove GNSS GPSS RTK RECEIVER

Brand Name:	Unistrong
Model Number:	G970II PRO
MOQ:	1 piece
Price:	$2,999.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Unistrong G970II PRO Base And Rover

Customized Support:

Channel:

1408 Channels

Internal Battery Life:

Static 12hours

Transmitting Speed:

9.6Kbps, 19.2Kbps

Application:

Full-wave

L1 CA/L1P/L1C/L2P/L2C/L5

B1I,B2I,B3I,B1C,B2a,B2b*

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk receiver

unistrong rtk receiver

unistrong rtk gps receiver

Product Description

Surveying Instrument GPS RTK Base and Rover Unistrong G970II PRO Gps Rtk Gps Rove GNSS GPSS RTK RECEIVER

Model		G970II Pro
GNSS	Channels	1408
	Signals	BDS: B1, B2, B3
		GPS: L1CA, L1P. L1C, L2P, L2C, L5
		GLOASS: G1,G2, P1, P2
		GALILEO: E1BC, E5a. E5b
		QZSS: L1CA. L2C. L5, L1C
		SBAS: L1CA, L5;
		L-Band
Accuracy	Static	H: 2.5 mm±1ppm , V: 5 mm±1ppm
	RTK	H: 8 mm±1ppm, V:15 mm±1ppm
	DGNSS	<0.5m
	ATLAS	8cm	/	/	8cm	8cm
System	Initialization Time	8s
	Initialization Reliable	99.90%
	Operating System	Linux
	Merrory	8GB, support expanable MisroSD
	Wifi	802.11 b/g/n
		V2.1+EDR/V4.1Dual,Class2
	E-Bubble	/	support	support	support	support
	Tilt Survey	/	support IMU Tilt Survey, no need calibration			IMU Tilt Survey 60°,Fusion Positioning/400Hz refresh rate
Datalink	Audio	support TTS audio broadcast
	UHF	Tx/Rx Internal Radio, 1W/2W adjustable
	Protocol	support GeoTalk,SATEL,PCC-GMSK,TrimTalk,TrimMark,SOUTH
	Network	4G-LTE, TE-SCDMA, CDMA(EVDO 2000), WCDMA, GSM(GPRS)
Physical	Interface	1TNC Radio Antenna, 15Pin(Power & RS232),1*7Pin (USB 81 RS232)
	Button	1 Power Button
	Indication Light	4 Indication Lights
	Size	Φ156mm * H 76mm
	Weight	1.2kg
Power supply	Battery capacity	7.2V, 24.5Wh(standard two batteries)
	Life Timer	Static Survey: 15 hours, Rover RTK survey: 12h
	External power source	DC 9-18V, with overvoltage protection
Environment	Work Temporature	-35℃ ~ +65℃
	Storage Temporature	-55℃ ~ +80℃
	waterproof&dustproof	IP67
	Humidity	100% anti-condensation

Certifications

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
