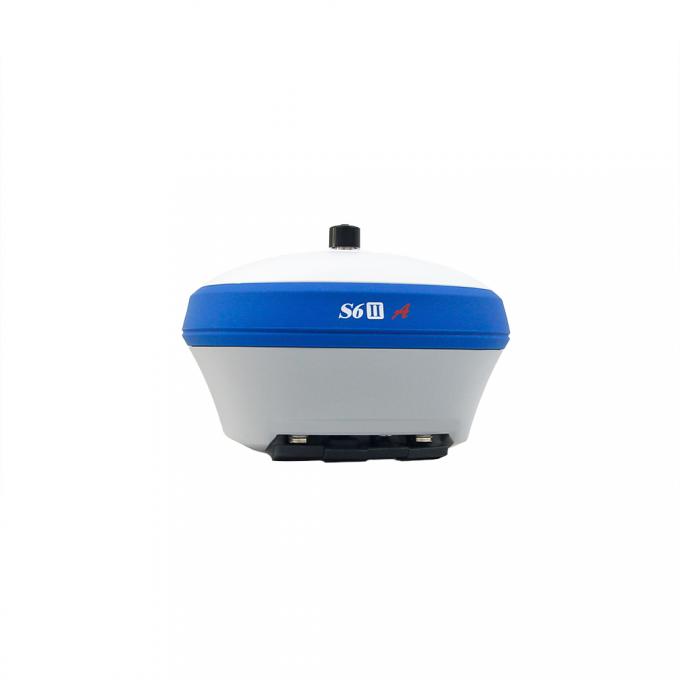

International Version Stonex S6II/S980 GPS GNSS With Google Function&Updatable Surpad Software Receiver RTK

Brand Name:	STONEX
Model Number:	S6II/S980
MOQ:	1 piece
Price:	$3,400.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver STONEX S6II/S980

Customized Support:

Channel:

1408 Channels

Transmitting Power:

0.5W, 1W, 2W Adjustable

Transmitting Speed:

9.6Kbps, 19.2Kbps

L1C/A, L1C,L2C, L2E, L5

Supports:

Internal Battery Life:

Static 12hours

Supply Ability:

1 ~ 30 day

Highlight:

stonex rtk gnss

stonex gnss rtk receiver

gps rtk gnss

Product Description

International Version Stonex S6II/S980 GPS GNSS With Google Function&Updatable Surpad Software Receiver RTK

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

Home > Products >

GNSS RTK Receiver

International Version Stonex S6II/S980 GPS GNSS With Google Function&Updatable Surpad Software Receiver RTK

All Category

International Version Stonex S6II/S980 GPS GNSS With Google Function&Updatable Surpad Software Receiver RTK

Brand Name:	STONEX
Model Number:	S6II/S980
MOQ:	1 piece
Price:	$3,400.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

STONEX

Model Number:

S6II/S980

Product Name:

RTK Receiver STONEX S6II/S980

Customized Support:

OEM

Channel:

1408 Channels

Transmitting Power:

0.5W, 1W, 2W Adjustable

Transmitting Speed:

9.6Kbps, 19.2Kbps

Gps:

L1C/A, L1C,L2C, L2E, L5

Supports:

WIFI

Internal Battery Life:

Static 12hours

Minimum Order Quantity:

1 piece

Price:

$3,400.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

stonex rtk gnss

stonex gnss rtk receiver

gps rtk gnss

Product Description

International Version Stonex S6II/S980 GPS GNSS With Google Function&Updatable Surpad Software Receiver RTK

FAQ

Tracking
Board:	Novatel OEM729
Channels:	1408
GPS:	L1C/A, L1C, L1P, L2C, L2P, L5
GLONASS:	L1C/A, L1P, L2C/A, L2P, L3
Galileo:	E1, E5a, E5b, ALTBOC, E6
BeiDou:	B1, B2, B3, ACEBOC
QZSS:	L1 C/A, L1C, L2C, L5, L6
IRNSS:	L5
SBAS:	L1, L5
Update Rate:	5 Hz
Operating System:	Linux
Memory:	32 GB
Positioning
Static Survey:	3 mm + 0.1 ppm RMS (Horizontal)
Static Survey:	3.5 mm + 0.4 ppm RMS (Vertical)
RTK (< 30 Km):	8 mm + 1 ppm RMS (Horizontal)
RTK (< 30 Km):	15 mm + 1 ppm RMS (Vertical)
Code Differential:	0.40 m RMS
SBAS Accuracy:	0.60 m
Internal UHF Radio
Model:	TRM 501
Type:	Tx – Rx
Frequency Range:	410 – 470 MHz
Frequency Range:	902.4 – 928 MHz
Channel Spacing:	12.5 KHz / 25 KHz
Transmission Power:	2-5 watt
Maximum Range:	> 5 km with 2 watt
Maximum Range:	> 10 Km with 5 watt
Physical
Size:	Φ151mm x 94.5mm
Weight:	1.50 Kg
Operating Temperature:	-40 °C to +65 °C
Storage Temperature:	-40 °C to +80 °C
Waterproof/Dustproof:	IP67
Shock Resistance:	Designed to endure a 2 m pole drop onto a concrete floor with no damage
Vibration:	Vibration resistant
Power Supply
Battery:	Rechargeable 7.2 V – 13.600 mAh
Voltage:	9 to 28 V DC external power input with over-voltage protection (5 pins Lemo)
Working Time:	Up to 10 hours
Charge Time:	Typically 4 hours

Tracking
Board:	Novatel OEM729
Channels:	1408
GPS:	L1C/A, L1C, L1P, L2C, L2P, L5
GLONASS:	L1C/A, L1P, L2C/A, L2P, L3
Galileo:	E1, E5a, E5b, ALTBOC, E6
BeiDou:	B1, B2, B3, ACEBOC
QZSS:	L1 C/A, L1C, L2C, L5, L6
IRNSS:	L5
SBAS:	L1, L5
Update Rate:	5 Hz
Operating System:	Linux
Memory:	32 GB
Positioning
Static Survey:	3 mm + 0.1 ppm RMS (Horizontal)
Static Survey:	3.5 mm + 0.4 ppm RMS (Vertical)
RTK (< 30 Km):	8 mm + 1 ppm RMS (Horizontal)
RTK (< 30 Km):	15 mm + 1 ppm RMS (Vertical)
Code Differential:	0.40 m RMS
SBAS Accuracy:	0.60 m
Internal UHF Radio
Model:	TRM 501
Type:	Tx – Rx
Frequency Range:	410 – 470 MHz
Frequency Range:	902.4 – 928 MHz
Channel Spacing:	12.5 KHz / 25 KHz
Transmission Power:	2-5 watt
Maximum Range:	> 5 km with 2 watt
Maximum Range:	> 10 Km with 5 watt
Physical
Size:	Φ151mm x 94.5mm
Weight:	1.50 Kg
Operating Temperature:	-40 °C to +65 °C
Storage Temperature:	-40 °C to +80 °C
Waterproof/Dustproof:	IP67
Shock Resistance:	Designed to endure a 2 m pole drop onto a concrete floor with no damage
Vibration:	Vibration resistant
Power Supply
Battery:	Rechargeable 7.2 V – 13.600 mAh
Voltage:	9 to 28 V DC external power input with over-voltage protection (5 pins Lemo)
Working Time:	Up to 10 hours
Charge Time:	Typically 4 hours
