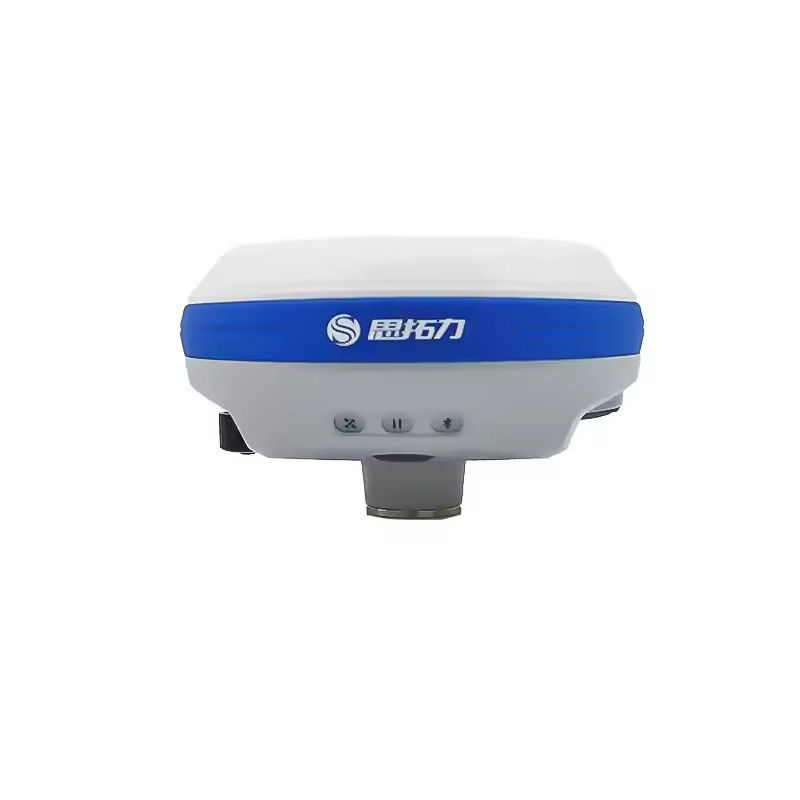

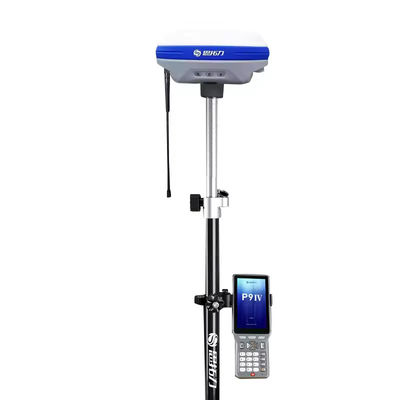

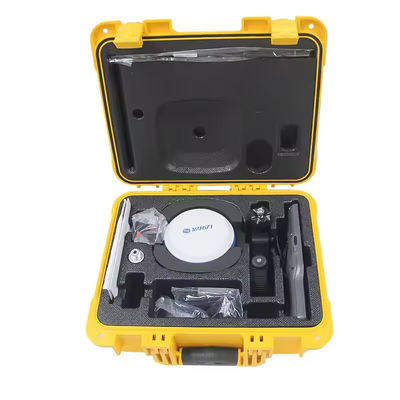

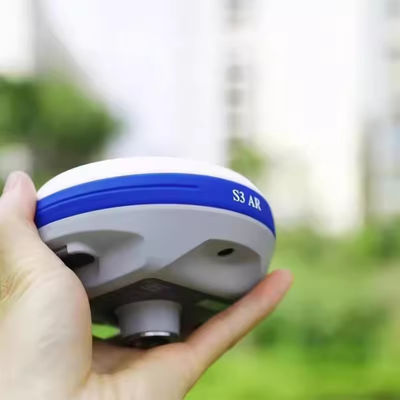

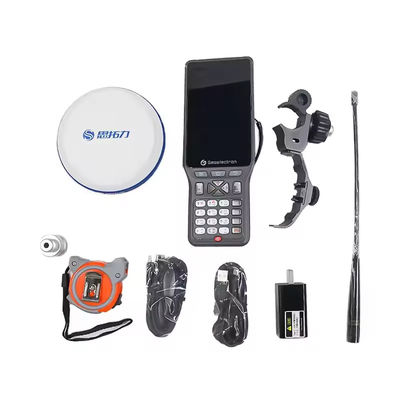

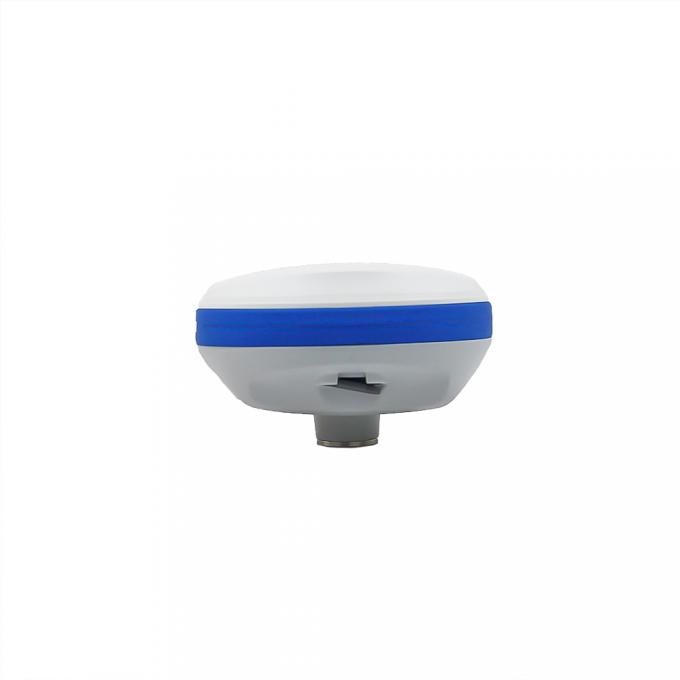

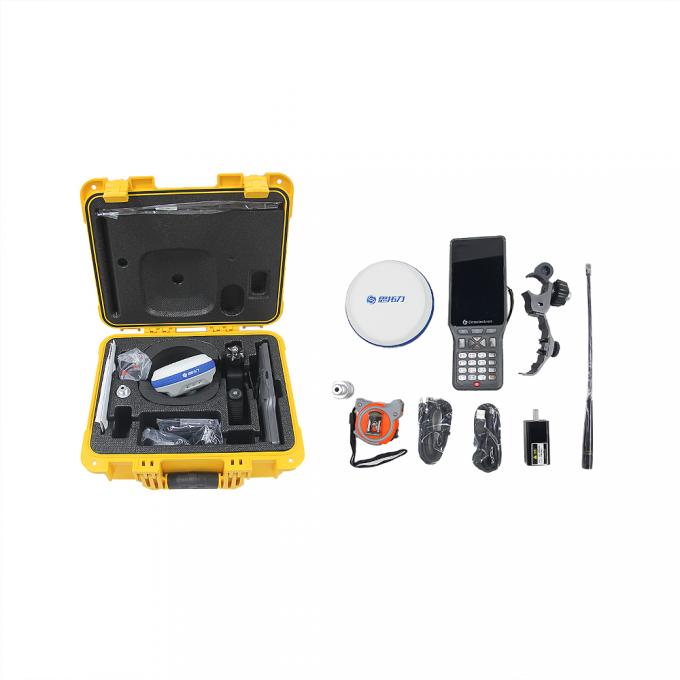

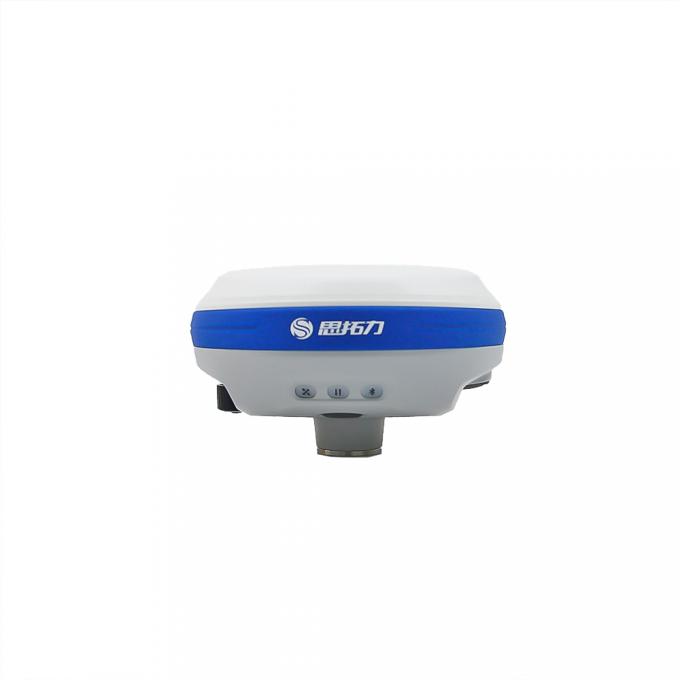

International Version STONEX S3 AR Gps Surveying Instruments GNSS Rover Station RTK

Brand Name:	STONEX
Model Number:	S3AR
MOQ:	1 piece
Price:	$1,400.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver STONEX S3 AR

Customized Support:

Channel:

1408 Channels

Transmitting Power:

0.5W, 1W, 2W Adjustable

Transmitting Speed:

9.6Kbps, 19.2Kbps

L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5

Working Range:

5km Typical, 8~10km Optimal

Internal Battery Life:

Static 12hours

Supply Ability:

1 ~ 30 day

Highlight:

stonex rtk gnss

stonex gnss rtk receiver

gps rtk gnss

Product Description

International Version STONEX S3 AR Gps Surveying Instruments GNSS Rover Station RTK

Overview

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

Products Details

Home > Products >

GNSS RTK Receiver

International Version STONEX S3 AR Gps Surveying Instruments GNSS Rover Station RTK

All Category

International Version STONEX S3 AR Gps Surveying Instruments GNSS Rover Station RTK

Brand Name:	STONEX
Model Number:	S3AR
MOQ:	1 piece
Price:	$1,400.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

STONEX

Model Number:

S3AR

Product Name:

RTK Receiver STONEX S3 AR

Customized Support:

OEM

Channel:

1408 Channels

Transmitting Power:

0.5W, 1W, 2W Adjustable

Transmitting Speed:

9.6Kbps, 19.2Kbps

Gps:

L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5

Working Range:

5km Typical, 8~10km Optimal

Internal Battery Life:

Static 12hours

Minimum Order Quantity:

1 piece

Price:

$1,400.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

stonex rtk gnss

stonex gnss rtk receiver

gps rtk gnss

Product Description

International Version STONEX S3 AR Gps Surveying Instruments GNSS Rover Station RTK

Overview

FAQ

System Configuration		Environmental Performance
Operating system	Linux	Operating temperature	-30℃ ~ +65℃
Built-in storage	8GB, supports MicroSD storage expansion	Storage Temperature	-40℃ ~ +80℃
Bluetooth	V2.1 + EDR/V4.0 dual-mode, CIass2	Waterproof and dustproof	IP67
Bluetooth	V2.1 + EDR/V4.0 dual-mode, CIass2	Waterproof and dustproof	IP67
WIFI	802.11b/g/n	UHF radio station	TX and RX(1w),3-5 km typically2
Voice	TTS voice broadcast	Operating frequency:	410-470mhz
Electron bubble	Support
Electron bubble	Support
Satellite Characteristics
Satellite Channel	1408	GLONASS	G1P1,G2P2,G1OC,G2OC,G3OC
BDS-2	B1i,B2i,B3i	Galileo	E1BC,E5a,E5b,E5ALTBOC,E6BC
BDS-3	B1C,B2a,B2b,ACEBOC	QZSS	L1CA,L2C,L5,L1C,LEX
GPS	L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5	L-Band	Support
SBAS	SBAS WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS
Inertial navigation IMU
Tilt measurement	Supported	Tilt accuracy	60 °/2cm (horizontal)
Power supply characteristics		Physical indicators
Battery capacity	7.2V ,10000mAh	Weight	550g
External Power Supply	9-28VDC with overvoltage protection	Size	120mm*H72.5mm

System Configuration		Environmental Performance
Operating system	Linux	Operating temperature	-30℃ ~ +65℃
Built-in storage	8GB, supports MicroSD storage expansion	Storage Temperature	-40℃ ~ +80℃
Bluetooth	V2.1 + EDR/V4.0 dual-mode, CIass2	Waterproof and dustproof	IP67
Bluetooth	V2.1 + EDR/V4.0 dual-mode, CIass2	Waterproof and dustproof	IP67
WIFI	802.11b/g/n	UHF radio station	TX and RX(1w),3-5 km typically2
Voice	TTS voice broadcast	Operating frequency:	410-470mhz
Electron bubble	Support
Electron bubble	Support
Satellite Characteristics
Satellite Channel	1408	GLONASS	G1P1,G2P2,G1OC,G2OC,G3OC
BDS-2	B1i,B2i,B3i	Galileo	E1BC,E5a,E5b,E5ALTBOC,E6BC
BDS-3	B1C,B2a,B2b,ACEBOC	QZSS	L1CA,L2C,L5,L1C,LEX
GPS	L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5	L-Band	Support
SBAS	SBAS WAAS, GAGAN, MSAS, EGNOS, SDCM, BDS
Inertial navigation IMU
Tilt measurement	Supported	Tilt accuracy	60 °/2cm (horizontal)
Power supply characteristics		Physical indicators
Battery capacity	7.2V ,10000mAh	Weight	550g
External Power Supply	9-28VDC with overvoltage protection	Size	120mm*H72.5mm
