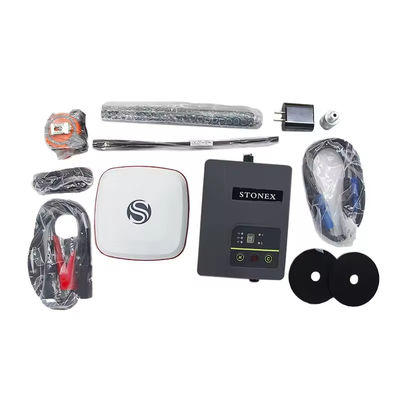

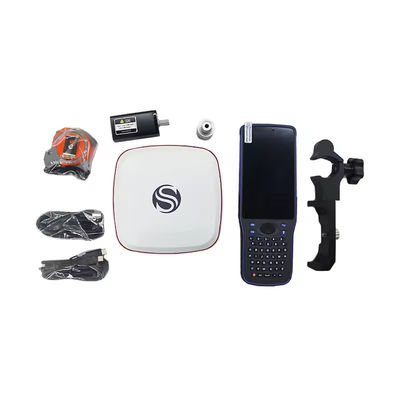

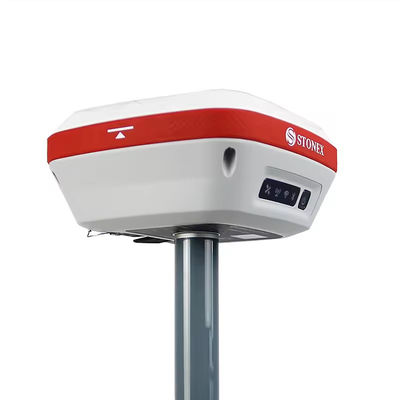

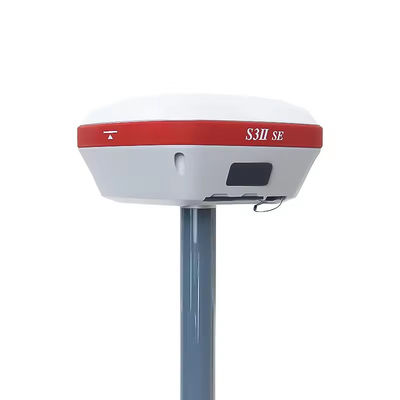

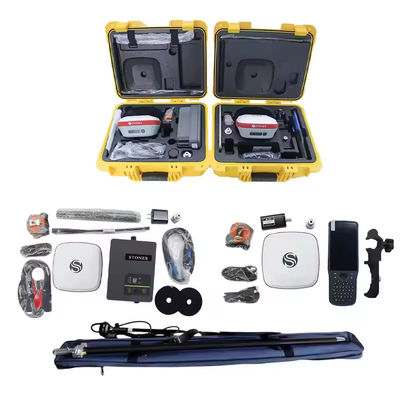

International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

Brand Name:	STONEX
Model Number:	S3II SE
MOQ:	1 piece
Price:	$3,600.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver STONEX S3II SE

Customized Support:

Channel:

800 Channels

Battery:

Built-in Smart Lithium Battery, 6800mAh, 7.2V

Weight:

1100g

Size:

140mm×140mm×71mm

Built-in Storage:

Onboard 8G

External Radio:

5W/35W Adjustable

Supply Ability:

1 ~ 30 day

Highlight:

stonex rtk gnss

stonex gnss rtk receiver

gps rtk gnss

Product Description

International Version GNSS RTK System Base And Rover Station STONEX S3II SE GPS Surveying Instruments

project	subproject	describe
GNSS	number of channels	800
performance	tracking feature	BDS-2: B1, B2, B3
		BDS-3: B1C, B2a, B2b, ACEBOC
		GPS: L1C/A, L1C, L1P, L2C, L2P, L5
		GLONASS: G1,G2,G3
		Galileo: E1, E5a, E5b, AltBOC, E6
		QZSS:L1C/A,L1C, L2C, L5, LEX
	data output	NMEA0183, NMEA2000, Crescent binary
	Differential output	RTCM SC-104(SBAS/Beacon) has its own differential format ROX,
	Differential output	RTCM2.x, RTCM3.x, CMR, CMR+
Accuracy Index	Static measurement	Level: ±(2.5+0.5×10-6D) mm
	Static measurement	Vertical: ±(5+0.5×10-6D) mm
	RTK measurement	Level: ±(8+1×10-6D) mm
	RTK measurement	Vertical: ±(15+1×10-6D) mm
Inertial navigation measurement (need to be activated separately)	Compensation accuracy	8mm+0.3mm/°tilt (<2cm within 30°)
	Compensation position	0~70°
	Inertial navigation update rate	200Hz
System platform	operating system	Linux
	Built-in storage	Onboard 8G
		V2.1+EDR / V4.0 Dual Mode, Class2
	Wi-Fi	802.11 b/g/n
Global Radio	Protocol	TrimTalk, TrimMaskⅢ, PCCEOT
	Protocol	Geotalk, Hitarget
	frequency	410-470MHz
	number of channels	7+2400 (7 fixed channels, 2400 customizable channels)
	external radio	5W/35W adjustable
Electrical properties	Battery	Built-in smart lithium battery, 6800mAh, 7.2V
Electrical properties	Input voltage	9~28V DC
Human-computer interaction	button	The power button is used to turn the host on and off.
Human-computer interaction	button	Short press once to broadcast the current working mode and status.
Data interface	TNC interface	Connecting the built-in radio antenna
	5-pin interface	Used to connect external power supply and external radio.
	Type-C	For direct charging, data transfer.
physical index	size	140mm×140mm×71mm
physical index	weight	1100g
Environmental performance	Operating temperature	-30℃~+70℃
	storage temperature	-40℃~+80℃
	Waterproof and dustproof	IP68
	Anti-drop	2 meters drop with the pole (concrete hard ground)
	humidity	Resist 99% condensation


project	subproject	describe
Handbook basic parameters	model	P9Ⅲ
	operating system	Android 9
	processor	Qualcomm octa-core 64-bit
	RAM+ROM	2GB high-speed DDR3+16GB
	external storage	Maximum support 512GB SD expansion
	sensor	Electronic Compass, Electronic Bubble, Gravity Sensor
	Camera	13 million autofocus camera
	mobile network	Mobile, Telecom, Unicom 4G full Netcom
	WiFi/	802.11b/g/n,4.1+ LE
	Built-in battery	6000mAh, 3.8V, 22.8Wh
	Protection class	IP67
	fall	Withstands a 1.2-meter drop from a hard floor
	operating temperature	-30℃~+60℃
	storage temperature	-40℃~+80℃

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
