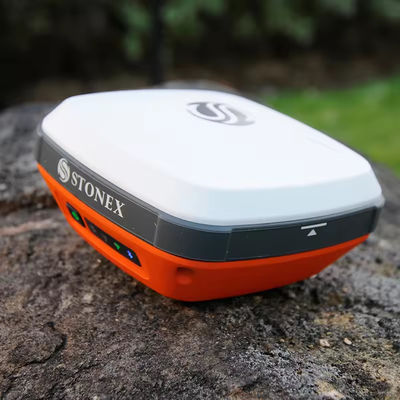

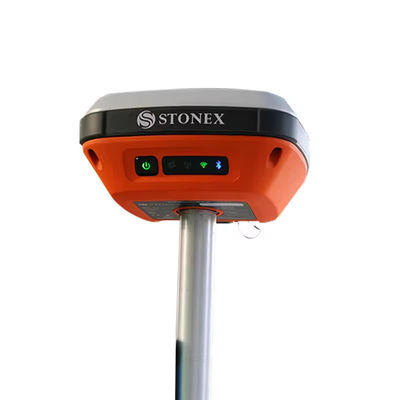

International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments
  • name
  • name
  • name
  • name
  • name

International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments

Brand Name: STONEX
Model Number: S3A/S850
MOQ: 1 piece
Price: $3,000.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
RTK Receiver STONEX S3A/S850
Customized Support:
OEM
Channel:
1408 Channels
Internal Battery Life:
Static 12hours
GPS:
L1 C/A,L2E,L2C,L5
GLONASS:
L1 C/A, L1p, L2C, L2P
BEIDOU:
B1 B2. B3
GALILEO:
E1, E5a, E5b
Supply Ability:
1 ~ 30 day
Highlight:

stonex rtk gnss

,

stonex gnss rtk receiver

,

gps rtk gnss

Product Description

International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments



Overview

International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 0

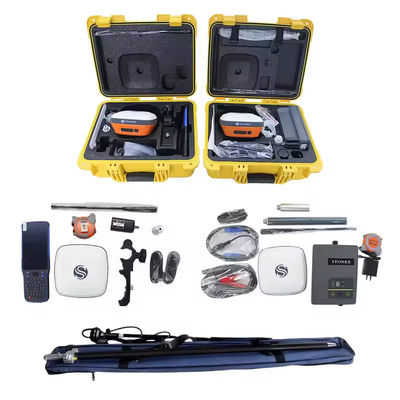

Gps Handheld GPS Gnss Stonex S3A/S850A GPS RTK Gnss External Radio

International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 1





Product Details

Satellite Tracked GPS: L1 C/A, L1C, L1p, L2C, L2P, L5
GLONASS: L1 C/A, L1p, L2C, L2P
BEIDOU: B1 B2. B3
GALILEO: E1, E5a, E5b
QZSS: L1 C/A, L1C, L2C, L5
SBAS: L1, L5
L - Band Atlas H 10/ H30 /Basic
channels 1408
Position Rate 5 Hz, optional 20 Hz
signal reacquisition <1 sec
RTK Signal Initialization Typically<10 sec
Hot Start Typically<15 sec
initialization Reliability > 99.9%
Internal Memory 8 GB
POSITIONINGT
HIGH PRECISION STATIC SURVEYING
Horizontal 2.5 mm+1 ppm RMS
vertical 5 mm+1 ppm RMS
CODE DIFFERENTIAL POSITIONING
Horizontal < 0.5 m RMS
Vertical < 1.0 m RMS
SBAS POSITIONING
Horizontal < 0.60 m RMS
Vertical <1.20 m RMS
REAL TIME KINEMATIC (< 30 Km)- NETWORK SURVEYING
Fixed RTK Horizontal 8 mm+1 ppm RMS
Fixed RTK Vertical 15mm+1 ppm RMS
ITEGRATED GNSS ANTENNA
High accuracy four constellation micro-strip antenna, zero phase center. with internal multipath suppressive board
INTERNAL RADIO
Type Tx - Rx
frequency Range 410-470MHz
Channel Spacing 12.5 KHZ /25 KHZ
Maximum Range 3-4 Km in urban environment,
up to 10 Km with optimal conditions
COMMUNICATION
Blue Tooth 2.0 Class2 / v4.1 LE
Wi-FI 802.11b/g/n
  To upgrade the software, manage the status and settings, data download, etc. via smart phone, tablet or aother internet enabled electronic device
Web UI
Reference outputs RTCM 2.1,2.3,3.0,3.1,3.2,3.3
CMR CMR+
Navigation outputs GGA, ZDA, GSA GSV GST, VTG, RMC, GLL
POWER SUPPLY
Battery rechargeable 7.2V 6800mh
Voltage 9 to 28 VDC external power input with over-voltage protection (5 pins Lemo)
Working Time Up to 10 hours
Charge Time Typically 4 hours
PHYSICAL SPECIFICATION
Dimensions 146 mm *146mm*76mm
Weight 1.2Kg
Operating Temperature 30C to 65C
Storage Temperature 40 C to 80C
Waterproof/Dustproof IP67
Shock Resistance Designed to endure to a 2 m pole drop on concrete floor with no damage
Vibration Vibration resistant

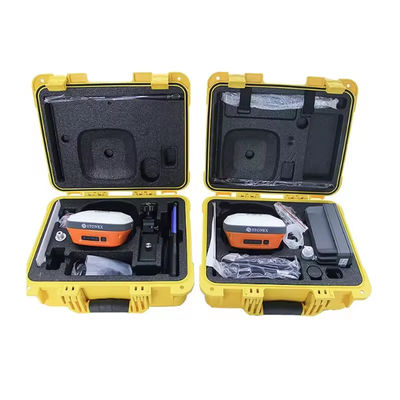

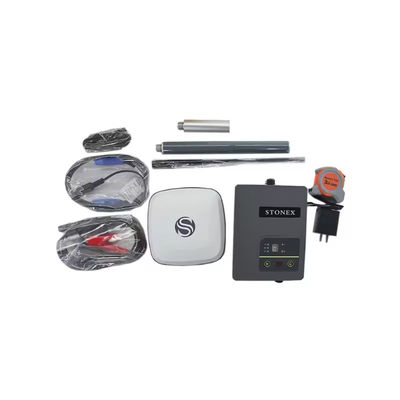

Product Display

International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 2International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 3



Why Choose Us
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 4
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 5
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 6
Customer Photos
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 7
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 8

Certifications
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 9
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 10

Company Profile
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 11


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 12

Packing & Delivery
International Version GNSS RTK System Base and Rover Station STONEX S3A/S850 GPS Surveying Instruments 13
