International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments
  • name
  • name
  • name
  • name
  • name

International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments

Brand Name: STONEX
Model Number: S1
MOQ: 1 piece
Price: $1，800.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
RTK Receiver STONEX S1
Customized Support:
OEM
Channel:
800 Channels
Storage Temperature::
-40℃ ~ +80℃
GPS:
L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
GLONASS:
G1P1,G2P2,G1OC,G2OC,G3OC
Bluetooth:
V2.1 + EDR/V4.0 Dual-mode, CIass2
GALILEO:
E1BC,E5a,E5b,E5ALTBOC,E6BC
Supply Ability:
1 ~ 30 day
Highlight:

stonex rtk gnss

,

stonex gnss rtk receiver

,

gps rtk gnss

Product Description



International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments



Product Description

High Accuracy IP68 GPS Stonex S900/S1 Handheld rover RTK GNSS Price S1



S1 inertial navigation RTK, equipped with a full-size high-precision positioning board based on the "Tianqin" chip, fully supports Beidou 3 for full-frequency point signal tracking of the whole constellation; Test immediately upon startup; the fourth generation inertial navigation tilt measurement technology (significantly improve the lofting efficiency.

1.Process measurement and efficiency assurance
S1 inertial navigation RTK is a sharp tool for measuring the range, with full functions, stable performance and reliable quality. There is also a tailored professional measurement software SurPAD 4.0, which can meet the requirements of various lofting operations, such as road construction, power line survey, site leveling control, CAD application, railway lofting, etc.

2.Hard core technology · efficient network
Five-star 16-frequency, 800 channels, full-frequency signal tracking of the whole constellation, fully supporting BeiDou 3;
410 ~ 470MHz full frequency compatible with universal radio stations;
New 6.04 firmware, stronger anti-interference, higher precision, better performance, efficient fixed solution;
Any switching of five data links (WiFi,eSIM,SIM, radio, Bluetooth);
IP68 Army grade waterproof and dustproof.

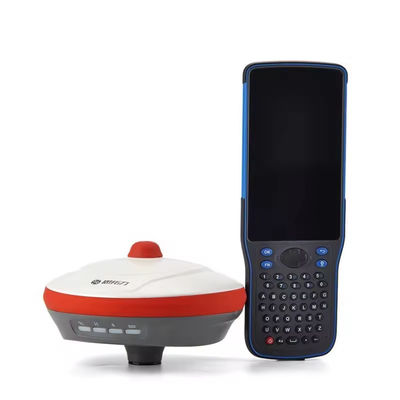

3.Full keyboard Android hand book
The newly launched Android keyboard book for professional surveying and mapping users is more in line with the overall design of
the book. At the same time, it is in the operating system, hardware configuration, software optimization and other aspects have
been greatly improved.

4.Fourth generation inertial navigation tilt measurement
Free from electromagnetic interference, without the need for bubble centering, the carrying rod is measured immediately, walking
lofting, and the operation efficiency is improved by 50%



Specification

System Configuration
Environmental Performance
Operating system
Linux
Operating temperature
-30℃ ~ +65℃
Built-in storage
8GB, supports MicroSD storage expansion
Storage Temperature
-40℃ ~ +80℃
Bluetooth
V2.1 + EDR/V4.0 dual-mode, CIass2
Waterproof and dustproof
IP68

WIFI
802.11b/g/n
UHF radio station
Built-in receiving station
External launch:
Voice
TTS voice broadcast
Operating frequency:
410-470mhz
Electron bubble
Support


Satellite Characteristics
Satellite Channel
800
GLONASS
G1P1,G2P2,G1OC,G2OC,G3OC
BDS-2



B1i,B2i,B3i
Galileo
E1BC,E5a,E5b,E5ALTBOC,E6BC
BDS-3
B1C,B2a,B2b,ACEBOC
QZSS
L1CA,L2C,L5,L1C,LEX
GPS
L1C/A,L1C,L1P(Y),L2C,L2P(Y),L5
L-Band
Support
Inertial navigation IMU
Tilt measurement
Supported
Tilt accuracy
60 °/2cm (horizontal)
Power supply characteristics
Physical indicators
Battery capacity
Built-in lithium battery, 7.2v/5200mAh
Weight
920g
External Power Supply
9-28VDC with overvoltage protection
Size
Φ152mmx 92mm

Product Description
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 0
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 1
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 2
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 3
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 4
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 5
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 6
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 7
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 8
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 9
Why Choose Us
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 10
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 11
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 12
Customer Photos
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 13
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 14

Certifications
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 15
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 16

Company Profile
International Version GNSS RTK System STONEX S1 Handheld Rover GPS Surveying Instruments 17


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
