International Version GNSS RTK System TIANYU X1 Base and Rover Station RTK GPS survey H6 Handheld Controller

Brand Name:	TIANYU
Model Number:	X1
MOQ:	1 piece
Price:	$2,600.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver TIANYU X1

Customized Support:

OEM

Channel:

1598 Channels

Material:

Magnesium Alloy

GPS:

L1C/A,L2P,L2C,L5,L1C*

Power:

Lithium Battery

Color:

Blue

Frequency:

410-470MHz

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

international version rtk gnss

Product Description

International Version GNSS RTK System TIANYU X1 Base and Rover Station RTK GPS survey H6 Handheld Controller

Overview

Products Description

configure		Detailed indicators
Measuring performance	Signal tracking	1598aisle
		BDS-2:B1I,B2I,B3I
		BDS-3:B1I,B3I,B1C,B2a,B2b
		GPS: L1C/A, L2P, L2C, L5, L1C*
		GLONASS: G1,G2,G3*
		Galileo:E1,E5b,E5a,E5 AltBoc,E6c
		SBAS:L1C/A,L5*
		QZSS:L1,L2C,L5I
		RNSS:L5*
	GNSS features	Positioning output frequency 1Hz~50Hz
		Initialization time is less than 10 seconds
		Initialization reliability >99.99%
		Full constellation reception technology capable of supporting signals from all current and planned GNSS constellations
		Highly reliable carrier tracking technology to improve carrier accuracy and provide high-quality original observation data
		Intelligent dynamic sensitivity positioning technology, adapt to various environmental changes, adapt to harsh, long-distance positioning environment
		High-precision positioning processing engine
positioning accuracy	Code Differential GNSS Positioning	Horizontal: 0.25 m + 1 ppm RMS
		Vertical: 0.50 m + 1 ppm RMS
		SBAS differential positioning accuracy: typical <5m 3DRMS
	Static measurement accuracy	Plane: ±(2.5mm+0.5×10-6D)
		Elevation: ±(5mm+0.5×10-6D)
		(D is the measured baseline length)
	RTK measurement accuracy	Plane: ±(8mm+1×10-6D)
		Elevation: ±(15mm+1×10-6D)
		(D is the measured baseline length)
operating system/	operating system	Linux
User interaction	button	Two-button operation, convenient and quick
	LCD screen	1.3 inch OLED color screen
	indicator light	Four indicator lights
	web interaction	Built-in Web UI management background, support WiFi and USB modes to access the receiver's built-in Web UI management page, monitor the host status in real time, and configure the host freely.
	voice	iVoice intelligent voice technology, intelligent status broadcast, voice operation prompt;
	voice	Support Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish by default; support voice customization
	Secondary development	Provide secondary development package, open OpenSIC observation data format and interactive interface definition for secondary development
	Data cloud service	Web version cloud service management platform, support online registration and other remote management, data interaction and other services
hardware	size	16616696.5
	weight	≈1.0KG
	material	magnesium alloy
	temperature	Operating temperature: –25 °C to +65 °C
	temperature	Storage temperature: –40 °C to +80 °C
	humidity	100% resistant to condensation
	Protection class	Waterproof: 1m immersion, IP68
	Protection class	Dustproof: Completely prevent dust from entering, IP68
	shockproof	Resist 2 meters drop with the pole
electric	power supply	9-28V wide voltage DC design, with overvoltage protection
	Battery	High capacity built-in battery 10000mAh 7.4V
	Power Solutions	Routine operations meet 16 hours of battery life, support rod-shaped battery rod power supply, and can support other transformer power supply systems,
	Power Solutions	(Provide 7*24h continuous working power solution)
communication	I/O ports	5PIN LEMO external power interface + RS232
		Type-C interface supports charging, power supply and data transmission
		1 radio data link antenna interface
		SIM card slot (medium card)
	radio modem	Built-in transceiver integrated radio, the typical operating distance is 15km
		Support network relay, radio relay mode
		Operating frequency 410-470MHz
		Communication protocol: Instant, TrimTalk450S, ZHD,, HUACE,Satel
	cellular	Intelligent PPP dial-up technology based on Linux platform, automatic real-time dial-up, continuous online during the work process, equipped with 4G full Netcom high-speed network communication module, compatible with various CORS system access. The host has a built-in network antenna, which makes the work easier. Adopt eSIM card technology, embedded eSIM chip, no need to insert a card, provide network resources in real time, ensure the continuous online operation of the host network (optional)
		BLE 4.0 standard, support Android system mobile phone connection; 2.1 + EDR standard
	NFC wireless communication	Using NFC wireless communication technology, the handbook and the host can be automatically paired with by touching them (the handbook is also required to be equipped with an NFC wireless communication module)
WIFI	standard	802.11b/g/n standard
	WIFI hotspot	With WIFI hotspot function, any smart terminal can be connected to the receiver, and the receiver function can be richly customized;
	WIFI hotspot	Data collectors such as industrial handbooks and smart terminals can transmit data with the receiver through WIFI
	WIFI data link	The receiver can be connected to WIFI to broadcast or receive differential data through WIFI
Data storage/transfer	data storage	8G built-in solid-state memory, support 32G external expansion; automatic cycle storage (the earliest data will be automatically deleted when the storage space is not enough); support external USB memory for data storage; rich sampling interval, support up to 50Hz original observation data collection
	data transmission	One-key smart copy directly exports the static data of the host through an external USB memory; plug-and-play USB data transmission method; HTTP download
	Data Format	Static data format: STH, Rinex2.01 and Rinex3.02 and other formats
	Data Format	Differential data format: CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 input and output; GPS output data format: NMEA 0183, PJK plane coordinates, binary code, Trimble GSOF;
Inertial Navigation System / Sensors	electronic bubble	Built-in sensor, the handbook software can display electronic bubbles, and check the leveling condition of the centering rod in real time
	Shake tilt measurement	Core patented algorithm, by swing host, the coordinates are automatically corrected according to the inclination direction and angle of the centering rod.
	Inertial navigation tilt measurement (optional)	The built-in IMU inertial measurement sensor supports the inertial navigation tilt measurement function to automatically correct the coordinates according to the tilt direction and angle of the centering rod.
	Temperature Sensor	Built-in temperature sensor, using intelligent frequency conversion temperature control technology, real-time monitoring and adjustment of the host temperature

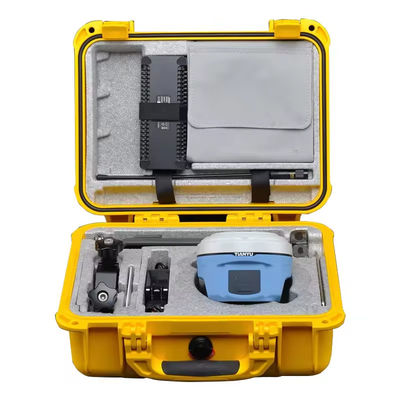

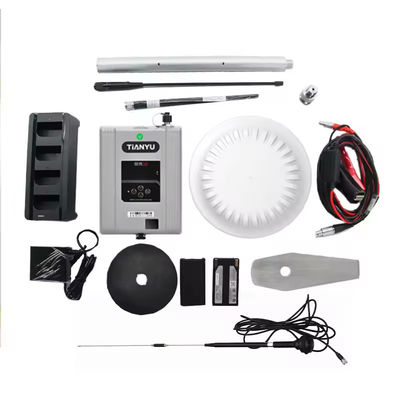

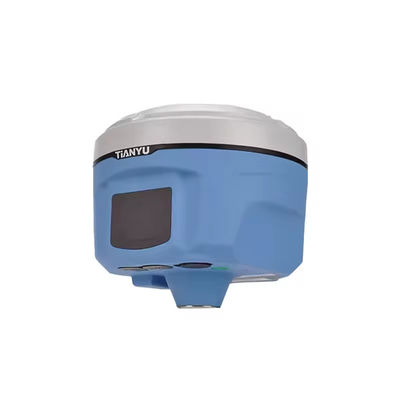

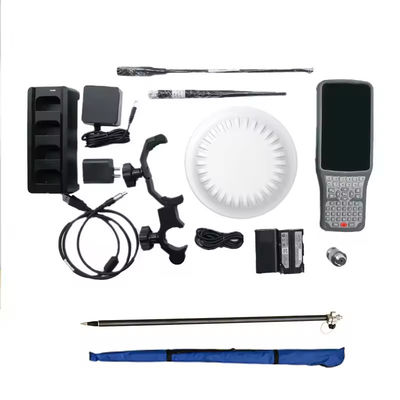

Product Display

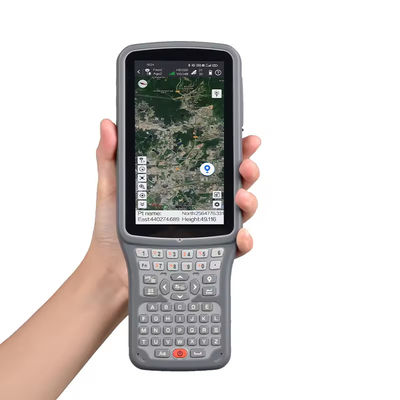

Data Collector

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
