International Version GNSS RTK System TIANYU C9 Base and Rover Station RTK GPS survey H6 Handheld Controller

Brand Name:	TIANYU
Model Number:	C9
MOQ:	1 piece
Price:	$1,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver TIANYU C9

Customized Support:

OEM

Channel:

1598 Channels

Material:

Magnesium Alloy

Internal Battery Life:

Static 18hours

Power:

Lithium Battery

Color:

White

Frequency:

410-470MHz

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

international version rtk gnss

Product Description

International Version GNSS RTK System TIANYU C9 Base and Rover Station RTK GPS survey H6 Handheld Controller

Overview

Products Description

allocation		Detailed indicators
Measurement performance	Signal tracking	1598 channels BDS-2:B1I,B2I,B3I BDS-3:B1I,B3I,B1C,B2a,B2b GPS: L1C/A,L2P,L2C,L5,L1C* GLONASS: G1,G2,G3* Galileo:E1,E5b,E5a,E5 AltBoc,E6c SBAS:L1C/A,L5* QZSS:L1 ,L2C, L5 IRNSS:L5*
	GNSS characteristics	Positioning output frequency 1Hz~20Hz
		The initialization time is less than 10 seconds
		Initialization reliability>99.9%
		All constellation reception technology, capable of supporting GNSS constellation signals from all current and planned sources
		Reliable carrier tracking technology improves carrier accuracy and provides high-quality raw observation data
		Intelligent dynamic sensitivity positioning technology, adaptable to various environmental changes and harsh, long-distance positioning environments
positioning accuracy	Code differential GNSS positioning	level:0.25 m+1 ppm RMS
		Vertical:0.50 m + 1 ppm RMS
		SBAS differential positioning accuracy: typical
	Static measurement accuracy	Plane: ± (2.5mm+0.5 × 10-6D) (D is the measured baseline length)
	Static measurement accuracy	Elevation: ± (5mm+0.5 × 10-6D) (D is the measured baseline length)
	RTK measurement accuracy	Plane: ± (8mm+1 × 10-6D) (D is the measured baseline length)
	RTK measurement accuracy	Elevation: ± (15mm+1 × 10-6D) (D is the measured baseline length)
ins	Inertial tilt measurement	Built in IMU inertial measurement sensor, supporting inertial tilt measurement function, automatically correcting coordinates based on the tilt direction and angle of the center pole.
	IMU update rate	200HZ
	Tilt angle	0°～60°
	Tilt compensation accuracy	1.8-meter pole; RMS: 8 mm+0.7 mm/° tilt (tilt is the tilt angle)
Operating system/ User interaction	operating system	Linux
	Keys	Power button
	Indicator light	3 indicator lights+battery display light (at the bottom of the instrument): data light, Bluetooth light, power light (button position)
	Web interaction	Built in Web UI management backend, supporting Wi Fi and USB mode access to the receiver's built-in Web UI management page, real-time monitoring of host status, and free configuration of hosts.
	speech	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default;
hardware	size	131mm*80mm
	weight	800g
	material quality	magnesium alloy
	temperature	Working temperature: -45 ° C to+75 ° C
	temperature	Storage temperature: -55 ° C to+85 ° C
	humidity	Anti 100% condensation
	Protection level	IP68
	Shockproof	Resistance to 2 meters of pole drop
electrical	source	6-18V wide voltage DC design with overvoltage protection
electrical	battery	Built in 6800mAh high-performance lithium battery 7.4V; Homework meets 18 hours of battery life
Realistic layout	pixel	2 million
Realistic layout	Field of view angle	75°
communication	I/O ports	TYPE-C interface
	I/O ports	Radio antenna interface
	Realistic layout	Built in receiver station
		Working frequency: 410-470MHz
		Communication protocol: Farlink
	Bluetooth	BT4.2 (BR/EDR+BLE) Bluetooth standard
	NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (the manual also needs to be equipped with NFC wireless communication module)
WIFI	standard	802.11b/g/n standard
	WIFI hotspot	Equipped with WIFI hotspot function, any intelligent terminal can access the receiver, providing rich personalized customization of receiver functions;
	WIFI hotspot	Industrial notebooks, intelligent terminals, and other data collectors can transmit data to the receiver via WIFI
	WIFI data link	The receiver can be connected to WIFI for differential data broadcasting or reception
Data storage/transmission	data storage	Built in 4GB solid-state storage, rich sampling intervals, and support for raw observation data collection up to 20Hz
	data transmission	Supports data transfer such as USB, FTP download, HTTP, etc
	data format	Static data formats: various formats such as Southern STH, Rinex2.01, and Rinex3.02
		Differential data format: RTCM3.0, RTCM3.2 input and output
		GPS output data format: NMEA 0183, PJK plane coordinates, binary code
		Network mode support: VRS, FKP, MAC, supports NTRIP protocol
sensor	temperature sensor	Built in temperature sensor, using intelligent variable frequency temperature control technology, real-time monitoring and adjustment of host temperature

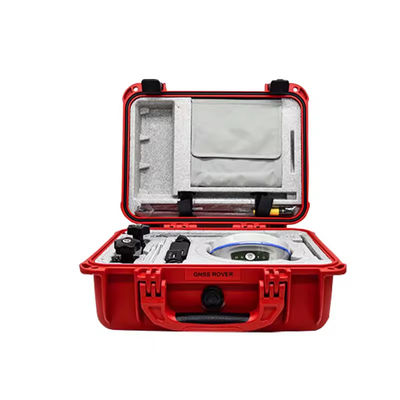

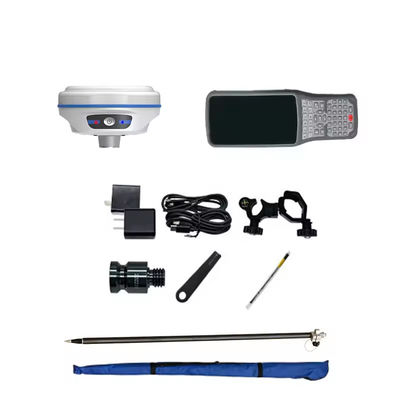

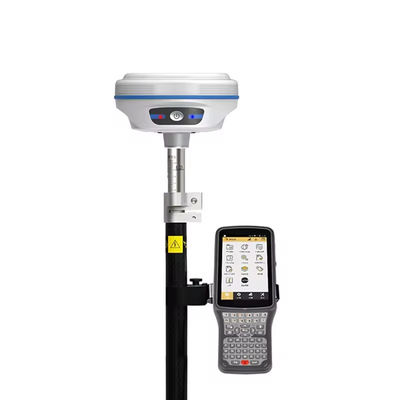

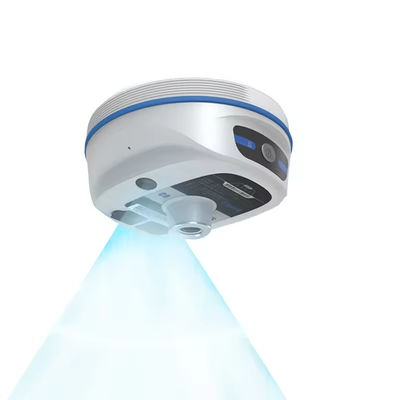

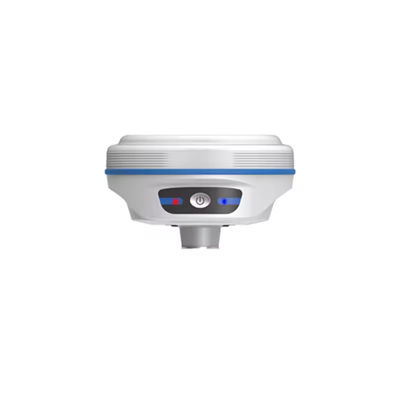

Product Display

Data Collector

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
