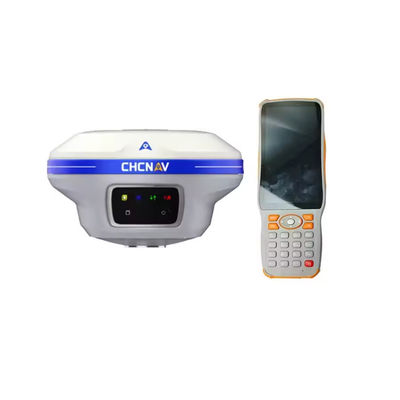

GNSS GPS RTK New Model Video CHCNAV i89 / CHC X15 and 0-60 Degree Tilt Survey IMU Test Instruments

Brand Name:	CHCNAV
Model Number:	i89
MOQ:	1 piece
Price:	$4,000.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver CHCNAV I89/X15

Customized Support:

OEM

Channel:

1408 Channels

GPS:

L1C/A,L1C,L2C,L2P,L5

GLONASS:

G1,G2,G3

Galileo:

E1,E5a,E5b,E6*

SBAS:

L1C/A*

QZSS:

L1C/A,L1C,L2C,L5

Supply Ability:

1 ~ 30 day

Highlight:

chcnav gnss gps rtk

chcnav rtk gnss gps

i89 gnss gps rtk

Product Description

GNSS GPS RTK New Model Video CHCNAV i89 / CHC X15 and 0-60 Degree Tilt Survey IMU Test Instruments

Overview

Product Description

Specification

item	value
Warranty	Other
Customized support	OEM
Place of Origin	China

Product parameters DINGSHENG

Product parameters CHCNAV X15/i89
Channels	1408 channels
GPS	L1C/A,L1C,L2C,L2P,L5
GLONASS	G1,G2,G3
Galileo	E1,E5a,E5b,E6*
SBAS	L1C/A*
QZSS	L1C/A,L1C,L2C,L5
IRNSS	L5*
BDS	B1I,B2I,B3I,B1C,B2a,B2b*
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS
	Vertical: 15 mm + 1 ppm RMS
	Initialization time: <10 s
	Initialization reliability: >99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS
Post-processing kinematics (PPK)	Vertical: 5 mm + 1 ppm RMS
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS
Post-processing static	Vertical: 5 mm + 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS
Code differential	Vertical: 0.8 m RMS
Autonomous	Horizontal: 1 m RMS
Autonomous	Vertical: 1.5 m RMS
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to first fix	Cold start: < 45 s
	Hot start: < 10 s
	Signal re-acquisition: < 2s
IMU update rate	200 Hz
Tilt angle	0-60°
RTK tilt -compensated	Additional horizontal pole-tilt
	uncertainty typically less than
	10 mm + 0.7 mm/° tilt
Hardware
Size (L x W x H)	133.5mm*80mm
Weight	0.73 kg (1.60 lb)
Front panel	4 LED, 2 physical buttons
Environment	Operating: -40°C to +65°C
	(-40°F to +149°F)
	Storage: -40°C to +85°C
	(-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof,protected from temporary immersion to depth of 1 m
Shock	Survive a 2-meter pole drop
Tilt sensor	Calibration-free IMU for pole-tilt compensation.
Tilt sensor	Immune to magnetic disturbances.E-Bubble leveling
Communication
Wi-Fi	802.11 b/g/n, access point mode
Bluetooth	V4.2
Others	NFC
Ports	1 x USB Type-C port(external power, data download, firmware update)
Ports	1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Tx/Rx:
	410 -470 MHz
	Transmit Power: 0.5 W, 1W
	Protocol: CHC, Transparent,
	TT450, Satel
	Link rate: 9,600 bps to 19,200 bps
Data formats	RTCM 2.x, RTCM 3.x,
	CMR input /output
	HCN, HRC, RINEX 2.11, 3.02
	NMEA 0183 output
	NTRIP Client, NTRIP Caster
Data storage	8 GB internal memon
Electrical
Power consumption	Typical 4 W (depending on user settings)
Li-ion battery capacity	Built-in non-removable battery 6800 mAh, 7.4 V
Operating time on internal battery	UHF I4G RTK Rover: up to 14.5 h UHF RTK Base: up to 6.5 h Static: up to 18 h
Certifications
CE Mark; FCC Part 15 Subpart B Class B; NGS Antenna Calibration

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
