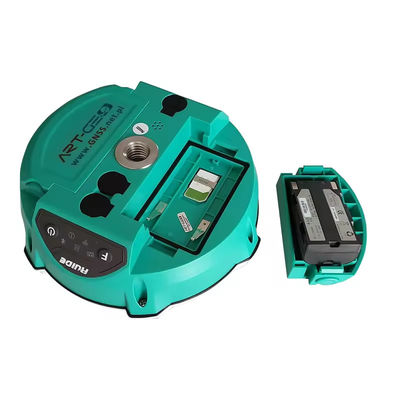

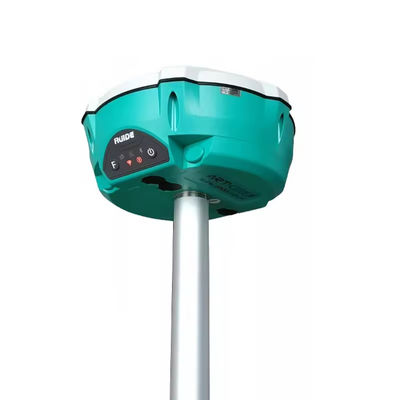

RUIDE GPS GNSS Receiver 1598 Channels RUIDE R90I GNSS Receiver Base and Rover Survey Equipment

Brand Name:	RUIDE
Model Number:	R90I
MOQ:	1 piece
Price:	$2,700.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver RUIDE R90I

Customized Support:

Channel:

1598 Channels

Application:

Full-wave

Function:

Blue Tooth For Surveying

Weight:

1.06KG

Internal Battery Life:

Static 12hours

Supports:

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

Product Description

RUIDE GPS GNSS Receiver 1598 Channels RUIDE R90I GNSS Receiver Base and Rover Survey Equipment

Overview

Product Description

Intelligent kernel

Intelligent Linux system platform, new generation Cortex-A5 processor, embedded Linux system+Ruide intelligent cloud, receiver is a complete intelligent system. With Ruide's powerful cloud service platform, devices can be remotely registered, upgraded, serviced, and diagnosed, allowing users to enjoy Ruide's star rated services without leaving their homes

Specification

allocation		Detailed indicators
Measurement performance	Signal tracking	1598 channels BDS:B1,B2,B3 GPS: L1C/A,L1C,L2C,L2E GLONASS: L1C/A,L1P,L2C/A,L2P SBAS: L1C/A Galileo: GIOVE-A和GIOVE-B,E1,E5A,E5B QZSS,WAAS,MSAS,EGNOS,GAGAN 2 L-Band following
	GNSS characteristics	Positioning output frequency 1Hz~50Hz The initialization time is less than 10 seconds Initialization reliability>99.99% All constellation reception technology, capable of supporting GNSS constellation signals from all current and planned sources High reliability carrier tracking technology improves carrier accuracy and provides high-quality raw observation data Intelligent dynamic sensitivity positioning technology, adaptable to various environmental changes and harsh, long-distance positioning environments High precision positioning processing engine Support TRIMBLE RTX satellite station differential service
positioning accuracy	Code differential GNSS positioning	Horizontal: 0.25 m+1 ppm RMS Vertical: 0.50 m+1 ppm RMS SBAS differential positioning accuracy: typical
	TRIMBLE RTX	Horizontal: 5cm, elevation: 10cm
	Static measurement accuracy	± (2.5 mm+0.5mm/km x d) (d is the distance between the measured points, km)
	RTK measurement accuracy	± (8 mm+1mm/km x d) (d is the distance between the measured points, km)
Operating system/ User interaction	operating system	Linux
	Keys	Double key operation, convenient and fast
	Indicator light	Five indicator lights
	Web interaction	Built in Web UI management backend, supporting WiFi and USB mode access to the receiver's built-in Web UI management page, real-time monitoring of host status, and free configuration of hosts.
	speech	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default; Support voice customization
	Secondary development	Provide a secondary development package, open OpenSIC observation data format, and define interaction interfaces for secondary development
	Data cloud services	Web version cloud service management platform, supporting remote management and data exchange services such as online registration
hardware	size	φ 175 X 83MM
	weight	1.06kg (without battery)
	material quality	Thermoplastic polyester and polycarbonate polymer materials
	temperature	Working temperature: -30 ° C to+65 ° C Storage temperature: -40 ° C to+80 ° C
	humidity	Anti 95% condensation
	Protection level	Waterproof: 1m immersion, IP67 level Dust prevention: completely prevents dust from entering, IP67 level
	Shockproof	Resistance to 2 meters of pole drop
electrical	source	9-28V wide voltage DC design with overvoltage protection
	battery	Detachable 3400mAh 7.4V battery, supporting pole shaped battery power supply (optional)
	Power solution	Supports dual or single battery power supply; RTK mode for 12 hours (Provide a 7 * 24-hour continuous working power supply solution)
communication	I/O ports	5-core PIN LEMO external power interface+RS232 7-core PIN LEMO external USB (OTG) Radio and network antenna interface (shared) SIM card slot
	Radio modem	Equipped with a high-performance integrated transceiver radio, with three levels of low, medium, and high (1W, 2W, 3W), typical operating distance of 8km, operating frequency of 410-470MHz, and the ability to switch between radio relay modes; External transmitter 5W/25W, operating frequency 450-470MHz Communication protocol: TrimTalk450S, TrimMark3, SOUTH
	Cellular mobility	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing and continuous online operation during work; External network antenna of the host, equipped with 4G high-speed network communication module (supporting China Mobile, China Unicom, and China Telecom), compatible with 3G/GPRS/EDGE; Compatible with various CORS system access.
	Bluetooth	BLEBluetooth 4.0 Bluetooth standard, supporting Android system phone connection; Bluetooth 2.1+EDR standard
	NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (the manual also needs to be equipped with NFC wireless communication module)
	External communication	Optional external GPRS/CDMA dual-mode communication module for free switching and adaptation to various working environments; Support external wireless network card
WIFI	standard	802.11b/g/n standard
	WIFI hotspot	Equipped with WIFI hotspot function, any intelligent terminal can access the receiver, providing rich personalized customization of receiver functions; Industrial notebooks, intelligent terminals, and other data collectors can transmit data to the receiver via WIFI
	WIFI data link	The receiver can be connected to WIFI for differential data broadcasting or reception
Data storage/transmission	data storage	8G built-in solid-state memory, supporting 32G external expansion; Automatic cyclic storage (automatically deleting the earliest data when storage space is insufficient); Support external USB memory for data storage; Rich sampling intervals, supporting up to 50Hz raw observation data collection
	data transmission	One click intelligent copying directly exports static data from the host through external USB storage; Plug and play USB data transmission method; FTP download, HTTP download
	data format	Static data formats: various formats such as Southern STH, Rinex2.01, and Rinex3.02 Differential data formats: CMR+, CMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 input and output; GPS output data format: NMEA 0183, PJK plane coordinates, binary code, Trimble GSOF; Network mode support: VRS, FKP, MAC, supports NTRIP protocol
Inertial Navigation System/Sensors	Tilt measurement	Built in tilt compensator (optional), automatically correcting coordinates based on the tilt direction and angle of the center pole
	Electron bubble	Equipped with a built-in sensor, the manual software can display electronic bubbles and check the leveling of the center pole in real-time
	temperature sensor	Equipped with multiple temperature sensors and intelligent variable frequency temperature control technology, it can monitor and adjust the host temperature in real-time

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
