RUIDE GPS GNSS Receiver 1598 Channels RUIDE R93I Pro GNSS Receiver Base and Rover Survey Equipment

Brand Name:	RUIDE
Model Number:	R93I Pro
MOQ:	1 piece
Price:	$2,700.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver RUIDE R93I Pro

Customized Support:

Channel:

1598 Channels

Operating System:

Linux

Inertial Tilt Measurement:

Support

Weight:

Working Hours:

15 Hours

Electron Bubble:

Support

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

Product Description

RUIDE GPS GNSS Receiver 1598 Channels RUIDE R93I ProGNSS Receiver Base and Rover Survey Equipment

Overview

Product Description

Ruide R93i Pro
GNSSconfiguration	Number of channels	1598
	BDS	B1I,B2I,B3I, B1I,B3I,B1C,B2a,B2b
	GPS	L1C/A,L2P,L2C,L5,L1C*
	GLONASS	G1,G2,G3*
	GALILEO	E1,E5b,E5a,E5 AltBoc,E6c
	QZSS	L1 ,L2C, L5/ IRNSS:L5/ SBAS:L1C/A,L5
	Positioning output rate	1Hz~20Hz
	Differential support	CMR,RTCM2.X,RTCM3.0,RTCM3.2
	Static format support	GNS, Rinex dual format static data
	RTK positioning accuracy	Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points)
	Static positioning accuracy	Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm
	Initialization time	<10 seconds
	Initialization reliability	＞99.99%
	IMU tilt compensation	Additional horizontal pole tip uncertainty typically less than 10mm + 0.7 mm/° tilt down to 30° IMU tilt angle:0°~60°
communication	NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller equipped NFC wireless communication module needed)
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	BLEBluetooth 4.0 standard, support for android, ios cellphone connection
	Wireless modem	Built-in radio, typically work range can be 8KM Radio repeater
	I/O port	5PIN LEMO external power port + RS232, 1 radio antenna interface, Type C , Micro SIM card
	frequency band:	410-470MHz
	Protocol	SOUTH,Farlink,TrimTalk,ZHD, HUACE
User Interface	Buttons	One button operation
User Interface	Indicators	Four indicate lights
Electrical physical properties	battery	Internal Li-on, 6800mAh, 7.4V
	Power Supply	9-25V DC, overvoltage protection
	size	135mm(Diameter)x84.75mm(Height)
	weight	0.97kg (battery included)
	material	Magnesium aluminum alloy shell
Environmental characteristics	Dust and water release	IP68 standard, protected from long time immersion to depth of 1m
	Storag	-55°C~+85°C
	Operating	-45℃~70℃
Specification
System	model	H6
	operating system	Android 8.1
	CPU	2.0 GHz eight-core processor
	Memory	3GB RAM
	Storage	32GB
Communication	Network	TDD/FDD-LTE 4G
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	V2.1+EDR/V3.0+HS/V4.1
	NFC	Support NFC IGRS
	USB	Mini USB, supports OTG
Electrical	Battery	7.4V, 3400mAh
	Battery life	12 hours
	Charging	< 4 hrs for full charge
Physical	size	206mm×85mm×40mm
	Weight	520g
	Operating temperature	-30℃ ~ +60℃

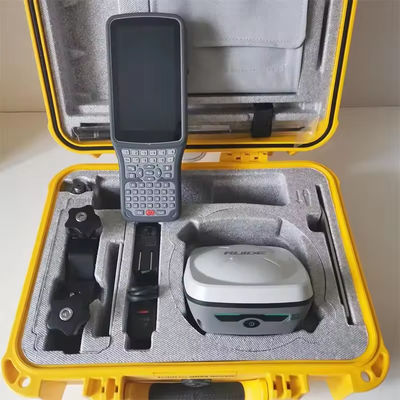

Data Collector

WHY CHOOSE US

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
