RUIDE GPS GNSS Receiver 1598 Channels RUIDE R93i MINI GNSS Receiver Base and Rover Survey Equipment

Brand Name:	RUIDE
Model Number:	R93i MINI
MOQ:	1 piece
Price:	$2,700.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver RUIDE R93i MINI

Customized Support:

Channel:

1598 Channels

Operating System:

Linux

Inertial Tilt Measurement:

Support

Weight:

Working Hours:

15 Hours

Electron Bubble:

Support

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

Product Description

RUIDE GPS GNSS Receiver 1598 Channels RUIDE R93i MINI GNSS Receiver Base and Rover Survey Equipment

Overview

Product Description

Items		Specification
GNSS	Signal Tracking	1598 Channels
		BDS:B1,B2,B3
		GPS: L1,L2C,L2P,L5
		GLONASS: L1 C/A, L1P, L2C/A, L2P
		Galileo: E1C,E5A,E5B
		SBAS,QZSS: support
		L-Band :support
	GNSS Features	Positioning output rate 1Hz~20Hz
		Initialization time :<10s
		Initialization reliability : >99.99%
		All-Constellation receiving Technology that supports all existing and planned GNSS constellation signals
Positioning Precision	Code Differential GNSS Positioning	Horizontal:0.25 m + 1 ppm RMS
		Vertical:0.50 m + 1 ppm RMS
		SBAS positioning accuracy: typically<5m 3DRMS
	Static GNSS Surveying	Horizontal:(2.5mm+0.510-6D)
	Static GNSS Surveying	Vertical:(5mm+0.510-6D)
	RTK Surveying	Horizontal:(8mm+110-6D)
	RTK Surveying	Vertical:(15mm+110-6D)
Operating system / user interaction	Operating system	Linux
	buttons	Single button operation, convenient and quick
	indicator	Four indicator lights
	Web interaction	Built-in WebUI management background, support WiFi and USB mode access WebUI page, real-time monitoring of receiver status, set any configuration of the receiver.
	voice	Intelligent voice technology, support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish; support for voice customization
	Data cloud service	Support register online, remote upgrade and etc.
Electrical	Power	9-28V wide voltage DC design with overvoltage protection
	Power	9-28V wide voltage DC design with overvoltage protection
	Battery	High capacity built-in battery 6800mAh 7.4V
	Battery	High capacity built-in battery 6800mAh 7.4V
	Power solution	Routine operations meet the endurance of more than 8 hours
		(Provide 7*24h continuous working power solution)

Communications	I/O Port	5 PIN LEMO External power interface +RS232
		7 PIN LEMO with USB(OTG)
		Radio, Network Antenna Interface (shared)
	Radio modem	Built-in high performance radio,
		operating frequency 410-470MHz,
		External radio: 5W/25W/35w
		protocol: TrimTalk450S,TrimMark3, SATEL,HI-TARGET
	Blue tooth	BLE blue tooth 4.0;blue tooth 2.1 + EDR standard
	NFCwireless communication	Using NFC wireless communication technology, the controller can be automatically paired with the receiver.( controller needs have NFC wireless communication module)
WIFI	standard	802.11b/g/n
	WIFI hot spot	WIFI hot spot function: intelligent terminal can connect to the receiver to do personalization custom;
	WIFI hot spot	Data transmission supported between the receiver and the controller
	WIFI data chaining	Receiver can access WIFI, to broadcast or receive differential data via WIFI
Data storage / transmission	Data storage	8G solid state memory, supporting 32GB external extension, Automatic cyclic storage,
	Data storage	Supporting external USB memory for data storage;
	transmission	One key Smart copy directly exports host static data via external USB memory; plug and play USB for data transfer; FTP download, HTTP download.
	data format	Static: Rinex2.01, Rinex3.02 and etc.
		Differential data format: RTCM 2.1,RTCM 2.3,RTCM 3.0,RTCM 3.1,RTCM 3.2 Input and output;
		GPS output data format: NMEA 0183, PJK plane coordinates, binary code,
IMU/Sensor	Electron bubble	Built-in sensors, data collector software can display electronic bubbles, real-time check the alignment of the surveying pole leveling situation
	Shake and shake tilt measurement (optional)	The built-in IMU sensor supports the tilt measurement function of shaking and shaking, and automatically corrects the coordinates according to the tilt direction and angle of the centering rod.
	temperature sensor	Built-in temperature sensor, real-time monitoring and adjusting host temperature
Physical	Size	13513584.75mm
	Weight	0.97KG with battery
	Material	aluminium magnesium alloy
	Temperature	Operating:0°Cto +65°C
	Temperature	Storage:0°Cto +80°C
	Humidity	Resistance to 95% condensation
	Waterproof/ Dustproof	Waterproof:1m immersion,IP68
	Waterproof/ Dustproof	Dustproof: Completely prevent dust from entering,IP68
	shockproof	Resistance to 2-meter drop with rod

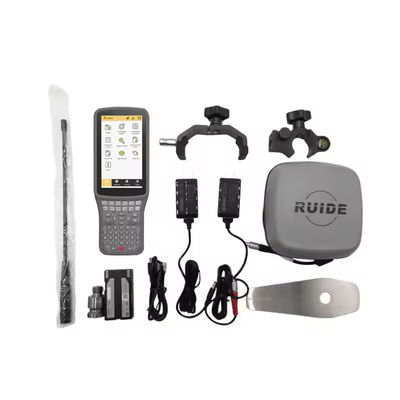

Data Collector

allocation	Detailed indicators
Product model	H6
auxiliary system	Android 8.1 or higher
Card slot mode	A: Dual Nano SIM card B: Single nano SIM card+esim card (optional)
size	235mm90mm35mm
weight	520g (including battery)
Physical keyboard	Full function numeric/alphabetical keyboard
network	Support 4G full network connectivity (reserve 5G solution)
Battery life	Adopting a built-in 9200mAh high-capacity lithium battery Ultra long standby time not less than 240 hours, continuous operation time greater than 20 hours
Charging adapter	Supports PE2.0 fast charging, with a full charge time of less than 4 hours
Three defense levels	IP67
temperature	Working temperature: -20 ℃~+60 ℃ Storage temperature: -30 ℃~+70 ℃
CUP	2.0Hz main frequency eight core processor
storage	RAM: 4GB; ROM: 64GB; Supports up to 128GB expansion
Display Size	5.0英寸
Display resolution	720 * 1280, visible to sunlight, typical 400nits
Display screen touch type	Capacitive screen, multi-point touch, wet hand touch, supports active capacitive pen, supports glove touch
Bluetooth	BT4.1
WIFI	802.11a/b/g/n, supports dual band 2.4G/5G
USB	Type-C interface, supports computer synchronization, supports OTC
camera	Rear 13 million pixels, autofocus
NFC	support
gyroscope	support
Geomagnetic induction	support
Gravity sensor	support
Flash	support
MIC	support
horn	support

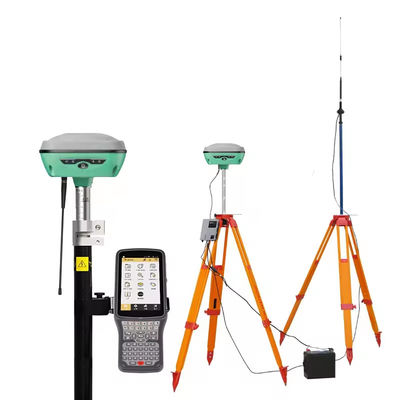

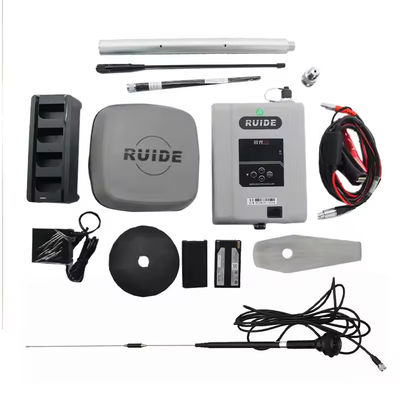

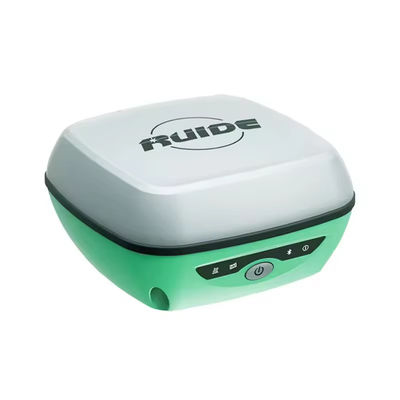

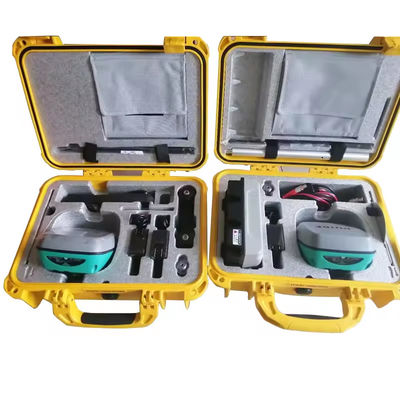

Product Display

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
