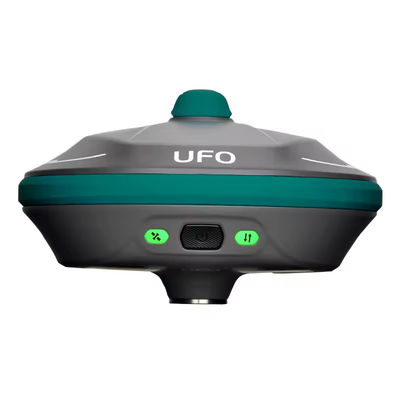

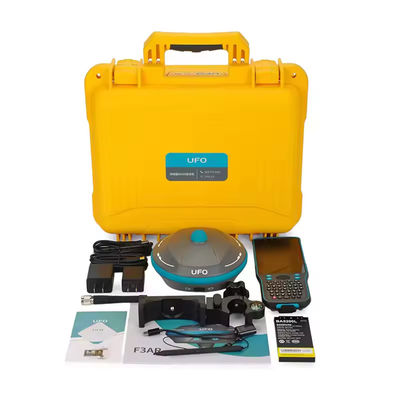

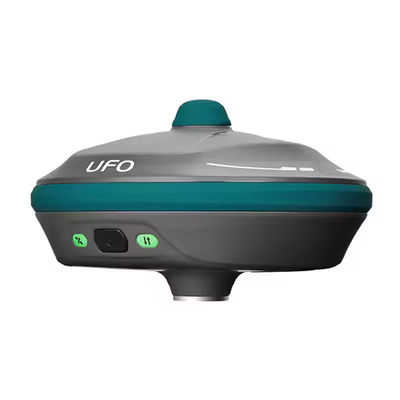

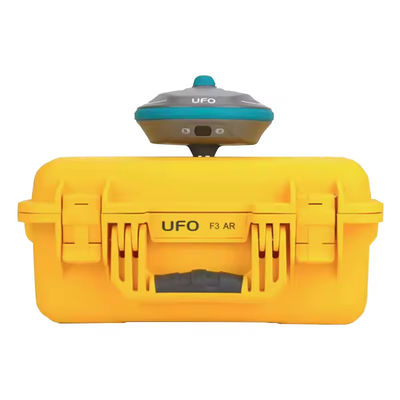

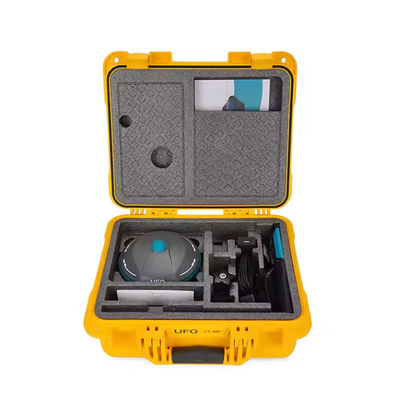

GNSS RTK UFO F3 AR Upgrade For Land Surveying Instruments Survey IMU GPS Rover

Brand Name:	UFO
Model Number:	F3 AR
MOQ:	1 piece
Price:	$2,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver UFO F3AR

Bli, B2i,B3i, B1C,B2a,B2b

Power:

Lithium Battery

Channels:

1408/800 Channels

AR Imaging Pixel:

AR Imaging Frame Rate:

IMU Accuracy:

2cm/60°

Working Frequency:

410MHz-470MHz

Supply Ability:

1 ~ 30 day

Highlight:

imu rtk gnss

imu gnss rtk receiver

gps rtk gnss

Product Description

GNSS RTK UFO F3 AR Upgrade for Land Surveying Instruments Survey IMU GPS Rover

Products Description

Data Collector

^{Specification}

F3 AR RTK Receiver
Satellite characteristics	Signal tracking	BDS: Bli, B2i,B3i, B1C,B2a,B2b
		GPS: L1C/A,L2P (Y),L2C,L5
		GLONASS: L1,L2
		GALILEO: E1, E5a, E5b, E6
		QZSS: L1, L2,L5
		IRNSS: L5
		SBAS
		L-Band
	Update frequency	10Hz for standard configuration and supports an authorization of 20Hz
Accuracy index	Static accuracy	Horizontal: ± 2.5mm+0.5ppm Elevation: ± 5mm+0.5ppm
Accuracy index	RTK accuracy	Horizontal: ± 8mm+1ppm Elevation: ± 15mm+1ppm
Electrical specifications	Battery characteristics	With built-in detachable lithium battery
	Endurance	12h
	Charge characteristic	Supports PD protocol 20W fast charging
System configuration	Operating system	Linux intelligent operating system
	Storage	8GB
	Bluetooth	V5.0+EDR backward compatibility/BLE
	WiFi	802.11 b/g/n/ac
	Voice broadcast	Integrated loud speaker supports TTS voice broadcast
IMU	IMU type	Self-calibration IMU needs no shaking
IMU	IMU accuracy	2cm/60°
AR imaging	Pixel	200W
	Frame rate	25Hz
	Speed	Low light level high speed
	Stakeout accuracy	2cm
Radio	Working frequency	410MHz-470MHz
	Working mode	Receive only
	Radio Protocol	Supports full protocols such as TrimTalk 450S, PCC-GMSK, PCC-4FSK, Satel
		Satel_ADL,HITARGET(9600),HITARGET(19200),TrimTalk(4800),
		HZSZ,South9600,TrimMark III, South 19200,GEOTALK,
		GEOMARK,PCCFST,PCCFST_ADL
Data interface	Radio interface	TNC radio interface
Data interface	Data/Charging	Type-C charging and data transmission
Man-machine interaction	Button	1 power button
Man-machine interaction	Indicator	2 LED status indicators
Physical specifications	Size	Ф152mm×H86mm
Physical specifications	Weight	890g
Environmental specifications	Working temperature	-30°℃ -+60°℃
	Storage temperature	-40°℃ -+80°℃
	IP grade	IP68
	Fall	2m drop with pole, 1.2m free fall
	Humidity	100% non condensing

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
