Measurement GNSS RTK UFO F3 Plus RTK Base And Rover Upgrade For Land Surveying Instruments

Brand Name:	UFO
Model Number:	F3 plus
MOQ:	1 piece
Price:	$3,200.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver UFO F3 Plus

L1C/A, LIC, L1P(Y), L2C, L2P (Y) , L5

Data Storage:

Channels:

1408/800 Channels

Electric Bubble:

Support

IMU Tilt Survey 60 Degree:

Support

Battery Capacity:

Built In Detachable Lithium-ion Battery 6800mAh 7.2V

L-band:

B2b, Available To Work In Asia-pacific Region

Supply Ability:

1 ~ 30 day

Highlight:

land surveying rtk gnss

land surveying gnss rtk receiver

l2p rtk gnss

Product Description

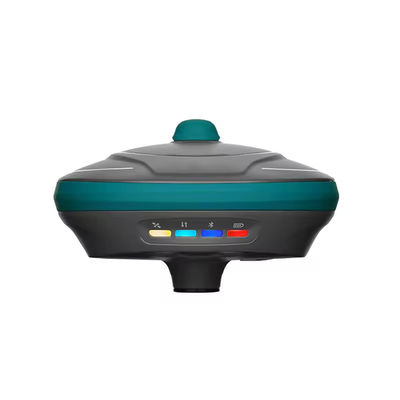

Measurement GNSS RTK UFO F3 plus RTK Base and Rover Upgrade for Land Surveying Instruments

Products Description

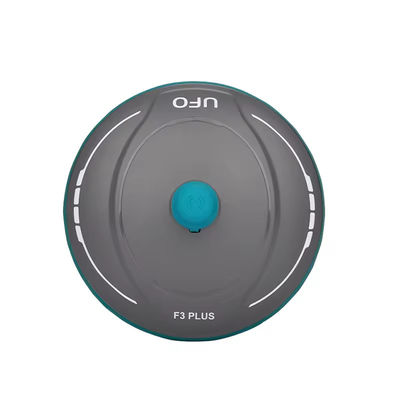

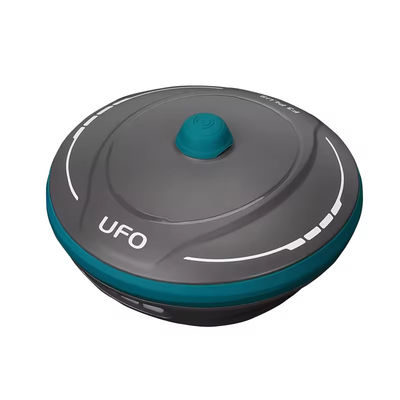

The product's appearance, inspired by cosmic design, is referred to as the "Eye of the Sky". The product design is crafted by designers who have won F and RedDot awards, blending technology and art across boundaries. Come and experience the beauty of F3PLUS from vision to fingertips together.

IMU inertial navigation support, free and free

The onboard IMU tilt measurement module has a 6-axis high dynamic output, allowing for more freedom in RTK operations. Self developed compensation algorithm, fast initialization in 5 seconds, achieving imperceptible tilt measurement. Innovate mid pole calibration technology to compensate for mid pole information in detection.

Specification

F3 plus
Channels	800
Tracking characteristics	GPS: L1C/A, LIC, L1P(Y), L2C, L2P (Y) , L5
	GLONASS: G1P1, G2P2, G1OC, G2OC, G3OC
	Galileo: E1BC, E5a, E5b, E5ALTBOC, E6BC
	BDS2:Bli, B2i, B3i
	BDS3: B1C,B2a,B2b,ACEBOC
	QZSS: LICA, L2C, L5, L1C, LEX
	SBAS
	L-Band
Update frequency	5Hz
Accuracy index
Static accuracy	Horizontal: ±2.5mm+0.5×10-6D Elevation: ±5mm+0.5×10-6D
RTK accuracy	Horizontal: ±8mm+1×10-6D Elevation: ±15mm+1×10-6D
Electrical index
Battery characteristics	Built-in detachable lithium-ion battery, 7.2V 6800mAh
Input voltage	DC 9V-28V
Endurance	Rover 12h
System configuration
Operating system	Linux
Storage	8GB
Bluetooth	V2.1+EDR/N4.1 dual mode, class 2
WiFi	802.11b/n/g
UHF radio	One-way reception, frequency: 410-470MHz
	Radio protocol:: SATEL, PCC-EOT, TrimTalk450S, South9600,
	South19200, Hi-Target9600, Hi-Target19200,
	TrimMarkIII (19200) , TrimMarkI, GEOTALK, GEOMARK
Network	2G3G4G, GSM, CDMA, TD-LTE, FDD-LTE, TD-SCDMA, WCDMA
Electron bubble	Supported
IMU
Tilt measurement	Supported
Tilt accuracy	60/2cm (horizontal)
Interface
Data radio	TNC radio antenna interface
Transmişsion/Charging	USB Type-C charging and data transmission
5PIN interface	External power supply RS232, supporting external radio
Man-machine interactions
Button	1 power button
Indicator	4 status indicator lights
	Physical index
Size	φ152mm×92mmH
Weight	920g
Environmental Index
Working temperature	-30°℃ - +65°℃
Storage temperature	-40°℃ - +80°℃
IP grade	IP67

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
