New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk
  • name
  • name
  • name
  • name
  • name

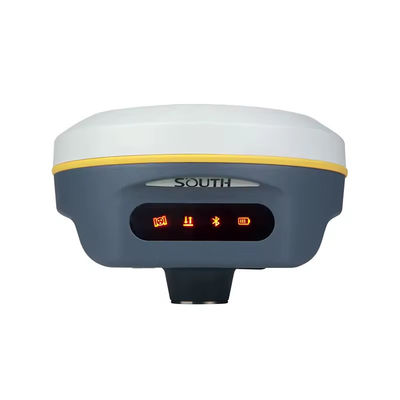

New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk

Brand Name: SOUTH
Model Number: G2
MOQ: 1 piece
Price: $3,200.00
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
RTK Receiver SOUTH G2
GPS:
L1C/A, LIC, L1P(Y), L2C, L2P (Y) , L5
Data Storage:
8GB
Channels:
1408/800 Channels
Electric Bubble:
Support
IMU Tilt Survey 60 Degree:
Support
Battery Capacity:
Built In Detachable Lithium-ion Battery 6800mAh 7.2V
L-band:
B2b, Available To Work In Asia-pacific Region
Supply Ability:
1 ~ 30 day
Highlight:

gps rtk gnss

,

gps gnss rtk receiver

,

imu rtk gnss

Product Description

High precision vision measurement GNSS RTK F3 plus RTK Base and Rover upgrade for land surveying instruments



Overview

Products Description
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 0
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 1
The product's appearance, inspired by cosmic design, is referred to as the "Eye of the Sky". The product design is crafted by designers who have won F and RedDot awards, blending technology and art across boundaries. Come and experience the beauty of F3PLUS from vision to fingertips together.
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 2
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 3

IMU inertial navigation support, free and free

The onboard IMU tilt measurement module has a 6-axis high dynamic output, allowing for more freedom in RTK operations. Self developed compensation algorithm, fast initialization in 5 seconds, achieving imperceptible tilt measurement. Innovate mid pole calibration technology to compensate for mid pole information in detection.
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 4
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 5
Specification
F3 plus
Channels
800
Tracking characteristics
GPS: L1C/A, LIC, L1P(Y), L2C, L2P (Y) , L5
GLONASS: G1P1, G2P2, G1OC, G2OC, G3OC
Galileo: E1BC, E5a, E5b, E5ALTBOC, E6BC
BDS2:Bli, B2i, B3i
BDS3: B1C,B2a,B2b,ACEBOC
QZSS: LICA, L2C, L5, L1C, LEX
SBAS
L-Band
Update frequency
5Hz
Accuracy index
Static accuracy
Horizontal: ±2.5mm+0.5×10-6D Elevation: ±5mm+0.5×10-6D
RTK accuracy
Horizontal: ±8mm+1×10-6D Elevation: ±15mm+1×10-6D
Electrical index
Battery characteristics
Built-in detachable lithium-ion battery, 7.2V 6800mAh
Input voltage
DC 9V-28V
Endurance
Rover 12h
System configuration
Operating system
Linux
Storage
8GB
Bluetooth
V2.1+EDR/N4.1 dual mode, class 2
WiFi
802.11b/n/g
UHF radio
One-way reception, frequency: 410-470MHz
Radio protocol:: SATEL, PCC-EOT, TrimTalk450S, South9600,
South19200, Hi-Target9600, Hi-Target19200,
TrimMarkIII (19200) , TrimMarkI, GEOTALK, GEOMARK
Network
2G3G4G, GSM, CDMA, TD-LTE, FDD-LTE, TD-SCDMA, WCDMA
Electron bubble
Supported
IMU
Tilt measurement
Supported
Tilt accuracy
60/2cm (horizontal)
Interface
Data radio
TNC radio antenna interface
Transmişsion/Charging
USB Type-C charging and data transmission
5PIN interface
External power supply RS232, supporting external radio
Man-machine interactions
Button
1 power button
Indicator
4 status indicator lights

Physical index
Size
φ152mm×92mmH
Weight
920g
Environmental Index
Working temperature
-30°℃ - +65°℃
Storage temperature
-40°℃ - +80°℃
IP grade
IP67





Why Choose Us
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 6
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 7
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 8
Customer Photos
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 9
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 10

Certifications
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 11
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 12

Company Profile
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 13


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 14

Packing & Delivery
New Version Gps Rtk Southern Galaxy G2 G3 G1PLUS With 1958 Channels And Imu In Land Surveying chc i83 i73 rtk 15
