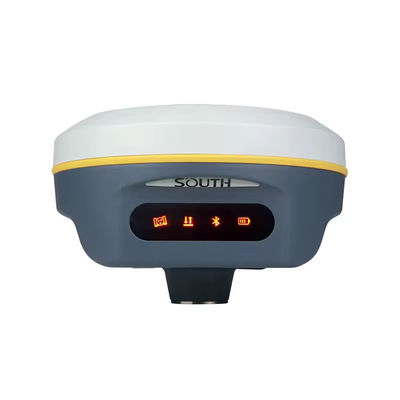

New Version GPS RTK SOUTH Galaxy G2 G3 G1PLUS With 1598 Channels And Imu In Land Surveying CHC i83 i73 RTK

Brand Name:	SOUTH
Model Number:	G2
MOQ:	1 piece
Price:	$3,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver SOUTH G2

GPS:

L1, L1C, L2C, L2P, L5

GLONASS:

G1, G2, G3

Channels:

1598 Channels

GALILEOS:

E1, E5A, E5B, E6C, AltBOC*

Positioning Output Rate:

1Hz~20Hz

Frequency Range:

410 - 470MHz

Operating System:

Linux

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

south rtk gnss

Product Description

New Version GPS RTK SOUTH Galaxy G2 G3 G1PLUS With 1598 Channels And Imu In Land Surveying CHC i83 i73 RTK

Products Description

Specification
GNSS Features	Channels	1598
	GPS	L1, L1C, L2C, L2P, L5
	GLONASS	G1, G2, G3
	BDS	BDS-2: B1I, B2I, B3I
	BDS	BDS-3: B1I, B3I, B1C, B2a, B2b*
	GALILEOS	E1, E5A, E5B, E6C, AltBOC*
	SBAS	L1*
	IRNSS	L5*
	QZSS	L1, L2C, L5*
	MSS L-Band (Reserve)
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
	Code differential GNSS positioning	Vertical: 0.50 m + 1 ppm RMS
	GNSS static	Horizontal: 2.5 mm + 0.5 ppm RMS
	GNSS static	Vertical: 5 mm + 0.5 ppm RMS
	Real-time kinematic	Horizontal: 8 mm + 1 ppm RMS
	(Baseline<30km)	Vertical: 15 mm + 1 ppm RMS
	SBAS positioning	Typically < 5m 3DRMS
	RTK initialization time	2 ~ 8s
	IMU tilt compensation	Additional horizontal pole tip uncertainty
	IMU tilt compensation	typically less than 10mm + 0.7 mm/° tilt down to 30°
	IMU tilt angle	0° ~ 60°
Hardware Performance	Dimension	130.5mm(φ) × 84mm(H)
	Weight	850g (battery included)
	Material	Magnesium aluminum alloy shell
	Operating temperature	-25℃ ~ +65℃
	Storage temperature	-35℃ ~ +80℃
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against blowing dust
	Shock/Vibration	Withstand 2 meters pole drop onto the cement ground naturally
	Power supply	6-28V DC, overvoltage protection
	Battery	Inbuilt 6800mAh rechargeable, removable Lithium-ion battery
	Battery life	Single battery: 16h (static mode), 8h (Base + UHF), 12h (Rover + UHF), 15h (Rover + )
Communications	I/O Port	5PIN LEMO external power port + Rs232
		Type-C interface (charge + OTG + Ethernet)
		1 UHF antenna interface
		SIM card slot (Micro SIM)
	Internal UHF	Radio receiver and transmitter, 1W/2W/3W switchable
	Frequency range	410 - 470MHz
	Communication protocol	Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel
	Communication range	Typically 8km with Farlink protocol
	Cellular mobile network	4G cellular module standard, customizable 5G module
		3.0/4.1 standard, 2.1 + EDR
	NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
WIFI	Modem	802.11 b/g standard
	WIFI hotspot	Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
	WIFI datalink	Receiver can transmit and receive correction data stream via WiFi datalink
Data Storage/Transmission	Storage	8GB SSD internal storage standard, extendable up to 64GB
		Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
		Support external USB storage
		The customizable sample interval is up to 20Hz
	Data transmission	Plug and play mode of USB data transmission
	Data transmission	Supports FTP/HTTP data download
	Data format	Static data format: STH, Rinex2.01, Rinex3.02 and etc.
		Differential data format: CMR, SCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
		GPS output data format: NMEA 0183, PJK plane coordinate, Binary code, Trimble GSOF
		Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors	Electronic bubble	Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
	IMU	Built-in IMU module, calibration-free and immue to magnetic interference
	Thermometer	Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
User Interaction	Operating system	Linux
	Buttons	Single button
	Indicators	5 LED indicators
	Web interaction	With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
	Voice guidance	It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
	Secondary development	Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition
	Cloud service	The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.

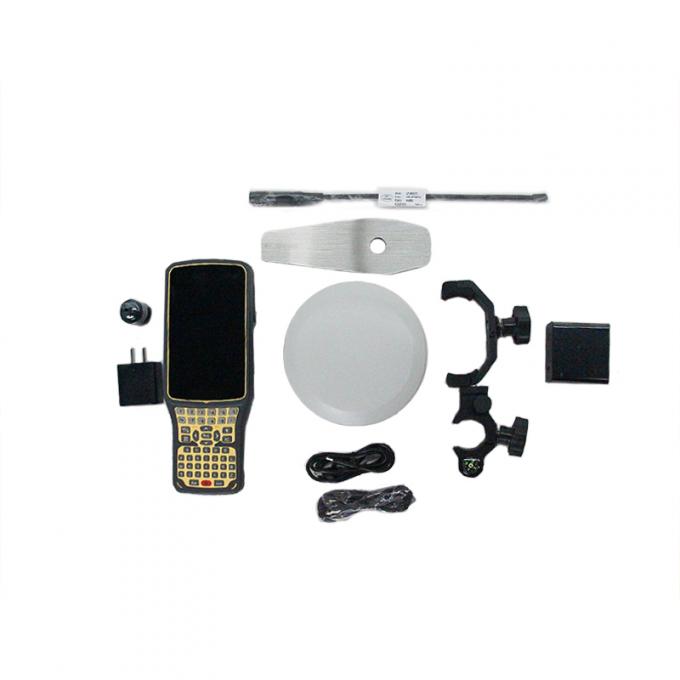

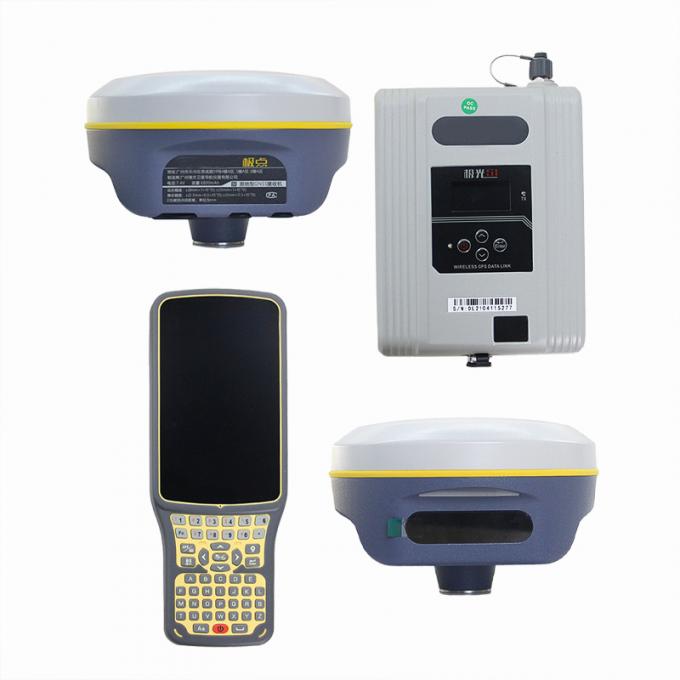

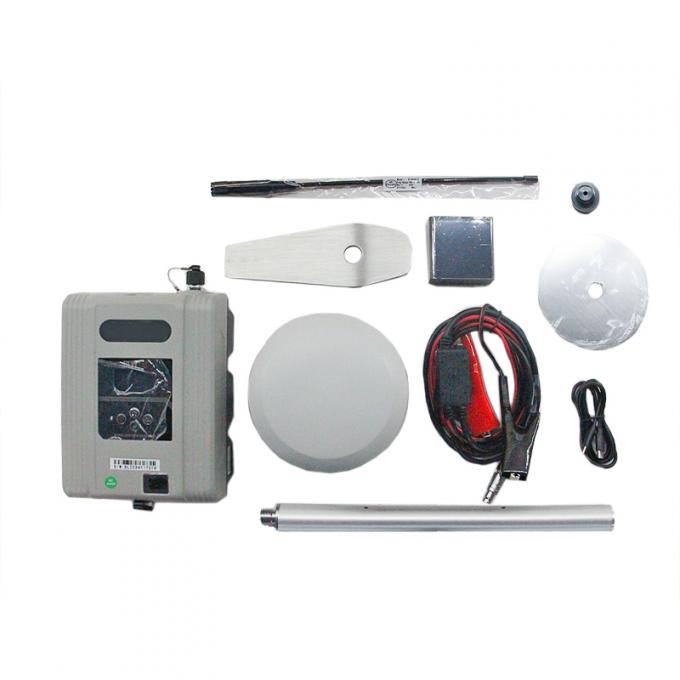

New Version GPS RTK SOUTH Galaxy G2 G3 G1PLUS With 1598 Channels And Imu In Land Surveying CHC i83 i73 RTK 0

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

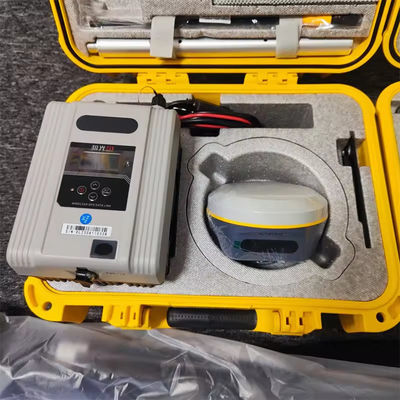

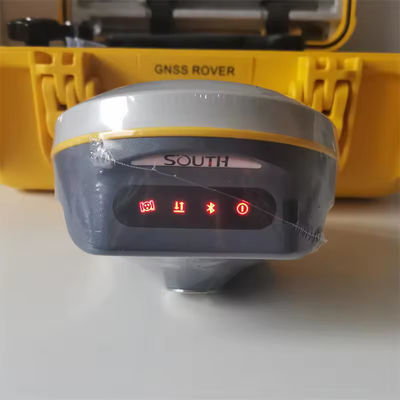

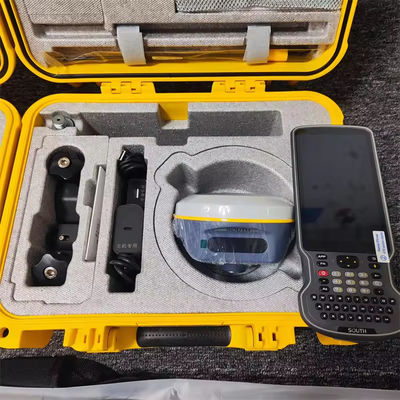

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
