1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

Brand Name:	SOUTH
Model Number:	YuanXiao
MOQ:	1 piece
Price:	$2,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver SOUTH YuanXiao

Customized Support:

OBM, ODM, OEM

Material:

Magnesium Alloy

Power:

Lithium Battery

Color:

Yellow

Channels:

Signal Recapture:

Weight:

827 G

Supply Ability:

1 ~ 30 day

Highlight:

south rtk gnss

south gnss rtk receiver

gps rtk gnss

Product Description

1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

Overview

Products Description

NSS Features	Channels	1598
	GPS	L1, L1C, L2C, L2P, L5
	GLONASS	L1C/A,L1P,L2C/A,L2P,L3*
	BDS	BDS-2: B1I, B2I, B3I
	BDS	BDS-3: B1I, B3I, B1C, B2a, B2b*
	GALILEOS	E1, E5A, E5B, E6C, AltBOC*
	SBAS(WAAS/MSAS/EGNOS/GAGAN)	L1*
	IRNSS	L5*
	QZSS	L1, L2C, L5*
	MSS L-Band	BDS-PPP
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
	Code differential GNSS positioning	Vertical: 0.50 m + 1 ppm RMS
	Static(long observations)	Horizontal: 2.5 mm + 1 ppm RMS
	Static(long observations)	Vertical: 3 mm + 0.4 ppm RMS
	Static	Horizontal: 2.5 mm + 0.5 ppm RMS
	Static	Vertical: 3.5 mm + 0.5 ppm RMS
	Rapid static	Horizontal: 2.5 mm + 0.5 ppm RMS
	Rapid static	Vertical: 5 mm + 0.5 ppm RMS
	PPK	Horizontal: 3 mm + 1 ppm RMS
	PPK	Vertical: 5 mm + 1 ppm RMS
	RTK(UHF)	Horizontal: 8 mm + 1 ppm RMS
	RTK(UHF)	Vertical: 15 mm + 1 ppm RMS
	RTK(NTRIP)	Horizontal: 8 mm + 0.5 ppm RMS
	RTK(NTRIP)	Vertical: 15 mm + 0.5 ppm RMS
	RTK initialization time	2 ~ 8s
	SBAS positioning	Typically < 5m 3DRMS
	BANDA-L	Horizontal: 5-10cm (5-30min)
	BANDA-L	Vertical: 10-30cm (5-30min)
	IMU	Less than 10mm + 0.7 mm/° tilt to 30°
	IMU tilt angle	0° ~ 60°
Hardware Performance	Dimension	130mm(W) ×130mm(L) × 80mm(H)
	Weight	790g (battery included)
	Material	Magnesium aluminum alloy shell
	Operating temperature	-45℃ ~ +75℃
	Storage temperature	-55℃ ~ +85℃
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against
	Waterproof/Dustproof	blowing dust
	Shock/Vibration	Withstand 2 meters pole drop onto the cement ground naturally
	Shock/Vibration	MIL-STD 810G
	Power supply	6-28V DC, overvoltage protection
	Battery	Inbuilt 7.2V 6800mAh rechargeable, Li-ion battery
	Battery life	15h (Rover Bluetooth mode)
Communications	I/O Port	5-PIN LEMO external power port + RS232 Type-C (charge, OTG to USB disk, data transfer with PC or phone, Ethernet)
	I/O Port	1 UHF antenna TNC interface
	Internal UHF	2W radio, receive and transmit, radio router and radio repeater
	Frequency range	410 - 470MHz
	Communication protocol	Farlink, Trimtalk450s, SOUTH, HUACE, Hi-target, Satel
	Communication range	Typically 8km with Farlink protocol
	NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
	Bluetooth	Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
WIFI	Modem	802.11 b/g standard
	WIFI hotspot	AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
	WIFI datalink	Client mode, Receiver can transmit and receive correction data stream via WiFi datalink
Data Storage/Transmission	Storage	4GB SSD Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
	Storage	Support external USB storage
	Data transmission	Plug and play mode of USB data transmission
	Data transmission	Supports FTP/HTTP data download
	Data format	Static data format: STH, Rinex2.01, Rinex3.02 and etc.
		Differential format: RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
		GPS output data format: NMEA 0183, PJK plane coordinate, SOUTH Binary code
		Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors	Electronic bubble	Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
	IMU	Built-in IMU module, calibration-free and immue to magnetic interference
	Thermometer	Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
User Interaction	Operating system	Linux
	Buttons	One button
	Indicators	5 LED indicators(Satellite, Charging, Power, Datalink, Bluetooth)
	Web interaction	With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
	Voice guidance	It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
	Secondary development	Provides secondary development kit, and opens the OpenSIC observation data format and interaction interface definition
	Cloud service	The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.

Data Collector

Product Display

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

Products Details

Home > Products >

GNSS RTK Receiver

1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

All Category

1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

Brand Name:	SOUTH
Model Number:	YuanXiao
MOQ:	1 piece
Price:	$2,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SOUTH

Model Number:

YuanXiao

Product Name:

RTK Receiver SOUTH YuanXiao

Customized Support:

OBM, ODM, OEM

Material:

Magnesium Alloy

Power:

Lithium Battery

Color:

Yellow

Channels:

1598

Signal Recapture:

Weight:

827 G

Minimum Order Quantity:

1 piece

Price:

$2,500.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

south rtk gnss

south gnss rtk receiver

gps rtk gnss

Product Description

1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

Overview

Products Description

NSS Features	Channels	1598
	GPS	L1, L1C, L2C, L2P, L5
	GLONASS	L1C/A,L1P,L2C/A,L2P,L3*
	BDS	BDS-2: B1I, B2I, B3I
	BDS	BDS-3: B1I, B3I, B1C, B2a, B2b*
	GALILEOS	E1, E5A, E5B, E6C, AltBOC*
	SBAS(WAAS/MSAS/EGNOS/GAGAN)	L1*
	IRNSS	L5*
	QZSS	L1, L2C, L5*
	MSS L-Band	BDS-PPP
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
	Code differential GNSS positioning	Vertical: 0.50 m + 1 ppm RMS
	Static(long observations)	Horizontal: 2.5 mm + 1 ppm RMS
	Static(long observations)	Vertical: 3 mm + 0.4 ppm RMS
	Static	Horizontal: 2.5 mm + 0.5 ppm RMS
	Static	Vertical: 3.5 mm + 0.5 ppm RMS
	Rapid static	Horizontal: 2.5 mm + 0.5 ppm RMS
	Rapid static	Vertical: 5 mm + 0.5 ppm RMS
	PPK	Horizontal: 3 mm + 1 ppm RMS
	PPK	Vertical: 5 mm + 1 ppm RMS
	RTK(UHF)	Horizontal: 8 mm + 1 ppm RMS
	RTK(UHF)	Vertical: 15 mm + 1 ppm RMS
	RTK(NTRIP)	Horizontal: 8 mm + 0.5 ppm RMS
	RTK(NTRIP)	Vertical: 15 mm + 0.5 ppm RMS
	RTK initialization time	2 ~ 8s
	SBAS positioning	Typically < 5m 3DRMS
	BANDA-L	Horizontal: 5-10cm (5-30min)
	BANDA-L	Vertical: 10-30cm (5-30min)
	IMU	Less than 10mm + 0.7 mm/° tilt to 30°
	IMU tilt angle	0° ~ 60°
Hardware Performance	Dimension	130mm(W) ×130mm(L) × 80mm(H)
	Weight	790g (battery included)
	Material	Magnesium aluminum alloy shell
	Operating temperature	-45℃ ~ +75℃
	Storage temperature	-55℃ ~ +85℃
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 1m IP68 standard, fully protected against
	Waterproof/Dustproof	blowing dust
	Shock/Vibration	Withstand 2 meters pole drop onto the cement ground naturally
	Shock/Vibration	MIL-STD 810G
	Power supply	6-28V DC, overvoltage protection
	Battery	Inbuilt 7.2V 6800mAh rechargeable, Li-ion battery
	Battery life	15h (Rover Bluetooth mode)
Communications	I/O Port	5-PIN LEMO external power port + RS232 Type-C (charge, OTG to USB disk, data transfer with PC or phone, Ethernet)
	I/O Port	1 UHF antenna TNC interface
	Internal UHF	2W radio, receive and transmit, radio router and radio repeater
	Frequency range	410 - 470MHz
	Communication protocol	Farlink, Trimtalk450s, SOUTH, HUACE, Hi-target, Satel
	Communication range	Typically 8km with Farlink protocol
	NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
	Bluetooth	Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
WIFI	Modem	802.11 b/g standard
	WIFI hotspot	AP mode, Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
	WIFI datalink	Client mode, Receiver can transmit and receive correction data stream via WiFi datalink
Data Storage/Transmission	Storage	4GB SSD Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough)
	Storage	Support external USB storage
	Data transmission	Plug and play mode of USB data transmission
	Data transmission	Supports FTP/HTTP data download
	Data format	Static data format: STH, Rinex2.01, Rinex3.02 and etc.
		Differential format: RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
		GPS output data format: NMEA 0183, PJK plane coordinate, SOUTH Binary code
		Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Sensors	Electronic bubble	Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
	IMU	Built-in IMU module, calibration-free and immue to magnetic interference
	Thermometer	Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature
User Interaction	Operating system	Linux
	Buttons	One button
	Indicators	5 LED indicators(Satellite, Charging, Power, Datalink, Bluetooth)
	Web interaction	With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
	Voice guidance	It provides status and operation voice guidance, and supports Chinese/English/Korean/Spanish/Portuguese/Russian/Turkish
	Secondary development	Provides secondary development kit, and opens the OpenSIC observation data format and interaction interface definition
	Cloud service	The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.

Data Collector

Product Display

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Customer Photos

Certifications

Company Profile

FAQ

Our Service

Packing & Delivery

Tags:

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

products details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

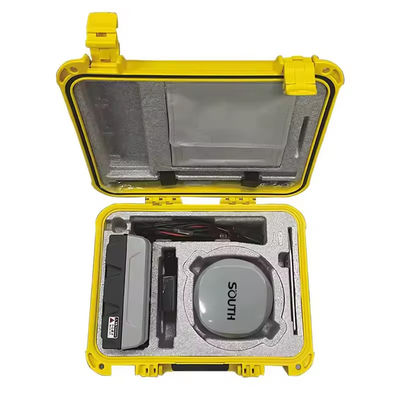

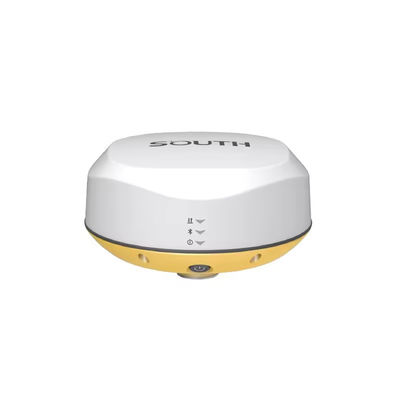

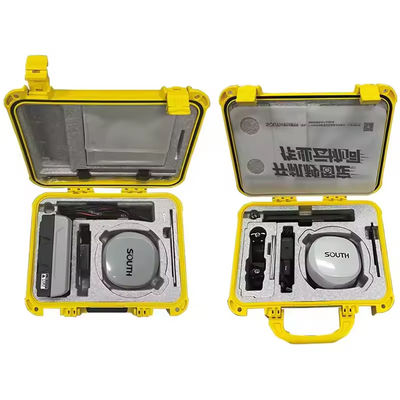

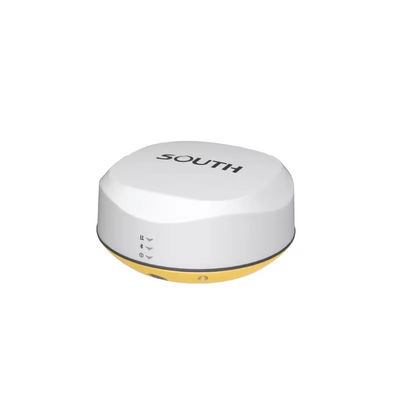

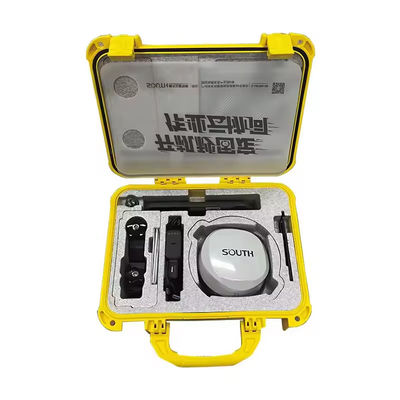

1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

south rtk gnss

south gnss rtk receiver

gps rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

1598 channels SOUTH YuanXiao Topographic Instrument RTK Base and Rover High Accuracy Gps Receiver

south rtk gnss

south gnss rtk receiver

gps rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment
