GNSS RTK Receiver

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	SOUTH
Model Number:	G7 Pro
MOQ:	1 piece
Price:	$5,000.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver SOUTH G7 Pro

Customized Support:

OBM, ODM, OEM

Material:

Magnesium Alloy

Power:

Lithium Battery

Color:

White

Channels:

Working Hours:

30 Hours

L1C/A,L2P,L2C,L5,L1C*

Supply Ability:

1 ~ 30 day

Highlight:

south rtk gnss

south gnss rtk receiver

gps rtk gnss

Product Description

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Description

Technical Parameters

GNSS Features	Channels	1598
	GPS	L1C/A, L2C, L2P, L5
	GLONASS	L1C/A, L1P, L2C/A, L2P
	BDS	B1, B2, B3
	GALILEO	E1, E5A, E5B, E5AltBOC*, E6
	SBAS	L1C/A, L5 (Just for the satellites supporting L5)
	IRNSS	L5
	QZSS	L1C/A, L2C, L5
	L-Band	BDS-PPP, GALILEO-HAS*
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Static measurement accuracy	Plane: ± (2.5+0.5 × 10-6D) mm(D is the measured baseline length)
	Static measurement accuracy	Elevation: ± (5+0.5 × 10-6D) mm(D is the measured baseline length)
	RTK measurement accuracy	Plane: ± (8+1 × 10-6D) mm(D is the measured baseline length)
	RTK measurement accuracy	Elevation: ± (15+1 × 10-6D) mm(D is the measured baseline length)
ins	IMU update rate	200HZ
	Tilt angle	0°～60°
	Tilt compensation accuracy	1.8-meter pole; RMS: 8 mm+0.7 mm/° tilt (tilt is the tilt angle)
operating system /User interaction	operating system	Linux
	Keys	Power button
	LCD screen	1.14-inch color screen
	LCD screen	resolution: 135 * 240
	Indicator light	Multiple indicator lights: data light, power light Power display light (at the bottom of the instrument)
	Web interaction	Built in Web UI management backend, supporting Wi Fi and USB mode access receiver built-in Web UI management page, real-time monitoring of host status, and free configuration of hosts.
	speech	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default;
hardware	size	134mm*79.1mm
	weight	860g
	material quality	magnesium alloy
	temperature	Working temperature: -45 ° C to+75 ° C
	temperature	Storage temperature: -55 ° C to+85 ° C
	humidity	Anti 100% condensation
	Protection level	IP68
	Shockproof	Resistance to 2 meters of pole drop
electrical	source	6-18V wide voltage DC design, With overvoltage protection
	battery	Built in 6800mAh high-performance lithium battery 7.4V
		Supports PD protocol fast charging, fully charged in 3.5 hours
		Mobile station manual network mode operation meets 18 hours of battery life
Realistic scene lofting	pixel	2 million
Realistic scene lofting	Field of view angle	75°
Realistic scene measure	pixel	8 million
Realistic scene measure	accuracy	measurement distance 2-15m, RMS accuracy: 4cm
communication	I/O ports	TYPE-C interface: charging interface, disk data interface
	I/O ports	5-core interface: serial data debugging port, power supply port Radio antenna interface

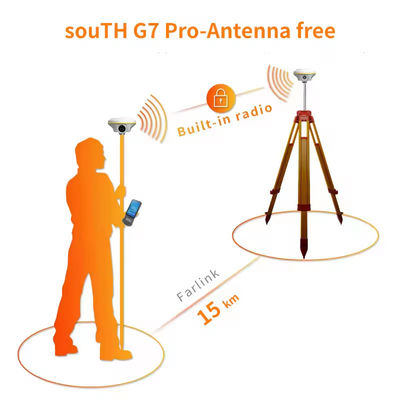

	radio station	Built in integrated transceiver radio station
		Working frequency: 410-470MHz;
		Communication protocol:Farlink,South,Kolida,TrimTalk,Hi-Target,Huace,Satel
		Support radio relay function: The received radio signal can be forwarded again for use by other devices;
		Support network routing function: The received network signals can be forwarded as radio signals for use by other devices;
	Bluetooth	BT4.2 (BR/EDR+BLE) Bluetooth standard
	network	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, during operation Continuous online, equipped with high-speed network communication module, compatible with various CORS system access.
	NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (requiring the manual to match) (Equipped with NFC wireless communication module)
WIFI	standard	802.11b/g/n standard, Supports 2.4g/5g Wi Fi
	WIFI hotspot	Equipped with WIFI hotspot function, any intelligent terminal can access the receiver
	WIFI hotspot	The data collector can transmit data to the receiver via WIFI
	WIFI data link	The receiver can be connected to WIFI, Spreading or receiving differential data through WIFI
data storage	data storage	Built in 16GB solid-state storage, supporting memory expansion
		Automatic cyclic storage (automatically deleting the earliest data when storage space is insufficient);
		Rich sampling intervals, supporting up to 20Hz of raw observation data collection;
	data format	Static data formats: STH format, Rinex format
		Differential data format: RTCM3.0, RTCM3.2 input and output
		GPS output data format: NMEA 0183, PJK plane coordinates, binary code
		Network mode support: VRS, FKP, MAC, supports NTRIP protocol
sensor	temperature sensor	Adopting intelligent variable frequency temperature control technology Surgery, real-time monitoring and adjustment Host temperature

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

Home > Products >

GNSS RTK Receiver

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

All Category

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	SOUTH
Model Number:	G7 Pro
MOQ:	1 piece
Price:	$5,000.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

SOUTH

Model Number:

G7 Pro

Product Name:

RTK Receiver SOUTH G7 Pro

Customized Support:

OBM, ODM, OEM

Material:

Magnesium Alloy

Power:

Lithium Battery

Color:

White

Channels:

1598

Working Hours:

30 Hours

GPS:

L1C/A,L2P,L2C,L5,L1C*

Minimum Order Quantity:

1 piece

Price:

$5,000.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

south rtk gnss

south gnss rtk receiver

gps rtk gnss

Product Description

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Description

Technical Parameters

GNSS Features	Channels	1598
	GPS	L1C/A, L2C, L2P, L5
	GLONASS	L1C/A, L1P, L2C/A, L2P
	BDS	B1, B2, B3
	GALILEO	E1, E5A, E5B, E5AltBOC*, E6
	SBAS	L1C/A, L5 (Just for the satellites supporting L5)
	IRNSS	L5
	QZSS	L1C/A, L2C, L5
	L-Band	BDS-PPP, GALILEO-HAS*
	Positioning output rate	1Hz~20Hz
	Initialization time	< 10s
	Initialization reliability	> 99.99%
Positioning Precision	Static measurement accuracy	Plane: ± (2.5+0.5 × 10-6D) mm(D is the measured baseline length)
	Static measurement accuracy	Elevation: ± (5+0.5 × 10-6D) mm(D is the measured baseline length)
	RTK measurement accuracy	Plane: ± (8+1 × 10-6D) mm(D is the measured baseline length)
	RTK measurement accuracy	Elevation: ± (15+1 × 10-6D) mm(D is the measured baseline length)
ins	IMU update rate	200HZ
	Tilt angle	0°～60°
	Tilt compensation accuracy	1.8-meter pole; RMS: 8 mm+0.7 mm/° tilt (tilt is the tilt angle)
operating system /User interaction	operating system	Linux
	Keys	Power button
	LCD screen	1.14-inch color screen
	LCD screen	resolution: 135 * 240
	Indicator light	Multiple indicator lights: data light, power light Power display light (at the bottom of the instrument)
	Web interaction	Built in Web UI management backend, supporting Wi Fi and USB mode access receiver built-in Web UI management page, real-time monitoring of host status, and free configuration of hosts.
	speech	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default;
hardware	size	134mm*79.1mm
	weight	860g
	material quality	magnesium alloy
	temperature	Working temperature: -45 ° C to+75 ° C
	temperature	Storage temperature: -55 ° C to+85 ° C
	humidity	Anti 100% condensation
	Protection level	IP68
	Shockproof	Resistance to 2 meters of pole drop
electrical	source	6-18V wide voltage DC design, With overvoltage protection
	battery	Built in 6800mAh high-performance lithium battery 7.4V
		Supports PD protocol fast charging, fully charged in 3.5 hours
		Mobile station manual network mode operation meets 18 hours of battery life
Realistic scene lofting	pixel	2 million
Realistic scene lofting	Field of view angle	75°
Realistic scene measure	pixel	8 million
Realistic scene measure	accuracy	measurement distance 2-15m, RMS accuracy: 4cm
communication	I/O ports	TYPE-C interface: charging interface, disk data interface
	I/O ports	5-core interface: serial data debugging port, power supply port Radio antenna interface
	radio station	Built in integrated transceiver radio station
		Working frequency: 410-470MHz;
		Communication protocol:Farlink,South,Kolida,TrimTalk,Hi-Target,Huace,Satel
		Support radio relay function: The received radio signal can be forwarded again for use by other devices;
		Support network routing function: The received network signals can be forwarded as radio signals for use by other devices;
	Bluetooth	BT4.2 (BR/EDR+BLE) Bluetooth standard
	network	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, during operation Continuous online, equipped with high-speed network communication module, compatible with various CORS system access.
	NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (requiring the manual to match) (Equipped with NFC wireless communication module)
WIFI	standard	802.11b/g/n standard, Supports 2.4g/5g Wi Fi
	WIFI hotspot	Equipped with WIFI hotspot function, any intelligent terminal can access the receiver
	WIFI hotspot	The data collector can transmit data to the receiver via WIFI
	WIFI data link	The receiver can be connected to WIFI, Spreading or receiving differential data through WIFI
data storage	data storage	Built in 16GB solid-state storage, supporting memory expansion
		Automatic cyclic storage (automatically deleting the earliest data when storage space is insufficient);
		Rich sampling intervals, supporting up to 20Hz of raw observation data collection;
	data format	Static data formats: STH format, Rinex format
		Differential data format: RTCM3.0, RTCM3.2 input and output
		GPS output data format: NMEA 0183, PJK plane coordinates, binary code
		Network mode support: VRS, FKP, MAC, supports NTRIP protocol
sensor	temperature sensor	Adopting intelligent variable frequency temperature control technology Surgery, real-time monitoring and adjustment Host temperature

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Customer Photos

Certifications

Company Profile

FAQ

Our Service

Packing & Delivery

Tags:

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

products details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

south rtk gnss

south gnss rtk receiver

gps rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

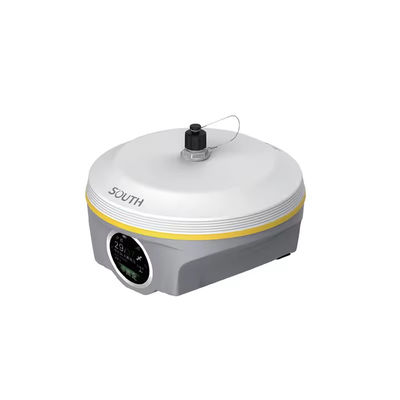

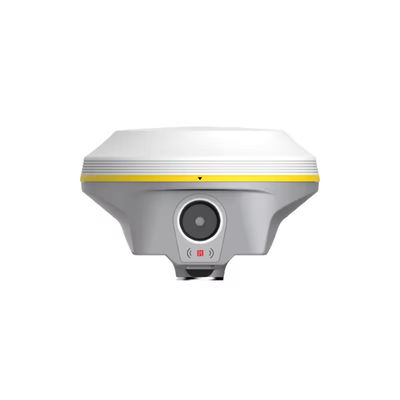

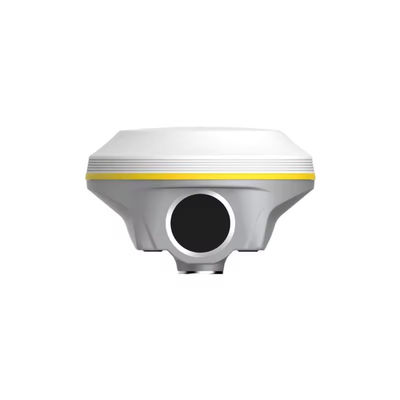

1598 channels SOUTH G7 Pro Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

south rtk gnss

south gnss rtk receiver

gps rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment
