1598 channels SOUTH G1 Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	SOUTH
Model Number:	G1
MOQ:	1 piece
Price:	$3,000.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver SOUTH G1

Customized Support:

OBM, ODM, OEM

Material:

Magnesium Alloy

Power:

Lithium Battery

Li-ion Battery Capacity:

6800 MAh

Channels:

1598

Water/dust- Proof:

IP67

Weight:

1kg

Supply Ability:

1 ~ 30 day

Highlight:

south rtk gnss

south gnss rtk receiver

gps rtk gnss

Product Description

1598 channels SOUTH G1 Topographic Instrument RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Description

Technical Parameters

SPECIFICATIONS
Satellite Signals Tracked Simultaneously
Signal tracking	1598 channels (optional)
	BeiDou (B1, B2, B3)
	GPS (L1C/A, LIC, L2E, L2C, L5)
	Galileo (E1, E5a, E5b, Alt-BOC, E6)
	Glonass (L1C/A, L1P, L2C/A, L2P, L3)
	SBAS (WAAS, EGNOS, MSAS, GAGAN), L-band, QZSS (L1 C/A, LIC, L2C, L5, LEX)
GNSS features	Positioning output rate:1Hz, 2Hz, 5Hz, 10Hz, 20Hz & 50Hz (depends on installed option)
	Initialization time:<10s
	Initialization reliability:>99.99%
Positioning precision
Code differential DGPS/RTCM Typically	Horizontal: 25cm+1ppm Vertical: 50cm+1ppm
SBAS positioning accuracy	Typically <5m 3DRMS
Static (phase) with long observations	Horizontal: 2.5mm+0.5ppm Vertical: 5mm+0.5ppm
Real-time Kinematic surveying	Horizontal: 8mm+1ppm Vertical: 15mm+1ppm
Network RTK	Horizontal: 8mm+0.5ppm Vertical: 15mm+0.5ppm
RTK initialization time	2~8s
User interaction
Operaing system	Linux
Buttons	Single button operation
Indicators	Three indicate lights
Web UI	Freely to configure and monitor the receiver by accessing to the web server via Wi-Fi and USB
Voice guide	iVoice intelligent voice technology provides status and voice guide
Voice guide	Supporting Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish and user define
Hardware performance
Dimension	129mm(Diameter)×112mm(Height)
Weight	1kg(battery included)
Material	Magnesium aluminum alloy shell
Operating	-45°C~+60°
Storag	-55°C~+85°C
Humidity	100% Non-condensing
Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 1m
Waterproof/Dustproof	IP68 standard, fully protected against blowing dust
Shock and vibration	Withstand 2 meters pole drop onto the cement ground naturally
PowerS Supply	9-25V DC, overvoltage protection
Battery	Rechargeable, removable Lithium-ion battery, 7.4V; standard four batteries power package(optional)
Communications
I/O port	5-PIN LEMO port, 7-PIN USB port (with OTG)
I/O port	1 TNC radio antenna interface, SIM card slot
UHF modem	Built-in radio, 1W/2W/3W switchable, typically work range can be 8KM
UHF modem	Radio and internet repeater switchable
Frequency Range	410-470MHz
Communication Protocol	TrimTalk, SOUTH, SOUTH+, SOUTHx, huace, ZHD, Satel
Cellular Mobile Network	TDD-LTE/FDD-LTE 4G network modem, downward compatible with WCDMA/CDMA2000 3G and GPRS/EDGE 2G
Double Module Bluetooth	BLEBluetooth 4.0 standard, support for android, ios cellphone connection
Double Module Bluetooth	Bluetooth 2.1 + EDR standard
NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller
NFC Communication	(controller equipped NFC wireless communication module needed)
WIFI
Standard	802.11 b/g standard
WIFI Hotspot	The WIFI hotspot allows any mobile terminal to connect and access to the internal webserver for the control
WIFI Hotspot	and moditor receiver
WIFI data link	To work as the datalink that receiver is able to broadcast and receive differential data via WIFI
Data storage/ Transmission
Data Storage	8GB SSD internal storage
	Support external USB storage and automatical cycle storage
	Changeable record interval, up to 50Hz raw data collection
Data Transmission	USB data transmission, supporting FTP/HTTP data download
Data Format	Differential data format: CMR+, SCMRx, RTCM 2.1, RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2
	GPS output data format: NMEA 0183, PJK plane coordinates, Binary code, Trimble GSOF
	Network model support: VRS, FKP, MAC, fully support NTRIP protocol
Inertial sensing system
Tilt survey (optional)	Built-in tilt compensator, correcting coordinates automatically according to the tilt direction and angle
Tilt survey (optional)	of the centering rod
Electronic bubble (optional)	Controller software display electronic bubble, checking leveling status of the centering rod real time
Thermometer	Built-in thermomter sensors, adopting intelligent temperature control technology which can mornitor and
Thermometer	adjust the temperature of receiver in real time

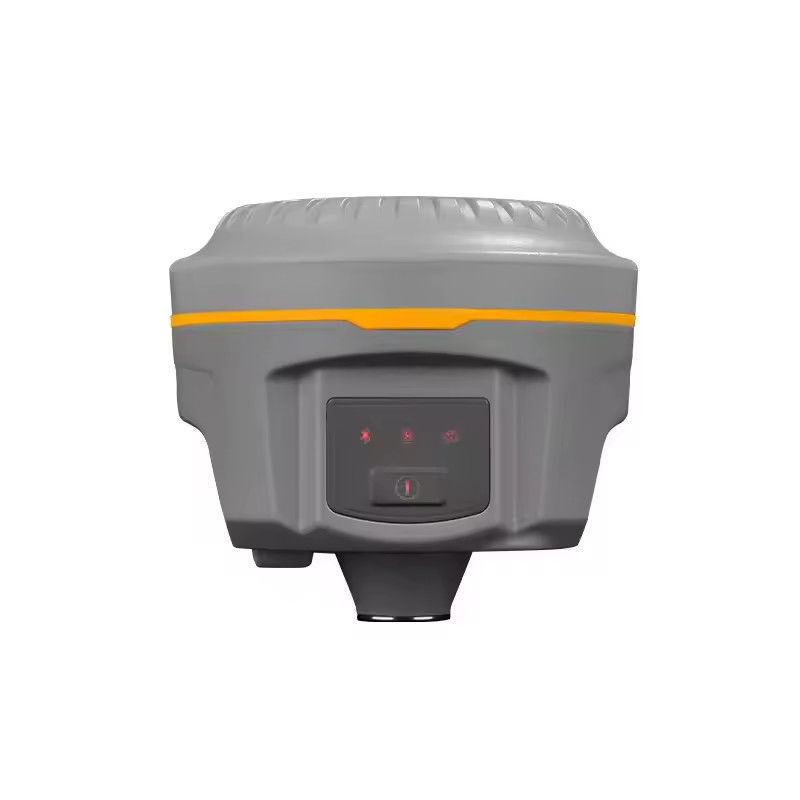

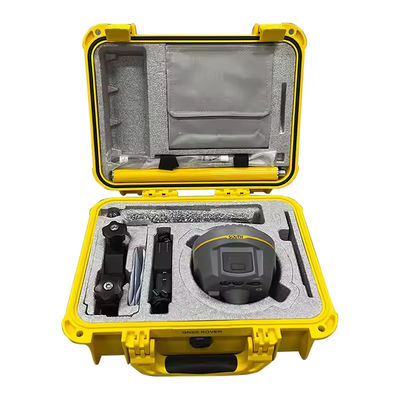

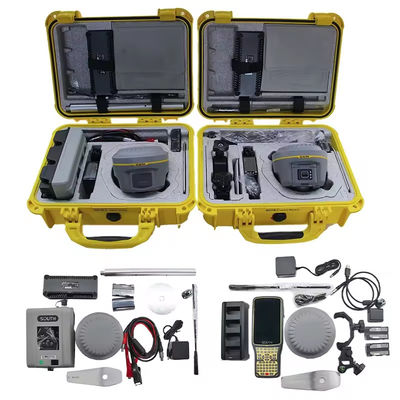

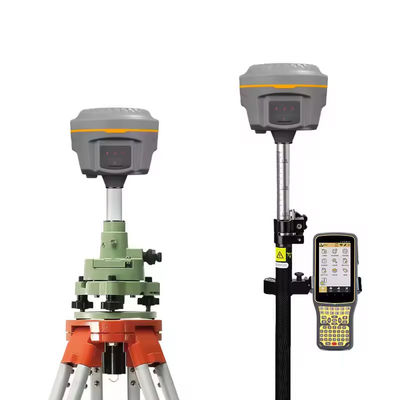

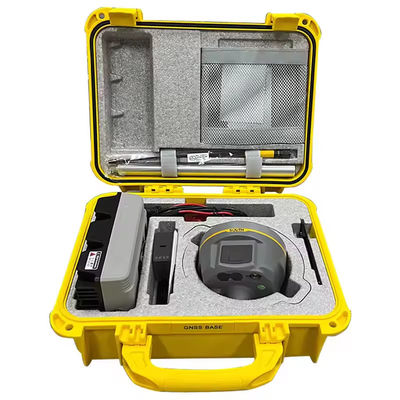

Product Display
