GNSS RTK Receiver

1598 channels Kolida K9 Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

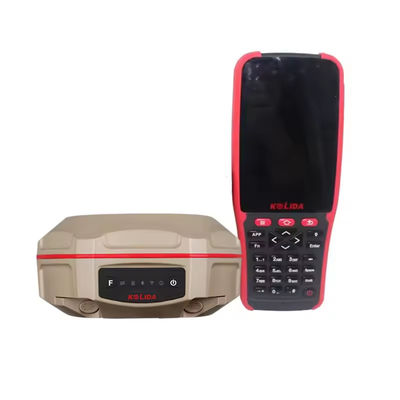

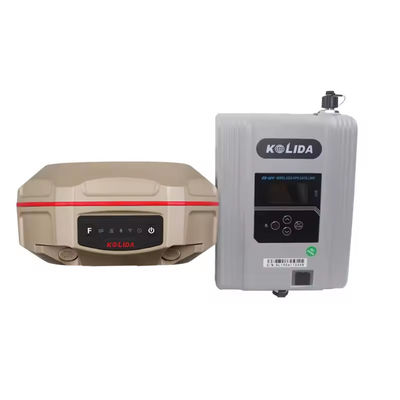

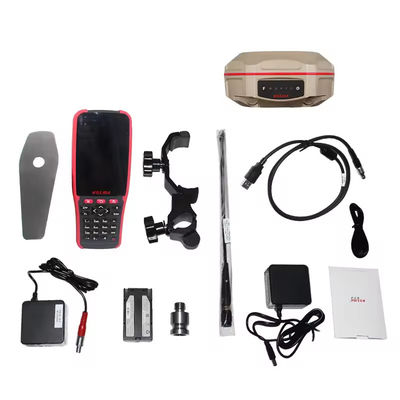

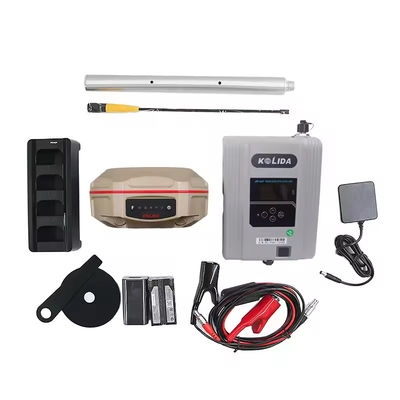

1598 channels Kolida K9 Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	Kolida
Model Number:	K9
MOQ:	1 piece
Price:	$4,200.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Kolida K9

Weight:

1.5kg

Internal Battery Life:

Static 12hours

Transmitting Speed:

9.6Kbps, 19.2Kbps

Transmitting Power:

0.5W, 1W, 2W Adjustable

Channels:

1598

GPS:

L1C/A, L1C,L2C, L2E, L5

Display:

LCD

Supply Ability:

1 ~ 30 day

Highlight:

rtk base rover gps

rtk gps base and rover

receiver base rover gps

Product Description

1598 channelsKolida K9 Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Description

Kolida's new K9 beyond version, with variable strain, strives to create a unique measurement operation, equipped with the latest generation of Beidou high-precision chips, supporting five stars and sixteen frequencies, and all constellation full frequency point calculation; Seamless connection for high-precision location services, with a unique radio antenna bracket design that enables 360 degree omnidirectional signal transmission, and an integrated built-in radio station with a typical operating distance of 10km.

Specification

allocation		Detailed indicators
Test performance	Signal tracking	BDS-2:B1I,B2I,B3I；BDS-3:B1I,B3I,B1C,B2a,B2b GPS: L1C/A,L2P,L2C,L5,L1C* GLONASS:G1,G2,G3；SBAS:L1C/A,L5 Galileo:E1,E5b,E5a,E5 AltBoc,E6c QZSS:L1,L2C,L5；IRNSS:L5* 1598 channels, supporting 5-star 16 frequency
Test performance	GNSS characteristics	Positioning output frequency 1Hz~50Hz The initialization time is less than 10 seconds Initialization reliability>99.99% All constellation reception technology, capable of supporting GNSS constellation signals from all current and planned sources High reliability carrier tracking technology improves carrier accuracy and provides high-quality raw observation data Intelligent dynamic sensitivity positioning technology, adaptable to various environmental changes and harsh, long-distance positioning environments High precision positioning processing engine
positioning accuracy	Code differential GNSS positioning	Horizontal: 0.25 m+1 ppm RMS Vertical: 0.50 m+1 ppm RMS SBAS differential positioning accuracy: typical
	Static measurement accuracy	Plane: ± (2.5+0.5 × 10-6 × D) mm Elevation: ± (5.0+0.5 × 10-6 × D) mm
	RTK measurement accuracy	Plane: ± (8+1 × 10-6 × D) mm Elevation: ± (15+1 × 10-6 × D) mm (D is the distance between the measured points, km)
Operating system/ User interaction	operating system	Linux
	Keys	Double key operation, convenient and fast
	Indicator light	Five indicator lights
	Web interaction	Built in Web UI management backend, supporting WiFi and USB mode access to the receiver's built-in Web UI management page, real-time monitoring of host status, and free configuration of hosts.
	speech	Intelligent voice technology, intelligent status broadcasting, voice operation prompts; Default support for Chinese, English, Korean, Russian Portuguese, Spanish, Turkish; Support voice customization
	Secondary development	Provide a secondary development package, open OpenSIC observation data format, and define interaction interfaces for secondary development
	Data cloud services	Web version cloud service management platform, supporting remote management and data exchange services such as online registration
hardware	size	175mm * 83mm (diameter, height)
	weight	1.06kg (without battery)
	material quality	Thermoplastic polyester and polycarbonate polymer materials
	temperature	Working temperature: -30 ° C to+65 ° C Storage temperature: -40 ° C to+80 ° C
	humidity	Anti 95% condensation
	Protection level	Waterproof: 1m immersion, IP67 level Dust prevention: completely prevents dust from entering, IP67 level
	Shockproof	Resistance to 2 meters of pole drop
electrical	source	9-28V wide voltage DC design with overvoltage protection
	battery	Dual battery power supply, supports hot swapping, with a battery capacity of 6800mAh
	material quality	Regular tasks meet a 10 hour battery life and can support other variable voltage power supply systems (providing a 7 * 24-hour continuous working power supply solution)
communication	I/O ports	5-core LEMO interface external power interface+RS232 7-core LEMO interface external USB (OTG) Radio and network antenna interfaces (shared); SIM card slot
	Radio modem	Built in high-performance integrated transceiver radio, with three levels of low, medium, and high (1W, 2W, 3W), typical operating distance of 10km, operating frequency of 410-470MHz, and switchable radio relay mode; External transmitter 5W/25W, operating frequency 410-470MHz Communication protocol: TrimTalk450S, TrimMark3, SOUTH
	Bluetooth	BLEBluetooth 4.0 Bluetooth standard, supporting Android system phone connection; Bluetooth 2.1+EDR standard
	NFC wireless communication	Using NFC wireless communication technology, the manual can automatically pair with the host by touching it (the manual also needs to be equipped with NFC wireless communication module)
	Cellular mobility	The manual supports 4G full network connectivity, based on intelligent PPP dialing technology, automatically dials in real-time, and is continuously online during work; External network antenna of the host, equipped with 4G high-speed network communication Module (supporting mobile, China Unicom, and telecommunications), compatible with 3G/GPRS/EDGE; Compatible with various CORS system access.
WIFI	standard	802.11b/g/n standard
	WIFI hotspot	Equipped with WIFI hotspot function, any intelligent terminal can access the receiver, providing rich personalized customization of receiver functions; Industrial notebooks, intelligent terminals, and other data collectors can transmit data to the receiver via WIFI
	WIFI data link	The receiver can be connected to WIFI for differential data broadcasting or reception
Data storage/transmission	data storage	8G built-in solid-state memory, supporting 32G external expansion; Automatic cyclic storage (automatically deleting the earliest data when storage space is insufficient); Supports external USB storage for Data storage; Rich sampling intervals, supporting up to 50Hz raw observation data collection
	data transmission	One click intelligent copying directly exports static data from the host through external USB storage; Plug and play USB data transmission method; FTP download, HTTP download
	data format	Static data formats: various formats such as Southern STH, Rinex2.01, and Rinex3.02 Differential data formats: CMR+, CMRx, RTCM2.1, RTCM2.3, RTCM3.0, RTCM3.1, RTCM3.2 input and output; GPS output data format: NMEA0183, PJK plane coordinates, binary code, TrimbleGSOF; Network mode support: VRS, FKP, MAC, supports NTRIP protocol
Inertial Navigation System/Sensors	Inertial tilt measurement (optional)	Built in IMU inertial measurement sensor, supporting inertial tilt measurement function to automatically correct coordinates based on the tilt direction and angle of the center pole
Inertial Navigation System/Sensors	temperature sensor	Equipped with multiple temperature sensors and intelligent variable frequency temperature control technology, it can monitor and adjust the host temperature in real-time

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

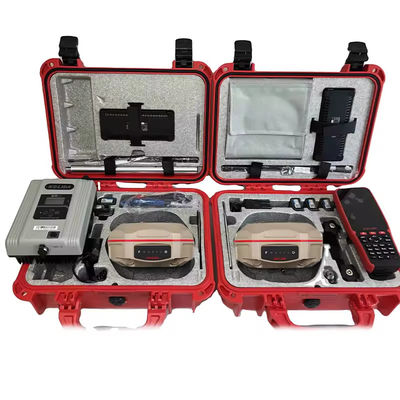

Packing & Delivery
