GNSS RTK Receiver

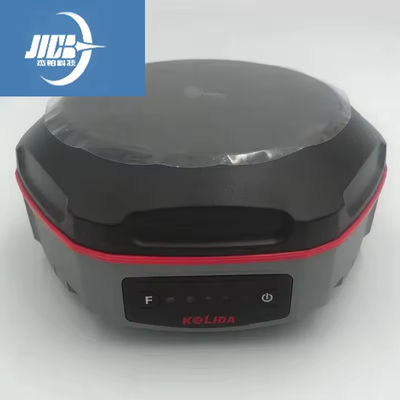

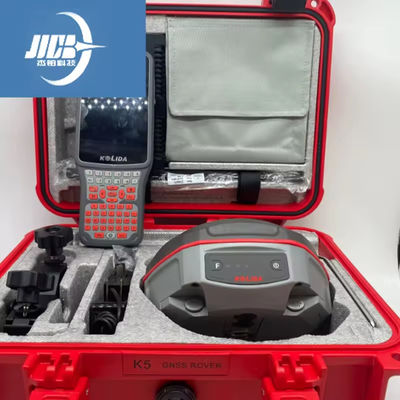

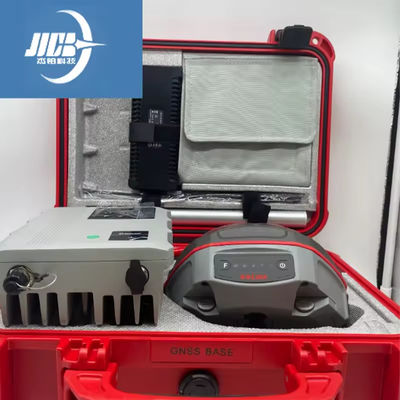

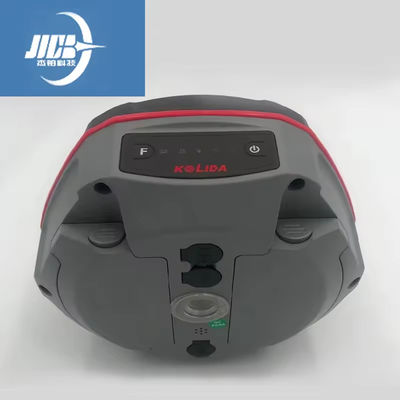

1598 channels Kolida K5 Pro Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

1598 channels Kolida K5 Pro Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	Kolida
Model Number:	K5 Pro
MOQ:	1 piece
Price:	$4,200.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Kolida K5 Pro

Customized Support:

OEM, ODM, OBM

Material:

Aluminum Alloy

Color:

Black

Power:

Li-ion Battery

Channels:

L1C/A,L2P,L2C,L5,L1C*

Internal Radio:

Transmitting And Receiving

Supply Ability:

1 ~ 30 day

Highlight:

rtk base rover gps

rtk gps base and rover

receiver base rover gps

Product Description

1598 channelsKolida K9 Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

1598 channels Kolida K5 Pro Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver 0

GNSS performance	Channels	1598
	GPS	L1, L1C, L2C, L2P, L5
	GLONASS	L1 C/A, L1P, L2C/A, L2P, L3
	BDS	BDS-2: B1I, B2I, B3I BDS-3: B1I, B3I, B1C, B2a, B2b
	GALILEO	E1, E5A, E5B, E6C, AltBOC
	SBAS	L1 WAAS/MSAS/EGNOS/GAGAN
	IRNSS	L5
	QZSS	L1, L2C, L5
	MSS L-Band	BDS-PPP
	Positioning output rate	1Hz~50Hz
	Initialization time	<10s
	Initialization reliability	>99.99%
Positioning precision	Code differential positioning	Horizontal: 0.25 m + 1 ppm RMS Vertical: 0.50 m + 1 ppm RMS
	Static(long observations)	Horizontal: 2.5 mm + 0.1 ppm RMS Vertical: 3 mm + 0.4 ppm RMS
	Static	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 3.5 mm + 0.5 ppm RMS
	PPK	Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 0.5 ppm RMS
	RTK(UHF)	Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS
	RTK(NTRIP)	Horizontal: 8 mm + 0.5 ppm RMS Vertical: 15 mm + 0.5 ppm RMS
	RTK initialization time	2-8s
	SBAS positioning	--
	SBAS positioning	Typically<1m 3DRMS
	BANDA-L	Horizontal: 5-10cm (5-30min) Vertical: 10-30cm (5-30min)
	IMU	Less than 10mm + 0.7 mm/° tilt to 30°
	IMU tilt angle	0° ~ 60°
User interaction	Operaing system	Linux
	Buttons	Single button operation
	Indicators	5 LED indicators
	Web interaction	With the access of the internal web interface management via WiFi or USB connection, users are able to monitor the receiver status and change the configurations freely
	Voice guide	It provides status and operation voice guidance, and supports Chinese/English/ Korean/Spanish/Portuguese/Russian/Turkish
	Secondary development	Provides secondary development package, and opens the OpenSIC observation data format and interaction interface definition-
	Data cloud service	The powerful cloud platform provides online services like remote manage, firmware update, online register and etc.
Hardware performance	Dimension	175mm( φ) × 83mm(H)
	Weight	1.06kg
	Material	Magnesium aluminum alloy shell
	Operating temperature	-30°C ~ +65°C
	Storag temperature	-40°C ~ +80°C
	Humidity	100% Non-condensing
	Waterproof/Dustproof	IP68 standard, protected from long time immersion to depth of 1m, and fully protected against blowing dust
	Shock and vibration	Withstand 2 meters drop onto the cement ground naturally MIL-STD 810G
	Power Supply	6-28V DC, overvoltage protection
	Battery	Inbuilt 6800mAh rechargeable, Li-ion battery
	Battery life	Single battery: 16h (static mode) 8h (Base + UHF) 12h (Rover RTK + UHF) 15h (Rover RTK+ Bluetooth)
Communications	I/O port	5PIN LEMO external power port + Rs232 Type-C interface (charge + OTG + Ethernet) 1 UHF antenna interface SIM card slot (Micro SIM)
	Internal UHF	2W radio, receive and transmit, radio router and radio repeater
	Frequency Range	400 - 480MHz
	Communication Protocol	Farlink, Trimtalk450s, SOUTH, SOUTH+, SOUTHx, HUACE, Hi-target, Satel
	Communication range	Typically 8km with Farlink protocol
	Cellular Mobile Network	4G cellular module standard, customizable 5G module
	Bluetooth	Bluetooth 3.0/4.1 standard, Bluetooth 2.1 + EDR
	NFC Communication	Realizing close range (shorter than 10cm) automatic pair between receiver and controller (controller requires NFC wireless communication module else)
WIFI	Modem	802.11 b/g standard
	WIFI Hotspot	Receiver broadcasts its hotspot form web UI accessing with any mobile terminals
	WIFI data link	Receiver can transmit and receive correction data stream via WiFi datalink
Data storage/ Transmission	Data Storage	8GB SSD internal storage standard, extendable up to 64GB Automatic cycle storage (The earliest data files will be removed automatically while the memory is not enough) Support external USB storage The customizable sample interval is up to 20Hz
	Data Transmission	Plug and play mode of USB data transmission Supports FTP/HTTP data download
	Data Format	Static data format: STH, Rinex2.1, Rinex3.2 and etc. Differential data format: RTCM 2.1,RTCM 2.3, RTCM 3.0, RTCM 3.1, RTCM 3.2 Output format: ASIC (NMEA-0813), Binary code (SOUTH Binary) Network model support: VRS, FK P, MAC, fully support NTRIP protocol
Sensors	Electronic bubble	Controller software can display electronic bubble, checking leveling status of the carbon pole in real-time
	IMU	Built-in IMU module, calibration-free and immue to magnetic interference
	Thermometer	Built-in thermometer sensor, adopting intelligent temperature control technology, monitoring and adjusting the receiver temperature

1598 channels Kolida K5 Pro Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver 1

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
