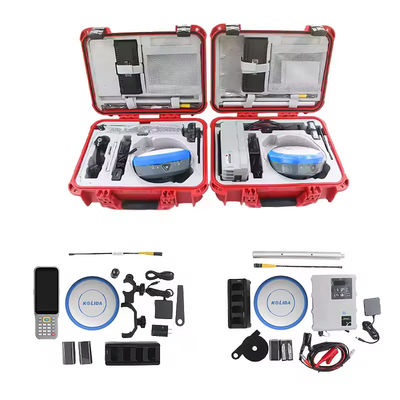

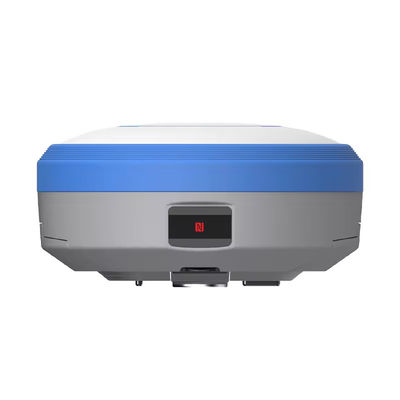

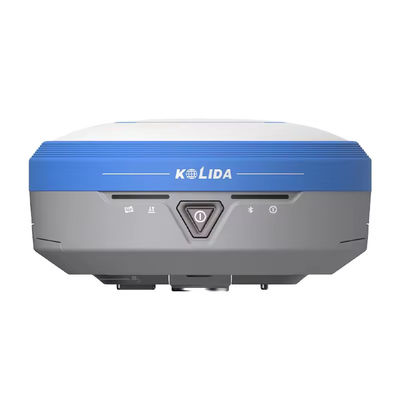

1598 channels Kolida k58/K7 Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	Kolida
Model Number:	k58/K7
MOQ:	1 piece
Price:	$2,900.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Kolida K58/K7

Customized Support:

OEM, ODM, OBM

Material:

Aluminum Alloy

Color:

Power:

Li-ion Battery

Channels:

L1C/A,L2P,L2C,L5,L1C*

Internal Radio:

Transmitting And Receiving

Supply Ability:

1 ~ 30 day

Highlight:

rtk base rover gps

rtk gps base and rover

receiver base rover gps

Product Description

1598 channels Kolida k58/K7 Gps Base and Rover RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

The Best-in-Class GNSS Engine

The integrated advanced 1598-channel GNSS technology helps K58plus to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in
particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.

Full function radio station

High performance integrated transceiver radio, based on the new Farlink radio communication technology,

Realize 10km transmission with built-in radio and ultra long distance reception above 15km;

Get rid of heavy burdens such as batteries and tripods, and a single host can achieve long-distance operations, Homework is lighter;

Intelligent locking of base stations, based on the Farlink "instant" protocol, using one-to-one signals Tracking and locking technology can achieve continuous tracking and locking of target base station signals Absolute string frequency and interference issues.

Down to 4-10 cm Positioning by L-band

Thanks to the newly developed BDS correction service, K58plus is able to receive B2b signal via L-band, and perform a single point
positioning precisely without base station.
It is a great help to surveyors who work in particularly difficult areas. This service is available in 2022 in Asian-Pacific
region.

Tilt angle is up to 60 degrees, accuracy is down to 2cm.

KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30%
from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in
a few seconds, no need to spend time to reactivate it.

External dual battery

Thanks to the low consumption operation system design, K58can work up to 15-20 hours in RTK rover mode, up to 20 hours in static mode. Type-C USB port is onboard now.
A reinforced battery compartment has been designed for K58plus, there are three times protection to prevent the battery "dropoff".

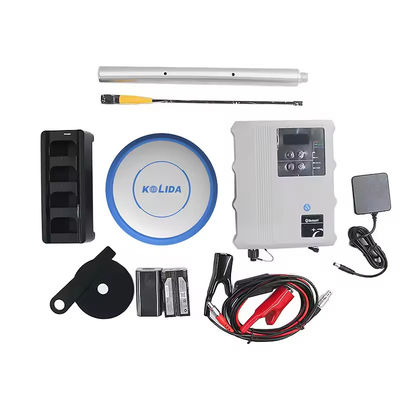

Aurora S7 wireless data transmission station

Supporting RTK radio protocols from domestic and mainstream brands, a brand new RF circuit provider Case, good heat dissipation characteristics, energy-saving and environmentally friendly digital tube display interface, user-friendly Control mode. Efficient data transmission, safer and faster long-distance operations.

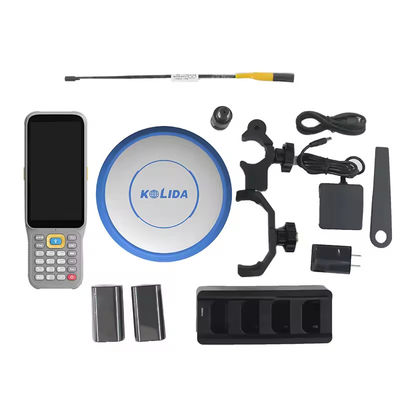

Data Collector

Technical Parameters

Measurement Performance	Signal tracking	BDS-2:B1I, B2I, B3I; BDS-3:B1I, B3I, B1C, B2a, B2b
		GPS:L1C/A,L2P,L2C,L5,L1C*
		GLONASS: G1, G2, G3; SBAS: L1C/A,L5
		Galileo: E1,E5b,E5a,E5 AltBoc,E6c
		QZSS: L1, L2C, L5; IRNSS: L5*
		1598 channels
	GNSS features	Positioning output frequency 1Hz to 20Hz; initialisation time less than 10 seconds
		Initialisation reliability >99.99%
		Full constellation reception technology, which can fully support signals from all current GNSS constellations
		Highly reliable carrier tracking technology, which greatly improves carrier accuracy and provides users with high quality raw observation data
		Intelligent dynamic sensitivity positioning technology, adapting to various environmental changes, adapting to harsher and more distant positioning environments
		Highly accurate positioning processing engine
Positioning Accuracy	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
		Vertical: 0.50 m + 1 ppm RMS
	Static CNSS measurements	Plane: ± (2.5mm + 0.5 x 10-6D); Elevation: ± (5mm + 0.5 x 10-6D); (D is the length of the baseline being measured, in mm)
	Real-time dynamic measurement	Plane: ± (8 mm + 1 x 10-6D); Elevation: ± (15 mm + 1 x 10-6D) (D is the length of the measured baseline in mm)
Operating Systems/User Interaction	Operating system: Linux
	Keypad: single button
	Indicator lights: Four indicator lights. Satellite light, differential signal light, Bluetooth light, power light
	Web interaction: support WI-FI and USB mode to access the receiver built-in Web management page, monitor the host status, free configuration of the host, etc.
	Voice: iVoice intelligent voice technology, intelligent status announcement, voice operation prompt; default support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish
	Secondary development: provide secondary development package, open OpenSIC observation data format and interaction interface definition for secondary development
	Data cloud service: powerful cloud service management platform, allowing remote management and configuration of equipment, viewing progress, managing jobs, etc. Can use Qualitec servers or build your own servers
Hardware	Size: 156mm*78mm (diameter, height)
	Weight: 1.3kg (with battery)
	Material: magnesium alloy
	Operating temperature: -30 °C to +70 °C; storage temperature: -40 °C to +80 °C
	Humidity resistant to 100% condensation
	Protection class: IP68, waterproof: 1m immersion, dustproof: completely protected against dust ingress
	Resistant to a 2 m drop with a pole
Electrical	Power supply: 6~28V wide voltage DC design with overvoltage protection
	Battery: detachable dual battery design, support hot-swappable, voltage: 7.4V, 3400mAh/block
	Power solution: Mobile station mode, typical endurance time >20 hours at full charge, support battery power supply, rechargeable battery power supply
Communication	I/O ports	5 pole LEMO external power connector + RS232
		Type-C interface for power supply, data transmission
		One radio antenna port
		Micro SIM card slot (medium card)
	Radio modems	Built-in transceiver radio, typical operating distance 10km; support radio relay, network routing function.
		Operating frequency 410-470MHz; communication protocols: Farlink,TrimTalk450S,ZHD,SOUTH,HUACE,Satel
	4G all-access	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during work; built-in network antenna
		Equipped with a 4G tell-tale network communication module, compatible with various CORS systems access
	Bluetooth	Bluetooth 3.0/4.1.
		Bluetooth 2.1+EDR standard
	NFC wireless communication	NFC wireless communication technology, Bluetooth automatic pairing can be achieved by touching the handbook and the main unit (requires handbook also equipped with NFC wireless communication module)
	eSIM (optional)	The eSIM chip can be embedded in the handbook to provide network resources in real time to ensure continuous online network operation of the host computer, supporting external card solutions
WIFI	Standard	802.11b/g/n standards
	WIFI Hotspot	With WIFI hotspot function, any intelligent terminal can be connected to the receiver for rich personalization of the receiver functions
		Data transfer between industrial handbooks, intelligent terminals and other data collectors and receivers via WIFI
	WIFI data chain	Receiver can be connected to WIFI for differential data broadcast or reception via WIFI
Data Storage/Transfer	Data storage	8G internal solid state memory
		Auto-cycle storage (automatically delete the earliest data when there is not enough storage space)
		Supports external USB memory for data storage
		Rich sampling interval, up to 20Hz raw observation data acquisition
	Data transfer	One-button intelligent copy of static data directly from the host computer via external USB memory
		Plug-and-play USB data transfer method
		Supports USB, FTP download, HTTP data transfer
	Data format	Static data formats: Southern STH, Rinex 2.01 and Rinex 3.02 and many more
		Differential data formats: RTCM3.0, RTCM3.2
		GPS output data formats: NMEA 0183, PJK planar coordinates, binary codes
		Network mode support: VRS, FKP, MAC, NTRIP protocol support
Sensors	Inertial tilt measurement	Built-in IMU inertial measurement sensor, supports inertial tilt measurement function, automatically corrects coordinates according to the tilt direction and angle of the centering rod
		Tilt angle: 0°～60°; IMU update rate: 200HZ
	Tilt compensation accuracy	1.8 m pole; RMS: 8 mm + 0.7 mm/°tilt
	Temperature sensors	Built-in multiple temperature sensors, using intelligent frequency conversion temperature control technology, real-time monitoring and adjustment of the host temperature
