1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	Kolida
Model Number:	K58Plus/Tianxing 1
MOQ:	1 piece
Price:	$2,900.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Kolida K58Plus/Tianxing 1

Customized Support:

OEM, ODM, OBM

Material:

Aluminum Alloy

Color:

Power:

Li-ion Battery

Channels:

Data Storage:

8GB, Support External 32G

Internal Radio:

Transmitting And Receiving

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

Product Description

1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

Measurement Performance	Signal tracking	BDS-2:B1I, B2I, B3I; BDS-3:B1I, B3I, B1C, B2a, B2b
		GPS:L1C/A,L2P,L2C,L5,L1C*
		GLONASS: G1, G2, G3; SBAS: L1C/A,L5
		Galileo: E1,E5b,E5a,E5 AltBoc,E6c
		QZSS: L1, L2C, L5; IRNSS: L5*
		1598 channels
	GNSS features	Positioning output frequency 1Hz to 20Hz; initialisation time less than 10 seconds
		Initialisation reliability >99.99%
		Full constellation reception technology, which can fully support signals from all current GNSS constellations
		Highly reliable carrier tracking technology, which greatly improves carrier accuracy and provides users with high quality raw observation data
		Intelligent dynamic sensitivity positioning technology, adapting to various environmental changes, adapting to harsher and more distant positioning environments
		Highly accurate positioning processing engine
Positioning Accuracy	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
		Vertical: 0.50 m + 1 ppm RMS
	Static CNSS measurements	Plane: ± (2.5mm + 0.5 x 10-6D); Elevation: ± (5mm + 0.5 x 10-6D); (D is the length of the baseline being measured, in mm)
	Real-time dynamic measurement	Plane: ± (8 mm + 1 x 10-6D); Elevation: ± (15 mm + 1 x 10-6D) (D is the length of the measured baseline in mm)
Operating Systems/User Interaction	Operating system: Linux
	Keypad: single button
	Indicator lights: Four indicator lights. Satellite light, differential signal light, Bluetooth light, power light
	Web interaction: support WI-FI and USB mode to access the receiver built-in Web management page, monitor the host status, free configuration of the host, etc.
	Voice: iVoice intelligent voice technology, intelligent status announcement, voice operation prompt; default support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish
	Secondary development: provide secondary development package, open OpenSIC observation data format and interaction interface definition for secondary development
	Data cloud service: powerful cloud service management platform, allowing remote management and configuration of equipment, viewing progress, managing jobs, etc. Can use Qualitec servers or build your own servers
Hardware	Size: 156mm*78mm (diameter, height)
	Weight: 1.3kg (with battery)
	Material: magnesium alloy
	Operating temperature: -30 °C to +70 °C; storage temperature: -40 °C to +80 °C
	Humidity resistant to 100% condensation
	Protection class: IP68, waterproof: 1m immersion, dustproof: completely protected against dust ingress
	Resistant to a 2 m drop with a pole
Electrical	Power supply: 6~28V wide voltage DC design with overvoltage protection
	Battery: detachable dual battery design, support hot-swappable, voltage: 7.4V, 3400mAh/block
	Power solution: Mobile station mode, typical endurance time >20 hours at full charge, support battery power supply, rechargeable battery power supply
Communication	I/O ports	5 pole LEMO external power connector + RS232
		Type-C interface for power supply, data transmission
		One radio antenna port
		Micro SIM card slot (medium card)
	Radio modems	Built-in transceiver radio, typical operating distance 10km; support radio relay, network routing function.
		Operating frequency 410-470MHz; communication protocols: Farlink,TrimTalk450S,ZHD,SOUTH,HUACE,Satel
	4G all-access	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during work; built-in network antenna
		Equipped with a 4G tell-tale network communication module, compatible with various CORS systems access
	Bluetooth	Bluetooth 3.0/4.1.
		Bluetooth 2.1+EDR standard
	NFC wireless communication	NFC wireless communication technology, Bluetooth automatic pairing can be achieved by touching the handbook and the main unit (requires handbook also equipped with NFC wireless communication module)
	eSIM (optional)	The eSIM chip can be embedded in the handbook to provide network resources in real time to ensure continuous online network operation of the host computer, supporting external card solutions
WIFI	Standard	802.11b/g/n standards
	WIFI Hotspot	With WIFI hotspot function, any intelligent terminal can be connected to the receiver for rich personalization of the receiver functions
		Data transfer between industrial handbooks, intelligent terminals and other data collectors and receivers via WIFI
	WIFI data chain	Receiver can be connected to WIFI for differential data broadcast or reception via WIFI
Data Storage/Transfer	Data storage	8G internal solid state memory
		Auto-cycle storage (automatically delete the earliest data when there is not enough storage space)
		Supports external USB memory for data storage
		Rich sampling interval, up to 20Hz raw observation data acquisition
	Data transfer	One-button intelligent copy of static data directly from the host computer via external USB memory
		Plug-and-play USB data transfer method
		Supports USB, FTP download, HTTP data transfer
	Data format	Static data formats: Southern STH, Rinex 2.01 and Rinex 3.02 and many more
		Differential data formats: RTCM3.0, RTCM3.2
		GPS output data formats: NMEA 0183, PJK planar coordinates, binary codes
		Network mode support: VRS, FKP, MAC, NTRIP protocol support
Sensors	Inertial tilt measurement	Built-in IMU inertial measurement sensor, supports inertial tilt measurement function, automatically corrects coordinates according to the tilt direction and angle of the centering rod
		Tilt angle: 0°～60°; IMU update rate: 200HZ
	Tilt compensation accuracy	1.8 m pole; RMS: 8 mm + 0.7 mm/°tilt
	Temperature sensors	Built-in multiple temperature sensors, using intelligent frequency conversion temperature control technology, real-time monitoring and adjustment of the host temperature

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

Home > Products >

GNSS RTK Receiver

1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

All Category

1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	Kolida
Model Number:	K58Plus/Tianxing 1
MOQ:	1 piece
Price:	$2,900.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

Kolida

Model Number:

K58Plus/Tianxing 1

Product Name:

RTK Receiver Kolida K58Plus/Tianxing 1

Customized Support:

OEM, ODM, OBM

Material:

Aluminum Alloy

Color:

Red

Power:

Li-ion Battery

Channels:

1598

Data Storage:

8GB, Support External 32G

Internal Radio:

Transmitting And Receiving

Minimum Order Quantity:

1 piece

Price:

$2,900.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

Product Description

1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

Measurement Performance	Signal tracking	BDS-2:B1I, B2I, B3I; BDS-3:B1I, B3I, B1C, B2a, B2b
		GPS:L1C/A,L2P,L2C,L5,L1C*
		GLONASS: G1, G2, G3; SBAS: L1C/A,L5
		Galileo: E1,E5b,E5a,E5 AltBoc,E6c
		QZSS: L1, L2C, L5; IRNSS: L5*
		1598 channels
	GNSS features	Positioning output frequency 1Hz to 20Hz; initialisation time less than 10 seconds
		Initialisation reliability >99.99%
		Full constellation reception technology, which can fully support signals from all current GNSS constellations
		Highly reliable carrier tracking technology, which greatly improves carrier accuracy and provides users with high quality raw observation data
		Intelligent dynamic sensitivity positioning technology, adapting to various environmental changes, adapting to harsher and more distant positioning environments
		Highly accurate positioning processing engine
Positioning Accuracy	Code differential GNSS positioning	Horizontal: 0.25 m + 1 ppm RMS
		Vertical: 0.50 m + 1 ppm RMS
	Static CNSS measurements	Plane: ± (2.5mm + 0.5 x 10-6D); Elevation: ± (5mm + 0.5 x 10-6D); (D is the length of the baseline being measured, in mm)
	Real-time dynamic measurement	Plane: ± (8 mm + 1 x 10-6D); Elevation: ± (15 mm + 1 x 10-6D) (D is the length of the measured baseline in mm)
Operating Systems/User Interaction	Operating system: Linux
	Keypad: single button
	Indicator lights: Four indicator lights. Satellite light, differential signal light, Bluetooth light, power light
	Web interaction: support WI-FI and USB mode to access the receiver built-in Web management page, monitor the host status, free configuration of the host, etc.
	Voice: iVoice intelligent voice technology, intelligent status announcement, voice operation prompt; default support for Chinese, English, Korean, Russian, Portuguese, Spanish, Turkish
	Secondary development: provide secondary development package, open OpenSIC observation data format and interaction interface definition for secondary development
	Data cloud service: powerful cloud service management platform, allowing remote management and configuration of equipment, viewing progress, managing jobs, etc. Can use Qualitec servers or build your own servers
Hardware	Size: 156mm*78mm (diameter, height)
	Weight: 1.3kg (with battery)
	Material: magnesium alloy
	Operating temperature: -30 °C to +70 °C; storage temperature: -40 °C to +80 °C
	Humidity resistant to 100% condensation
	Protection class: IP68, waterproof: 1m immersion, dustproof: completely protected against dust ingress
	Resistant to a 2 m drop with a pole
Electrical	Power supply: 6~28V wide voltage DC design with overvoltage protection
	Battery: detachable dual battery design, support hot-swappable, voltage: 7.4V, 3400mAh/block
	Power solution: Mobile station mode, typical endurance time >20 hours at full charge, support battery power supply, rechargeable battery power supply
Communication	I/O ports	5 pole LEMO external power connector + RS232
		Type-C interface for power supply, data transmission
		One radio antenna port
		Micro SIM card slot (medium card)
	Radio modems	Built-in transceiver radio, typical operating distance 10km; support radio relay, network routing function.
		Operating frequency 410-470MHz; communication protocols: Farlink,TrimTalk450S,ZHD,SOUTH,HUACE,Satel
	4G all-access	Intelligent PPP dialing technology based on Linux platform, automatic real-time dialing, continuous online during work; built-in network antenna
		Equipped with a 4G tell-tale network communication module, compatible with various CORS systems access
	Bluetooth	Bluetooth 3.0/4.1.
		Bluetooth 2.1+EDR standard
	NFC wireless communication	NFC wireless communication technology, Bluetooth automatic pairing can be achieved by touching the handbook and the main unit (requires handbook also equipped with NFC wireless communication module)
	eSIM (optional)	The eSIM chip can be embedded in the handbook to provide network resources in real time to ensure continuous online network operation of the host computer, supporting external card solutions
WIFI	Standard	802.11b/g/n standards
	WIFI Hotspot	With WIFI hotspot function, any intelligent terminal can be connected to the receiver for rich personalization of the receiver functions
		Data transfer between industrial handbooks, intelligent terminals and other data collectors and receivers via WIFI
	WIFI data chain	Receiver can be connected to WIFI for differential data broadcast or reception via WIFI
Data Storage/Transfer	Data storage	8G internal solid state memory
		Auto-cycle storage (automatically delete the earliest data when there is not enough storage space)
		Supports external USB memory for data storage
		Rich sampling interval, up to 20Hz raw observation data acquisition
	Data transfer	One-button intelligent copy of static data directly from the host computer via external USB memory
		Plug-and-play USB data transfer method
		Supports USB, FTP download, HTTP data transfer
	Data format	Static data formats: Southern STH, Rinex 2.01 and Rinex 3.02 and many more
		Differential data formats: RTCM3.0, RTCM3.2
		GPS output data formats: NMEA 0183, PJK planar coordinates, binary codes
		Network mode support: VRS, FKP, MAC, NTRIP protocol support
Sensors	Inertial tilt measurement	Built-in IMU inertial measurement sensor, supports inertial tilt measurement function, automatically corrects coordinates according to the tilt direction and angle of the centering rod
		Tilt angle: 0°～60°; IMU update rate: 200HZ
	Tilt compensation accuracy	1.8 m pole; RMS: 8 mm + 0.7 mm/°tilt
	Temperature sensors	Built-in multiple temperature sensors, using intelligent frequency conversion temperature control technology, real-time monitoring and adjustment of the host temperature

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Customer Photos

Certifications

Company Profile

FAQ

Our Service

Packing & Delivery

Tags:

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

products details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

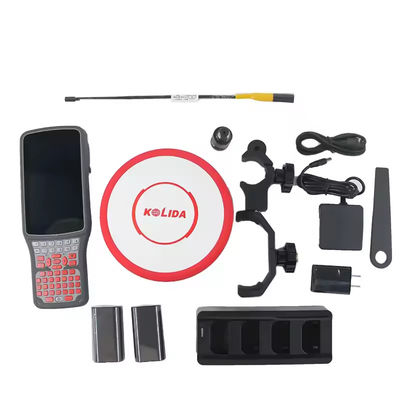

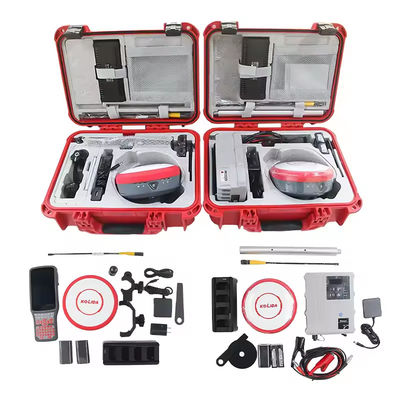

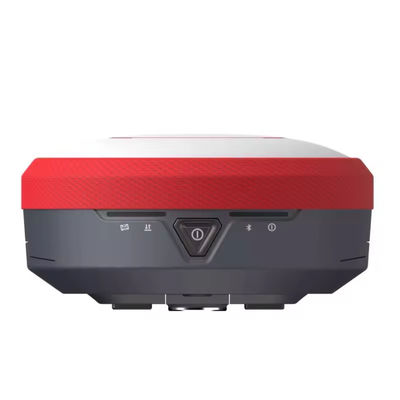

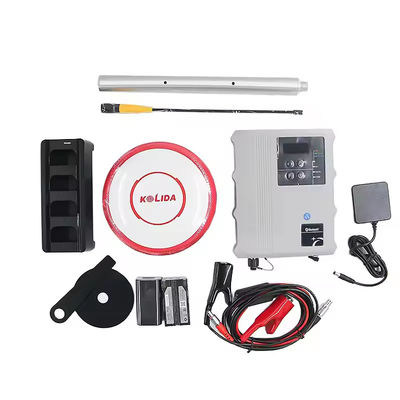

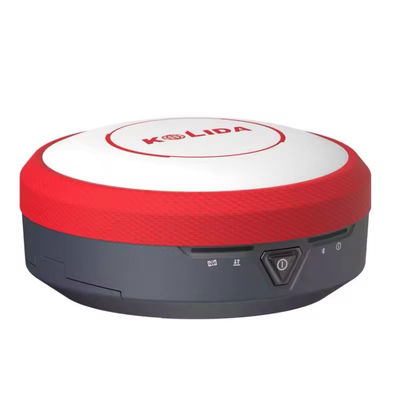

1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

1598 channels Kolida K58Plus/Tianxing 1 Base and Rover Station RTK Surveying Equipment High Accuracy Gps Receiver

gps rtk gnss

gps gnss rtk receiver

receiver rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment
