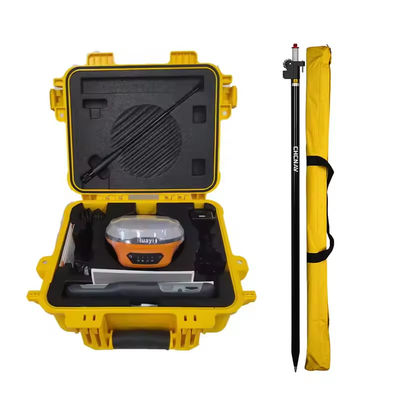

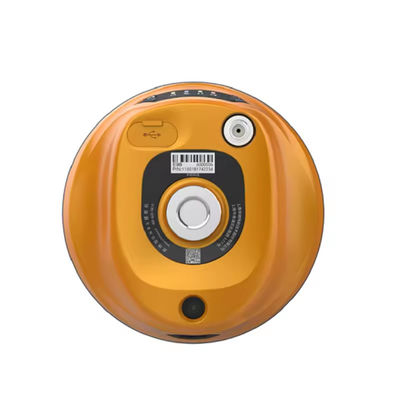

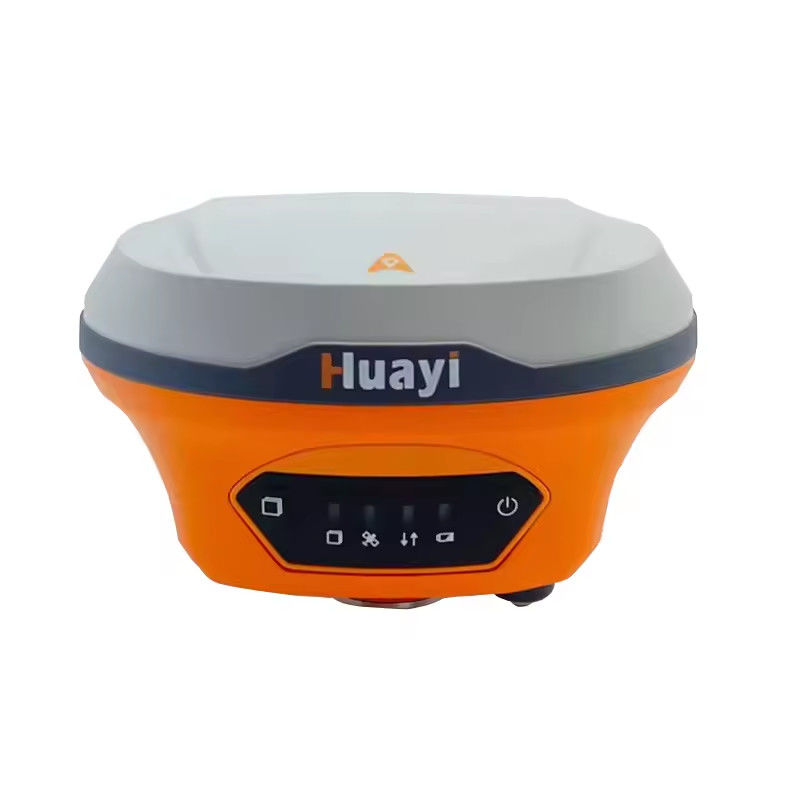

1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	CHCNAV
Model Number:	I73/E300
MOQ:	1 piece
Price:	$2,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

GNSS RTK Receiver CHCNAV I73/E300

Customized Support:

OEM, ODM, OBM

Internal Battery Life:

Static 12hours

Weight:

1.5kg

Data Storage:

8G Internal Storage

Channels:

Application:

Land Surveying

L1 ,L2, L5

Supply Ability:

1 ~ 30 day

Highlight:

chcnav rtk gnss

chcnav gnss rtk receiver

gps rtk gnss

Product Description

1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

project	content	parameter
Receiver characteristics	satellite tracking	GPS+BDS+Glonass+Galileo+QZSS, supports the third generation of Beidou, supports five-star 16-band
	number of channels	1408 channels
	operating system	LINUX system
	Initialization time	<5s (typ.)
	Initialization reliability	>99.99%
Receiver appearance	button	1 dynamic/static switch key, 1 power key
Receiver appearance	Indicator light	1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy	Static accuracy	Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
	Static accuracy	Elevation accuracy: ±(5+0.5×10-6×D) mm
	RTK accuracy	Plane accuracy: ±(8 + 1×10-6×D) mm
	RTK accuracy	Elevation accuracy: ±(15+ 1×10-6×D) mm
	Single machine accuracy	1.5m
	Code difference accuracy	Plane accuracy: ±(0.25 + 1×10-6×D) m
	Code difference accuracy	Elevation accuracy: ±(0.5+ 1×10-6×D) m
Electrification parameters	Battery	Built-in 6800mAh lithium battery, supports 15 hours battery life of mobile station
Electrification parameters	External power supply	Support USB port external power supply
Physical properties	Size (LWH)	119mm119mm85mm
	weight	0.73kg
	Material	Magnesium alloy AZ91D body
	Operating temperature	-45℃~+75℃
	storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 level
	Shock vibration	IK08 level
	Anti-drop	Resistance to free fall of 2 meters
Data output	Output format	NMEA 0183, binary code
Data output	output method	BT/Wi-Fi/Radio
Static storage	storage format	Can directly record HCN, HRC, RINEX
	storage	Standard 8GB built-in storage
	Download method	Universal USB data download; HTTP download
Data communication	I/O interface	1 external UHF antenna interface
	I/O interface	1 USB-TypeC interface, support charging, power supply, data download
	Network module	Handbook supports 4G full Netcom
	Radio station	Built-in high-frequency 450-470MHz single-receiving radio
	Blue tooth	BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
	data transmission	Wi-Fi data link
	Wi-Fi	802.11 b/g/n
	NFC	Support NFC flash connection
Receiver function	Super double collection	Support radio + network two-way data differential at the same time, provide comprehensive data services
Receiver function	One-click matching	Support handbook software to match base station data with one key
Handbook parameters	model	HCE600 Android Measuring Handbook
	The internet	4G full Netcom, built-in eSIM free of three years of surveying and mapping traffic
	operating system	Android 10
	CPU	Eight-core 2.0Ghz processor
	LCD screen	5.5'' HD display
	Battery	14 hours of battery life
	Three defenses	IP68

Product Display

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
