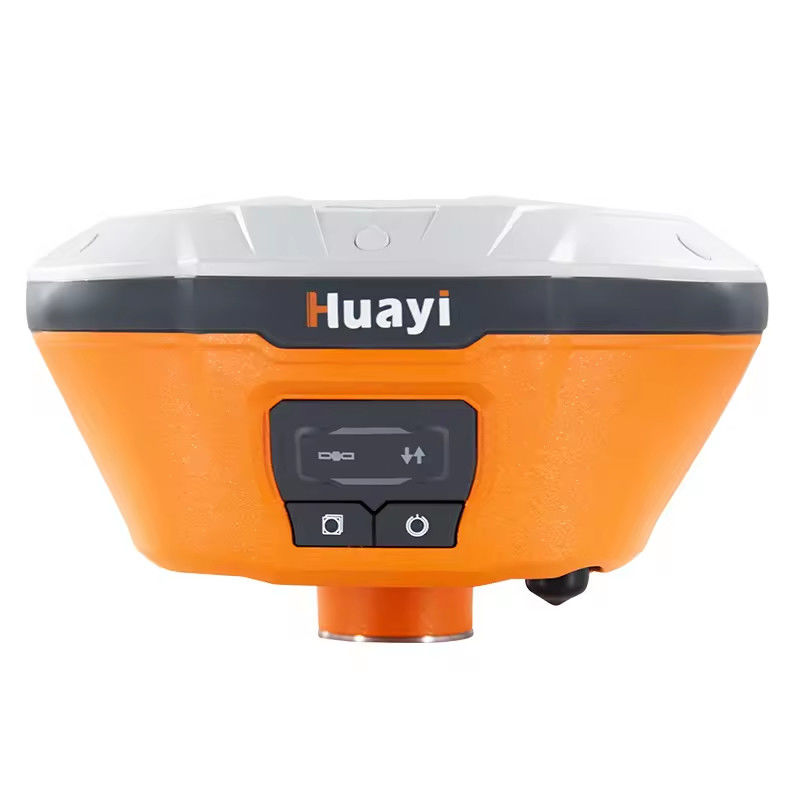

1408 channels CHCNAV E98 RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	CHCNAV
Model Number:	E98
MOQ:	1 piece
Price:	$3,100.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

GNSS RTK Receiver CHCNAV I73/E300

Customized Support:

OEM, ODM, OBM

Application:

Land Surveying

Function:

GPS RTK Survey (Radio

Data Storage:

8G Internal Storage

Channels:

1408

Battery:

6000mAh

Waterproof And Dustproof:

IP68

Supply Ability:

1 ~ 30 day

Highlight:

chcnav rtk gnss

chcnav gnss rtk receiver

gps rtk gnss

Product Description

1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

Product parameters DINGSHENG

TECHNICAL PARAMETER CHCNAV E98
item	Content	Parameters
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS
		Support the third generation of Beidou and the Five Star 21 frequency point

	Satellite tracking [1]	BDS: B11,B21,B3I,B1C,B2a,B2b*
		GPS: L1C/A,L1C,L2C,L2PL5
		GLONASS: G1,G2,G3
		Galileo: E1,ESa,ESb,E6*
		QZSS: LIC/A,LIC,L2C,L5
		IRNSS: L5*
		SBAS: LIC/A*
	Number of channels	1408
	Initialize reliability	99.99%
	No net continuation	Support
	Anti-jamming	Built-in multi-frequency anti-jamming technology, effectively improve the fixed effect in harsh environments
	Anti-jamming
Accuracy [2]	Static accuracy	Planar accuracy±(2.5mm+0.5x10-6xD)mm
	Static accuracy	Elevation accuracy :+(5mm + 0.5x10-6xD)mm
	RTK accuracy	Plane accuracy :±(8mm + 1x106xD)mm
	RTK accuracy	Elevation accuracy :+(15mm + 1x10-6xD)mm
	Tilt compensation accuracy	8mm+ 0.3mm /*tilt(accuracy <2.5cm within 30°)
	Video measurement accuracy	Typical 2-4cm measuring distance 2-15 meters
GNSS+ Inertial navigation	IMU update rate	200Hz
	Tilt Angle	0-60 °
	Non-inductive super inertial	There is no need for initialization, the INS will not exit after the initialization is complete
	Non-inductive super inertial
User interaction	Indicators	1 satellite light +1 differential data light +1 static indicator light +1 power light
	Indicators
	Keys	Static Toggle key + Power/Confirm heald
	web pages	Support PC/ mobile side web pages
	Voice	Support for hand-book voice broadcasting
Featured Features [3]	Camera	Video measurement, efficiency increased by 60%*
		3D modeling, double the efficiency of internal and external work *

		AR reality navigation, don't get lost
		Visual lofting, put a rod in place
	Yousu	2MP&5MP
	Frame rate	25Hz
	Field of view (H,V)	75 degrees, 75 degrees
	Illuminance	Starlight camera, OmniPixel 3-GS technology
	Illuminance	Maintain full color picture at 0.01lux illumination
Physical characteristics	Size	Φ 133.5 mm * 80 mm
	weight	725g (including battery)
	texture of material	Magnesium alloy
	Operating temperature	1- 45 ° ℃ - + 75 ° ℃
	Storage temperature	1- 55 ° ℃ to + 85 ° ℃
Electrical performance [4]	battery	Mobile stations typically last more than 16h
	Fast Charge	Support fast charge, charge for 1 hour, typical battery life of more than 8 hours
	Fast Charge
	External power supply	DC 5-12V
	Storage	8GB with support for external expansion 128G (USB /TF card)
	Storage	8GB with support for external expansion 128G (USB /TF card)
Data Output	Differential data	RTCM2.X, RTCM3.X, CMR, CHC516
	Location data	NMEA-0183
	Static data	HCN, RINEX 2.11, RINEX3.02
Data communication	Wireless connection	Wi-Fi data link support
	Wi-Fi	Wi-Fi IEEE 802.11a/b/g/n/ac
	Bluetooth	5.0 & 4.2 +EDR, backward compatible
	Network module	Mobile phone support 4G full Netcom
	Radio	Built-in single receiver radio, support Huatou /TT450/ transparent transmission protocol, compatible with the market mainstream model radio protocol



Advanced Features	Online upgrade	Support remote push receiver upgrades
	One-click fixation	Bring your own CORS account so it can be fixed when you turn it on
	One-click fixation
	Smart Services	Support Huatai cloud services, provide cloud storage, function code sharing
	Smart Services
	Online upgrade	Support remote push receiver upgrades
Control hand book	Model number	iD3
	network	4G full Netcom
	network	4G full Netcom
	Operating system	Android 10
	CPU	Octa-core 2.0GHz
	RAM+ROM	3GB+32GB
	LCD screen	5.5 "HD display
	Physical keys	full function keys with support for measurement shortcuts
	Physical keys	full function keys with support for measurement shortcuts
	Camera	1300w
	Battery [4]	Typical battery life of 14 hours
	Water and dust resistant	IP68

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery

Tags:

Products Details

Home > Products >

GNSS RTK Receiver

1408 channels CHCNAV E98 RTK Surveying Equipment High Accuracy Gps Receiver

All Category

1408 channels CHCNAV E98 RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	CHCNAV
Model Number:	E98
MOQ:	1 piece
Price:	$3,100.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Brand Name:

CHCNAV

Model Number:

E98

Product Name:

GNSS RTK Receiver CHCNAV I73/E300

Customized Support:

OEM, ODM, OBM

Application:

Land Surveying

Function:

GPS RTK Survey (Radio

Data Storage:

8G Internal Storage

Channels:

1408

Battery:

6000mAh

Waterproof And Dustproof:

IP68

Minimum Order Quantity:

1 piece

Price:

$3,100.00

Delivery Time:

30 work day

Payment Terms:

L/C, T/T

Supply Ability:

1 ~ 30 day

Highlight:

chcnav rtk gnss

chcnav gnss rtk receiver

gps rtk gnss

Product Description

1408 channels CHCNAV I73/E300 RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

Product parameters DINGSHENG

TECHNICAL PARAMETER CHCNAV E98
item	Content	Parameters
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS
		Support the third generation of Beidou and the Five Star 21 frequency point

	Satellite tracking [1]	BDS: B11,B21,B3I,B1C,B2a,B2b*
		GPS: L1C/A,L1C,L2C,L2PL5
		GLONASS: G1,G2,G3
		Galileo: E1,ESa,ESb,E6*
		QZSS: LIC/A,LIC,L2C,L5
		IRNSS: L5*
		SBAS: LIC/A*
	Number of channels	1408
	Initialize reliability	99.99%
	No net continuation	Support
	Anti-jamming	Built-in multi-frequency anti-jamming technology, effectively improve the fixed effect in harsh environments
	Anti-jamming
Accuracy [2]	Static accuracy	Planar accuracy±(2.5mm+0.5x10-6xD)mm
	Static accuracy	Elevation accuracy :+(5mm + 0.5x10-6xD)mm
	RTK accuracy	Plane accuracy :±(8mm + 1x106xD)mm
	RTK accuracy	Elevation accuracy :+(15mm + 1x10-6xD)mm
	Tilt compensation accuracy	8mm+ 0.3mm /*tilt(accuracy <2.5cm within 30°)
	Video measurement accuracy	Typical 2-4cm measuring distance 2-15 meters
GNSS+ Inertial navigation	IMU update rate	200Hz
	Tilt Angle	0-60 °
	Non-inductive super inertial	There is no need for initialization, the INS will not exit after the initialization is complete
	Non-inductive super inertial
User interaction	Indicators	1 satellite light +1 differential data light +1 static indicator light +1 power light
	Indicators
	Keys	Static Toggle key + Power/Confirm heald
	web pages	Support PC/ mobile side web pages
	Voice	Support for hand-book voice broadcasting
Featured Features [3]	Camera	Video measurement, efficiency increased by 60%*
		3D modeling, double the efficiency of internal and external work *

		AR reality navigation, don't get lost
		Visual lofting, put a rod in place
	Yousu	2MP&5MP
	Frame rate	25Hz
	Field of view (H,V)	75 degrees, 75 degrees
	Illuminance	Starlight camera, OmniPixel 3-GS technology
	Illuminance	Maintain full color picture at 0.01lux illumination
Physical characteristics	Size	Φ 133.5 mm * 80 mm
	weight	725g (including battery)
	texture of material	Magnesium alloy
	Operating temperature	1- 45 ° ℃ - + 75 ° ℃
	Storage temperature	1- 55 ° ℃ to + 85 ° ℃
Electrical performance [4]	battery	Mobile stations typically last more than 16h
	Fast Charge	Support fast charge, charge for 1 hour, typical battery life of more than 8 hours
	Fast Charge
	External power supply	DC 5-12V
	Storage	8GB with support for external expansion 128G (USB /TF card)
	Storage	8GB with support for external expansion 128G (USB /TF card)
Data Output	Differential data	RTCM2.X, RTCM3.X, CMR, CHC516
	Location data	NMEA-0183
	Static data	HCN, RINEX 2.11, RINEX3.02
Data communication	Wireless connection	Wi-Fi data link support
	Wi-Fi	Wi-Fi IEEE 802.11a/b/g/n/ac
	Bluetooth	5.0 & 4.2 +EDR, backward compatible
	Network module	Mobile phone support 4G full Netcom
	Radio	Built-in single receiver radio, support Huatou /TT450/ transparent transmission protocol, compatible with the market mainstream model radio protocol



Advanced Features	Online upgrade	Support remote push receiver upgrades
	One-click fixation	Bring your own CORS account so it can be fixed when you turn it on
	One-click fixation
	Smart Services	Support Huatai cloud services, provide cloud storage, function code sharing
	Smart Services
	Online upgrade	Support remote push receiver upgrades
Control hand book	Model number	iD3
	network	4G full Netcom
	network	4G full Netcom
	Operating system	Android 10
	CPU	Octa-core 2.0GHz
	RAM+ROM	3GB+32GB
	LCD screen	5.5 "HD display
	Physical keys	full function keys with support for measurement shortcuts
	Physical keys	full function keys with support for measurement shortcuts
	Camera	1300w
	Battery [4]	Typical battery life of 14 hours
	Water and dust resistant	IP68

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Customer Photos

Certifications

Company Profile

FAQ

Our Service

Packing & Delivery

Tags:

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

products details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

1408 channels CHCNAV E98 RTK Surveying Equipment High Accuracy Gps Receiver

chcnav rtk gnss

chcnav gnss rtk receiver

gps rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment

Products Details

GNSS RTK Receiver

GIS Data Collector

Robotic Total Station

Electronic Theodolites

Laser Plummet

Automatic Level

Laser Distance Meters

3D Laser Scanner

UAV Drone Survey

Surpad 4.2 Software

Echo Sounder

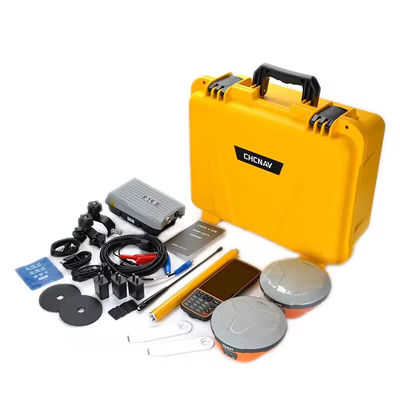

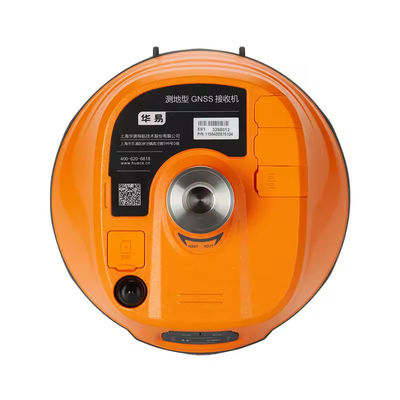

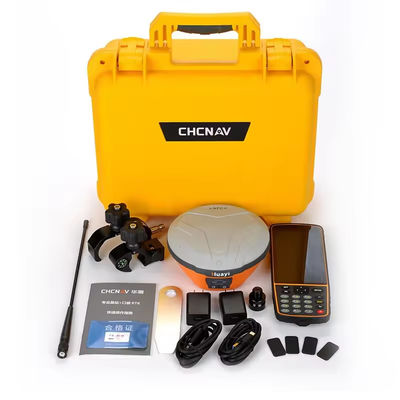

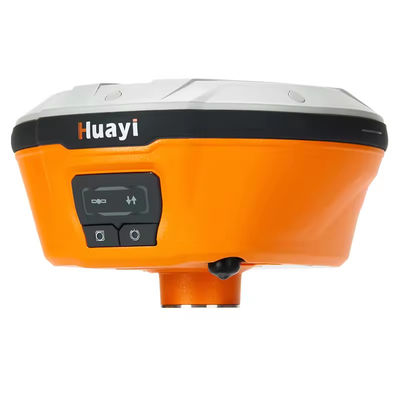

1408 channels CHCNAV E98 RTK Surveying Equipment High Accuracy Gps Receiver

chcnav rtk gnss

chcnav gnss rtk receiver

gps rtk gnss

base rover gps

gps rtk gnss

rtk survey equipment
