1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver

Brand Name:	CHCNAV
Model Number:	E96
MOQ:	1 piece
Price:	$1,600.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

GNSS RTK Receiver CHCNAVE96

Customized Support:

OEM, ODM, OBM

Application:

Land Surveying

Function:

GPS RTK Survey (Radio

GPS:

L1C/A, L1C, L2C, L2E, L5

Channels:

1408

BDS:

B1, B2, B3

GLONASS:

L1C/A, L1P, L2C/A, L2P, L3

Supply Ability:

1 ~ 30 day

Highlight:

chcnav rtk gnss

chcnav gnss rtk receiver

receiver rtk gnss

Product Description

1408 channels CHCNAV Rover Receiver E96 Visual RTK Surveying Equipment High Accuracy Gps Receiver

Overview

Products Descriptin

project	content	index
Satellites and Accuracy	satellite system	GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
	number of channels	1408
	Initialize reliability	99.90%
	No network continued test	Support high-precision solution, the base station can publish data such as power information
	Signal capture sensitivity	Typical value -162dbm, stronger ability to capture weak signal
	satellite-based differential	Support L-Band function:
	(optional)	Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
		Support domestic satellite-based enhanced services (centimeter level)
		Support ground-based augmentation system differential services (centimeter level)
		Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2]	IMU update rate	200Hz
	slope	0-60 degrees
	super inertial navigation	Support travel process to complete initialization, and support centering rod calibration
User interaction	indicator light	1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
	button	Static toggle key + power/confirm key
	web page	Support PC/mobile web pages
Camera	Function	Support visual stakeout
	pixel	2MP
	frame rate	25Hz
	Field of View (H, V)	75°, 75°
	Illumination	Starlight-level camera, still maintains full-color picture under 0.01lux illumination
physical properties	size	Φ133mm*87.6mm
	weight	0.8 Kg (including battery)
	material	magnesium alloy
	Operating temperature	-45℃~+75℃
	storage temperature	-55℃~+85℃
	waterproof breathable membrane	Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
	Waterproof and dustproof	IP68 (Protection against 1 meter immersion in water for 30 minutes)
	anti-collision	IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties	Battery	Built-in 6600mAh lithium battery
	Battery	The typical battery life of the mobile station is more than 16h
	fast charge	Support fast charge, up to 24w fast charge
	Built-in storage	8GB, can support external expansion 128G, automatic cycle storage, disk
	Built-in storage	After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
data output	Differential data	RTCM2.X, RTCM3.X, CMR, CHC516
	positioning data	NMEA-0183
	static data	HCN, RINEX 2.11, RINEX3.02
data communication	wireless connection	Support Wi-Fi data link
	network module	Handbook supports 4G full Netcom
	radio	Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features	One-click fix	Comes with a CORS account, which can be fixed at startup
Advanced Features	Smart service	Support CTI cloud service, provide cloud storage, function code sharing
control handbook	model	HCE600 Android Measurement Handbook
	operating system	Android 10
	CPU	Octa-core 2.0GHz processor
	network	4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
	Operating temperature	-30℃-+60℃
	Storage temperature	-40℃-+80℃
	Waterproof and dustproof	IP68

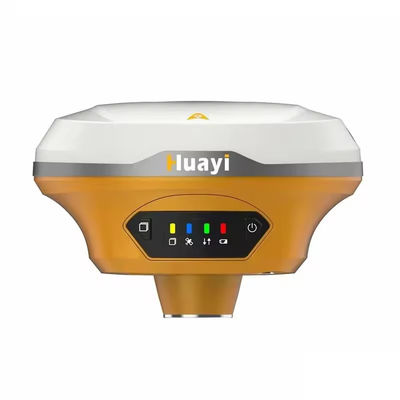

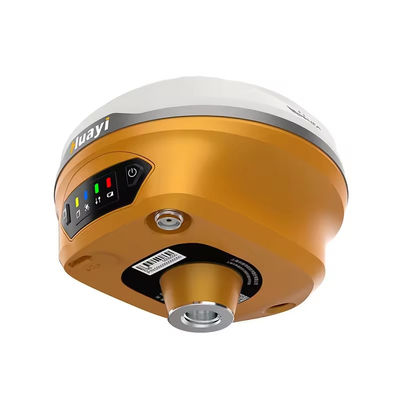

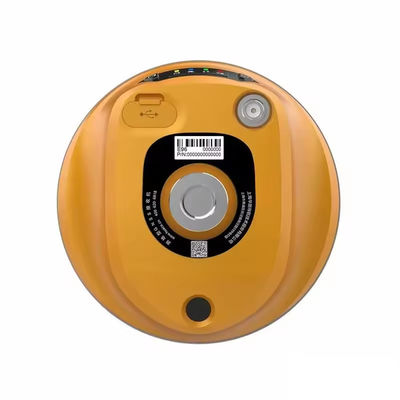

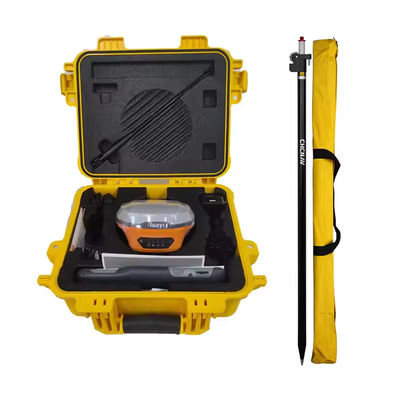

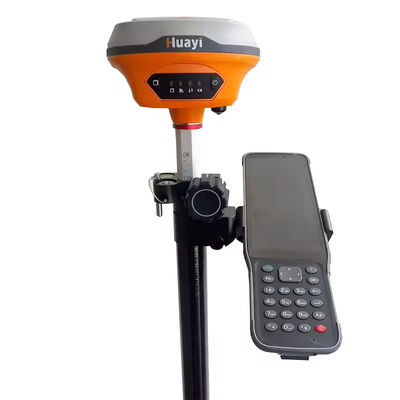

Product Display

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
