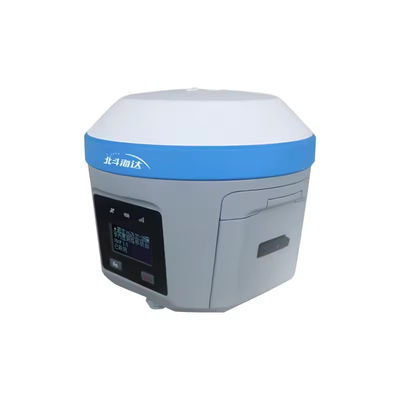

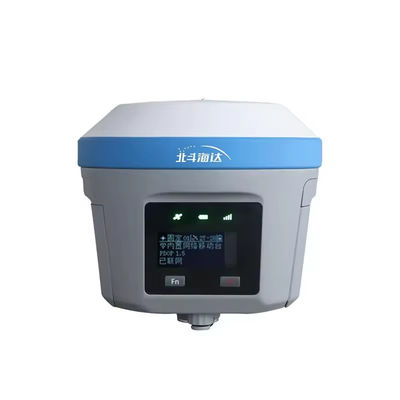

Measurement GNSS RTK Hi -Target TS7 Pro Base And Rover Upgrade For Land Surveying Instruments

Brand Name:	Hi-target
Model Number:	TS7 Pro
MOQ:	1 piece
Price:	$1,700.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Hi-target TS7 Pro

Material:

Magnesium Alloy

Application:

Land Surveying

Channels:

GALILIEO:

E1,E5a,E5b

L1 C/A,L2E,L2C,L5

B1I,B2I,B3I,B1C,B2a

GLONASS:

L1,L2

Supply Ability:

1 ~ 30 day

Highlight:

land surveying rtk gnss

land surveying gnss rtk receiver

receiver rtk gnss

Product Description

Measurement GNSS RTK Hi -target TS7 Pro Base and Rover upgrade for land surveying instruments

Products Description

Technical Parameters

RTK TS7 Pro technical parameters
GNSS configuration	Number of channels: 660
	BDS: B1I, B2I, B3I, B1C, B2a, B2b
	GPS: L1C/A, L1C, L2P(Y), L2C, L5
	GLONASS: L1, L2
	GALILIEO: E1, E5a, E5b, E6
	SBAS: Support
	QZSS: Support
	Output format	ASCII: NMEA-0183, binary code
	Positioning output frequency	1Hz~20Hz
	Static data format	GNS, Rinex dual format static data
	Difference format	CMR, RTCM2.X, RTCM3.0, RTCM3.2
	Network mode	VRS, FKP, MAC; support NTRIP protocol
System Configuration	operating system	Linux operating system
	Start Time	3 seconds
	data storage	Built-in 8GB ROM, supports automatic storage of static data
Accuracy and reliability [1]	RTK positioning accuracy	Plane: ±(8+1×10-6D) mm (D is the distance between the measured points)
		Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points)
	Static positioning accuracy	Plane: ±(2.5+0.5×10-6D) mm (D is the distance between the measured points)
		Elevation: ±(5+0.5×10-6D) mm (D is the distance between the measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm; elevation accuracy: ±0.50m+1ppm
	SBAS positioning accuracy	0.5m
	Initialization time	<10 seconds
	Initialization reliability	>99.99%
Communication unit	I/O port	USB Type-C interface, SMA interface
	Built-in 4G network communication	Built-in eSIM4 card, including 3 years Internet access fee, you can connect to the Internet after power on
	WiFi communication	802.11 a/b/g/n access point and client mode, can provide WiFi hotspot service
	blue tooth communication	blue tooth® 4.2/2.1+EDR, 2.4GHz

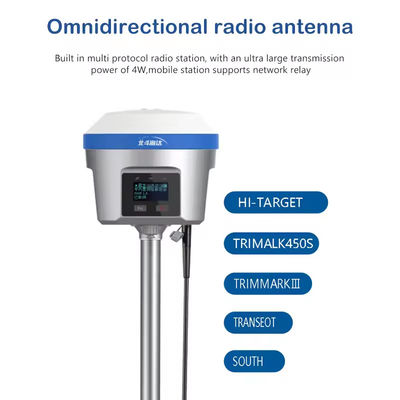

	Built-in radio	Built-in transceiver station:
		Power: 0.5W/1W/2W adjustable
		Frequency band: 410MHz~470MHz
		Protocol: HI-TARGET, TRIMTALK450S, TRIMMARKⅢ, TRANSEOT
		Number of channels: 116 (16 of which can be configured)
sensor	Electronic bubble	Realize smart alignment
	Tilt measurement	Built-in high-precision inertial navigation, automatic attitude compensation, 8mm+0.7mm/°tilt (accuracy within 30°<2.5cm)
User Interface	button	A power button
	LED indicator light	Satellite lights, signal lights, power lights
	WEB UI	Built-in WEB page to realize receiver setting and status check
Function application	Advanced Features	OTG function, NFC IGRS, WebUI interaction, U disk firmware upgrade
	Smart application	Smart base station, smart voice, function self-check, smart CORS
	Remote Service	News push, online upgrade, remote control
	cloud service	Equipment management, location services, collaborative operations, data analysis
Physical characteristics	Host battery	Built-in high-capacity lithium battery 6800mAh/7.4V, network mobile station working time is more than 10 hours[2]
	External power supply	Support USB port charging and external power supply
	size	Φ130mmx79mm
	weight	≤0.82kg
	Power consumption	4.2W
	material	The shell is made of magnesium alloy material
Environmental characteristics	Dustproof and waterproof	IP68
	Anti-fall	Resistance to natural drop of 2m high measuring rod
	Relative humidity	100% non-condensing
	Operating temperature	-40℃~+75℃
	storage temperature	-55℃~+85℃
