GPS GNSS RTK Hi -Target T5 Pro Rover Upgrade For Land Surveying Instruments

Brand Name:	Hi-target
Model Number:	T5 Pro
MOQ:	1 piece
Price:	$1,900.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Hi-target T5 Pro

Material:

Magnesium Alloy

Application:

Land Surveying

Channels:

Customized Support:

L1,L2,L5

B1I,B2I,B3I,B1C,B2a

Weight:

1.25kg

Supply Ability:

1 ~ 30 day

Highlight:

land surveying gps gnss rtk

land surveying rtk gps gnss

oem gps gnss rtk

Product Description

GPS GNSS RTK Hi -target T5 Pro Rover Upgrade for Land Surveying Instruments

Products Description

Technical Parameters

TS5 PRO technical specifications
GNSS configuration	Number of channels :660
	BDS:B1I,B2I,B3I,B1C,B2a
	GPS:L1,L2,L5
	GLONASS:L1,L2
	GALILIEO:E1,E5a,E5b
	QZSS:L1,L2,L5
	SBAS: Yes
	Output format ASCII	NMEA-0183, binary code
	Positioning output frequency	1Hz~20Hz
	Static data format	GNS, Rinex dual-format static data
	Difference scheme	CMR, RTCM2.X, RTCM3.0, RTCM3.2
	Network mode	VRS, FKP, MAC; Supports the NTRIP protocol
System configuration	Operating system	Linux operating system
	Startup time	3 seconds
	Data storage	Built-in 8GB ROM, support static data automatic cyclic storage
Accuracy and reliability	RTK positioning accuracy	Plane: ± (8+1×10-6D) mm (D is the distance between measured points)
	RTK positioning accuracy	Elevation: ± (15+1×10-6D) mm (D is the distance between measured points)
	Static positioning accuracy	Plane: ± (2.5+0.5×10-6D) mm (D is the distance between measured points)
	Static positioning accuracy	Elevation: ± (5+0.5×10-6D) mm (D is the distance between measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;
	DGPS positioning accuracy	Elevation accuracy: ±0.50m+1ppm
	Positioning accuracy of SBAS	0.5M
	Initialization time	< 10 seconds
	Initialization reliability	> 99.99%
Communication unit	I/O port	USB Type-C port, SMA port
	WiFi communication	802.11a /b/g/n access point and client mode to provide WiFi hotspot services
	Bluetooth communication	Bluetooth® 4.2/2.1+EDR,2.4GHz Built-in radio

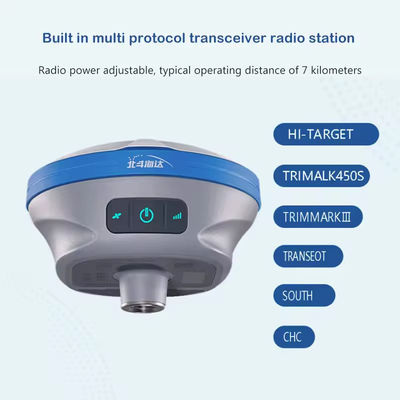

	Built-in radio	Power: 0.5W/1W/2W adjustable
		Frequency band: 410MHz to 470MHz
		Protocol: HI - TARGET, TRIMTALK450S TRIMMARK,Ⅲ TRANSEOT, SOUTH, CHC
		Number of channels: 116 (16 of which are configurable)
Sensor	Electron bubble	Realize intelligent alignment

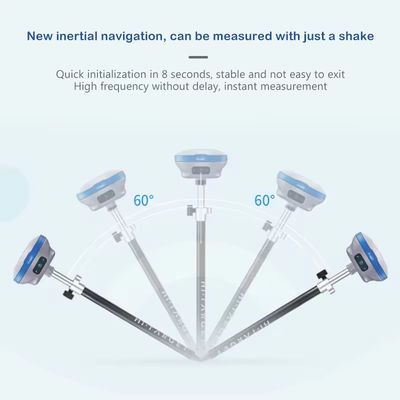

Sensor	Tilt measurement	Built-in high precision inertial navigation, automatic attitude compensation, 8mm+0.7mm/°tilt (accuracy < 2.5cm within 30°)
User interface	Button	One power button
	LED cue light	Satellite lights, signal lights, power lights
	WEB UI	Built-in WEB page, receiver Settings, status view
Functional application	Advanced function	OTG function, NFC flash link, WebUI interaction, USB flash drive firmware upgrade
	Intelligent application	Smart base station, smart voice, function self-check, smart CORS
	Remote service	Message push, online upgrade, remote control
	Cloud service	Equipment management, location services, collaborative work, data analysis
Physical characteristics	Main engine battery	Built-in high capacity lithium battery 6800mAh/7.4V, network mobile station working time is more than 10 hours
	External power supply	Support USB port charging and external power supply

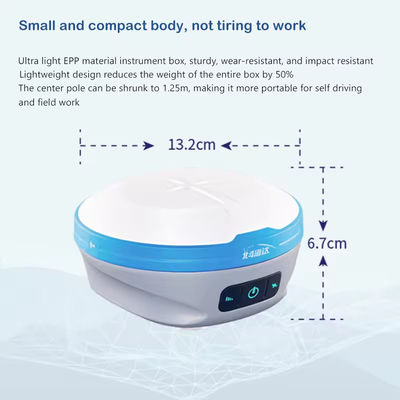

	Dimension	Φ 132 mmx67mm
	Weight	≤0.82kg
	Power consumption	4.2 W.
	Material	The shell is made of magnesium alloy
Environmental characteristics	Dustproof and waterproof	IP68
	anti-fall	Resist natural drop of 2 meter high measuring rod
	Relative humidity	100% non-condensing
	Operating temperature	- 30 ℃ ~ + 70 ℃
	Storage temperature	- 40 ℃ ~ + 80 ℃
