GPS GNSS RTK Hi -Target TS6 Base And Rover Upgrade For Land Surveying Instruments

Brand Name:	Hi-target
Model Number:	TS6
MOQ:	1 piece
Price:	$2,300.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Hi-target TS6

Material:

Magnesium Alloy

Application:

Land Surveying

Channels:

1408

Customized Support:

OEM

GPS:

L1,L2,L5

Supports:

No Network Interruption

Weight:

800g

Supply Ability:

1 ~ 30 day

Highlight:

land surveying gps gnss rtk

land surveying rtk gps gnss

oem gps gnss rtk

Product Description

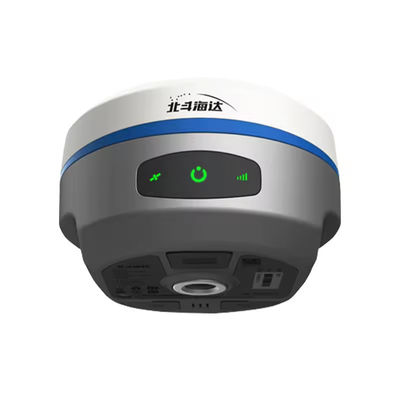

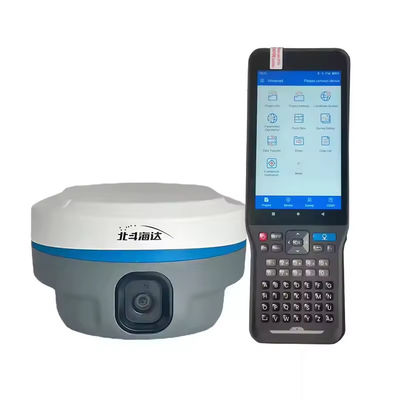

GPS GNSS RTK Hi -target TS6 Base and Rover Upgrade for Land Surveying Instruments

Products Description

TS6 technical specifications
GNSS configuration	Number of channels :660
	BDS:B1I,B2I,B3I,B1C,B2a
	GPS:L1,L2,L5
	GLONASS:L1,L2
	GALILIEO:E1,E5a,E5b
	QZSS:L1,L2,L5
	SBAS: :L1,L2,L5
	Output format ASCII	NMEA-0183, binary code
	Positioning output frequency	1Hz~20Hz
	Static data format	GNS, Rinex dual-format static data
	Difference scheme	RTCM2.X,RTCM3.X
	Network mode	VRS, FKP, MAC; Supports the NTRIP protocol
System configuration	Operating system	Linux operating system

	Data storage	Built-in 8GB ROM, support static data automatic cyclic storage
Accuracy and reliability	RTK positioning accuracy	Plane: ± (8+1×10-6D) mm (D is the distance between measured points)
	RTK positioning accuracy	Elevation: ± (15+1×10-6D) mm (D is the distance between measured points)
	Static positioning accuracy	Plane: ± (2.5+0.5×10-6D) mm (D is the distance between measured points)
	Static positioning accuracy	Elevation: ± (5+0.5×10-6D) mm (D is the distance between measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;
	DGPS positioning accuracy	Elevation accuracy: ±0.50m+1ppm
	Positioning accuracy of SBAS	0.5M
	Initialization time	< 10 seconds
	Initialization reliability	> 99.99%
Accuracy and reliability	Inclination measurement accuracy	8mm+0.7mm/°tilt
	Image lofting accuracy	Typical accuracy: 2cm
	Image measurement accuracy	2cm ~ 4cm

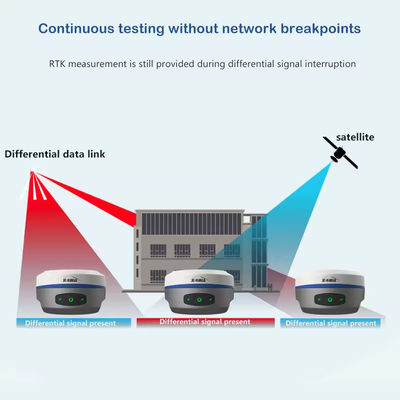

	Breakpoint continuation	RTK measurements are still provided during differential signal outages
camera	Pixel:	Professional double HD camera, 2MP & 5MP
camera	Function:	Support real scene lofting, image measurement, working distance 2~15m
Communication unit	I/O port	USB Type-C port, SMA port
	WiFi communication	802.11a /b/g/n access point and client mode to provide WiFi hotspot services
	Bluetooth communication	Bluetooth® 4.2/2.1+EDR,2.4GHz Built-in radio

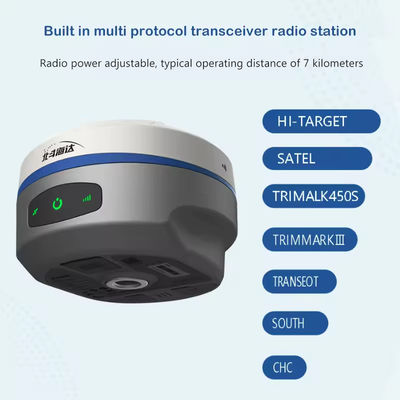

	Built-in radio	Power: 0.5W/1W/2W adjustable
		Frequency band: 410MHz to 470MHz
		Protocol: HI - TARGET, TRIMTALK450S TRIMMARK,Ⅲ TRANSEOT, SOUTH, CHC
		Number of channels: 116 (16 of which are configurable)

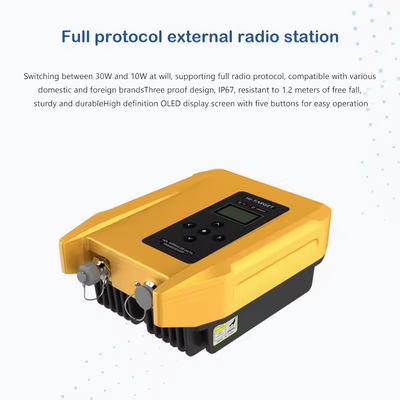

Communication unit	Radio HDL460A	Power: 10W/30W adjustable, frequency band: 403~473MHz
		Protocol: HI-TARGET, TRIMTALK450S, TRIMMARKⅢTRANSEOT, SOUTH, CHC, SATEL
		Number of channels: 116 channels (16 of which are configurable)
		Transmission rate: 19.2kbps, 9.6kbps adjustable
		Transmission rate: 19.2kbps, 9.6kbps adjustable
Sensor	Electron bubble	Realize intelligent alignment
Sensor	Tilt measurement	Built-in high precision inertial navigation, automatic attitude compensation, 8mm+0.7mm/°tilt (accuracy < 2.5cm within 30°)
User interface	Button	One power button
	LED cue light	Satellite lights, signal lights, power lights
	WEB UI	Built-in WEB page, receiver Settings, status view
Functional application	Advanced function	OTG function, NFC flash link, WebUI interaction, USB flash drive firmware upgrade
	Intelligent application	Smart base station, smart voice, function self-check, smart CORS
	Remote service	Message push, online upgrade, remote control
	Cloud service	Equipment management, location services, collaborative work, data analysis
Physical characteristics	Main engine battery	High capacity lithium battery 6800mAh, working time better than 13 hours
	External power supply	USB 15W charging
	Dimension	Φ130mm×79mm
	Weight	≤0.97kg
	Power consumption	2.6W
	Material	The shell is made of magnesium alloy
Environmental characteristics	Dustproof and waterproof	IP68
	anti-fall	Resist natural drop of 2 meter high measuring rod
	Relative humidity	100% non-condensing
	Operating temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃

Product features

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
