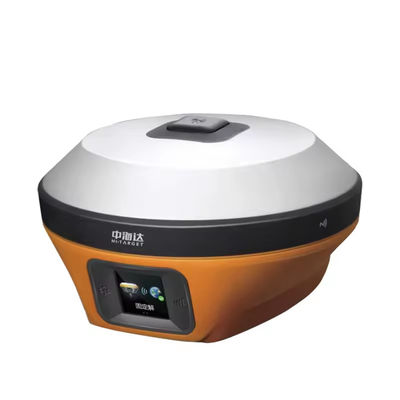

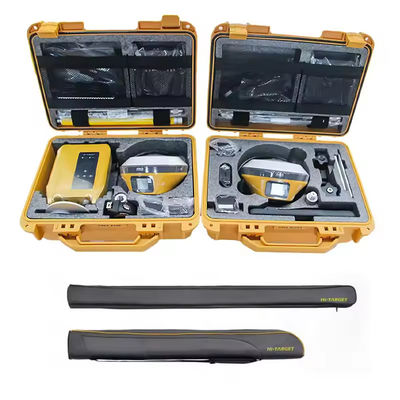

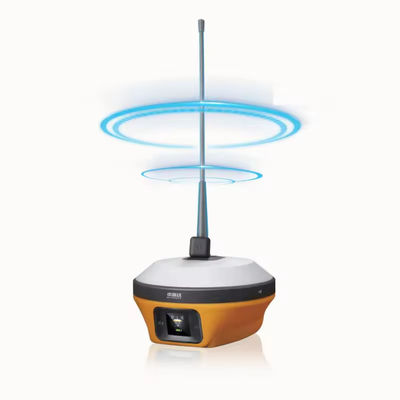

GNSS RTK Hi -target V98 Base and Rover upgrade for land surveying instruments

Brand Name:	Hi-target
Model Number:	V98
MOQ:	1 piece
Price:	$2,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Hi-target V98

Material:

Magnesium Alloy

Application:

Full-wave

Channels:

800

Customized Support:

OEM

GPS:

L1 CA/L1P/L1C/L2P/L2C/L5

Supports:

WIFI

Working Range:

5km Typical, 8~10km Optimal

Supply Ability:

1 ~ 30 day

Highlight:

land surveying rtk gnss

land surveying gnss rtk receiver

l2p rtk gnss

Product Description

GNSS RTK Hi -target V98 Base and Rover upgrade for land surveying instruments

Overview

Product Display

Product features

Technical Parameters

POSITIONING PERFORMANCE
High-Precision Static
Horizon:	2.5 mm + 0.1 ppm RMS
Vertical:	3.5 mm + 0.4 ppm RMS
Static and Fast Static
Horizon:	2.5 mm + 0.5 ppm RMS
Vertical:	5 mm + 0.5 ppm RMS
RTK Accuracy
Horizon:	8mm+1ppm RMS
Vertical:	15mm+1ppm RMS
Network RTK
Horizon:	8mm+0.5ppm RMS
Vertical:	15mm+O.5ppm RMS
Initialization time	Typically 2-10s
Initialization time
Initialization reliability	Typically > 99.9%
Initialization reliability	Typically > 99.9%
Internal Battery
Battery	7.4V 6800mAh lithium-ion rechargeable and removable battery.RTK rover(UHF/Cellular) for 10 hours.Power indicator embedded.
Working time	Quick charge within 3.5 hours.
Communication
Internal UHF Transceiver Radio
Frequency	403-473MHz
Transmitting power	1 ~4W Hi-Target Advanced Radio Supports protocols: HI-TARGET, TRIMTALK450S, TRIMMARK III, SATEL-3AS, TRANSEOT
Working Range	Typically 3~5km, optimal 5~8km
Physical
Dimensions	158mm x 98mm (6.22inch x 3.86inch)
Weight	lighter than 1.3kg (2.65lb) within internal battery
Operation temperature	-40°C~+75°C (-40°F~ + 167°F)
Storage temperature	-50°C~+85°C (-58°F~ + 185°F)
Temperature control	Auto-adjust the working power to maintain the temperature
Interface
	4.0/2.1 + EDR, 2.4 GHz. USB 20 port with OTG function. 1 SMA antenna connector. 1 DC power input(S-pin). 1 SIM card slot Near FieldCommunication(NFC)
I/O Interface
Control Panel
Physical button	1
Touchscreen	Support glove mode and wet-finger mode
Environment
Dustproof&Waterproof	IP67 dustproof, protected from temporary immersion to depth of 1 m (3.28ft)
Humidity	100% condensing

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
