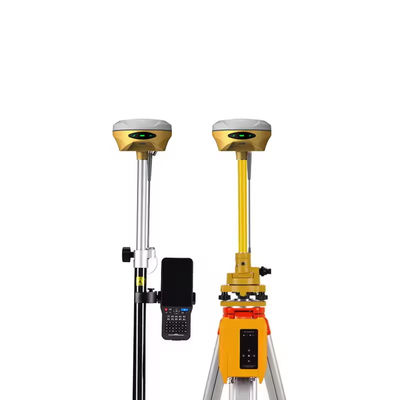

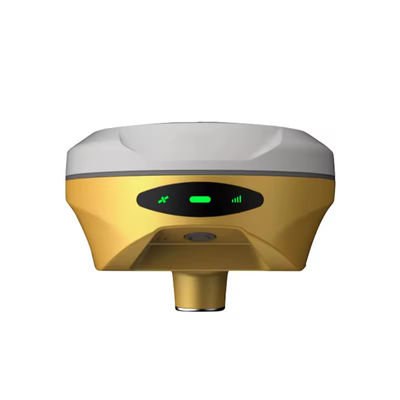

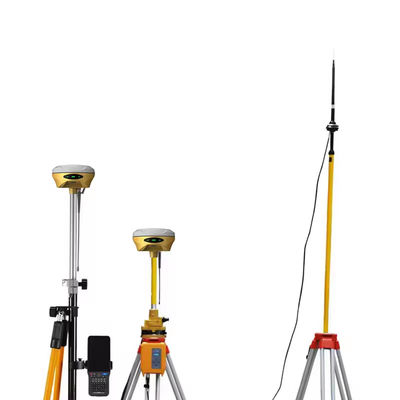

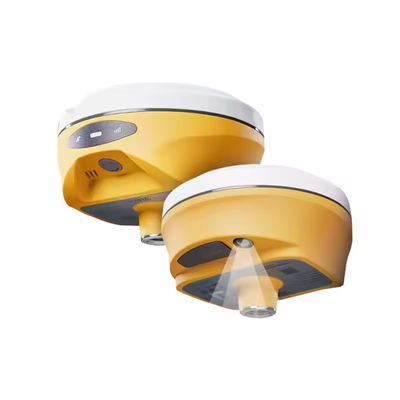

GNSS RTK Hi -target V300 Base and Rover upgrade for land surveying instruments

Brand Name:	Hi-target
Model Number:	V300
MOQ:	1 piece
Price:	$2,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver Hi-target V300

Material:

Magnesium Alloy

Battery:

Built-in 6800 MAh

Channels:

Customized Support:

L1, L2c/P, L5

Weight:

≤0.82kg

Dustproof And Waterproof:

Supply Ability:

1 ~ 30 day

Highlight:

land surveying rtk gnss

land surveying gnss rtk receiver

oem rtk gnss

Product Description

GNSS RTK Hi -target V300 Base and Rover upgrade for land surveying instruments

Overview

Product Display

Technical Parameters

GNSSconfiguration	System kernel	Using multi-star system core
	Number of channels	800
	BDS	B1,B2,B3
	GPS	L1,L2,L5
	GLONASS	L1,L2
	GALILEO	E1,E5a,E5b
	SBAS	yes
	Output format	ASCII: NMEA-0183, binary code
	Positioning output frequency	1Hz~20Hz
	Differential support	CMR,RTCM2.X,RTCM3.0,RTCM3.2
	Static format support	GNS, Rinex dual format static data
	RTK positioning accuracy	Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points)
	Static positioning accuracy	Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm
	SBAS positioning accuracy	0.5m
	Initialization time	<10 seconds
	Initialization reliability	＞99.99%
Built-in communication	network	Built-in 4G full Netcom network communication
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	Built-in Bluetooth
	Built-in transceiver
	Power	1W/2W/5W adjustable
	frequency band:	403MHz-473MHz
	Transmission rate	19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable
External radio	Power	功率:5W/10W/20W/30W adjustable
	frequency band:	403MHz~473MHz
	Transmission rate	19.2kbps/9.6kbps adjustable Number of channels: 116 frequency bands adjustable
User Interface	panel	Single button
	Indicator light	Satellite lights, signal lights, power lights
	Display screen	Industrial-grade OLED HD color display, capacitive touch screen
Advanced application	iPOWER smart balance technology, LBS, NFC
	Smart service	Voice broadcast, voice guidance, function self-check, DIY voice
	Remote Service	Remote upgrade, remote registration, remote data download
Electrical physical properties	battery	High capacity lithium battery 6800mAh/piece (Standard 2 pieces) with power display light, removable Single battery network mobile station continuously working formore than 10 hours
	Input voltage	DC 6~28VDC, with over-discharge protection
	size	Φ158mm×68mm
	weight	≤1.2kg (including battery)
	Power consumption	4.2W
	material	Shell is made of magnesium alloy material
Environmental characteristics	Dust and water release	P67, can resist temporary immersion under 2 meters water, completely prevent dust from entering
	Anti-fall	Resistance to natural drop of 3 meters
	Operating temperature	-40℃~75℃
Operating hand thin
System Configuration	model	iand3.0
	operating system	Android 6.0 operating system
	processor	1.5G, quad-core processor
	storage	2GB RAM+16GB ROM; support T-Flash memory card, support up to 128GB
	display	3.7 inch color capacitive touch screen
	enter	Physical full keyboard
Communication configuration	Cellular mobile	Built-in 4G full Netcom, dual card dual standby
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	Built-in Bluetooth
	NFC	Support NFC IGRS
	USB	USB Type C interface,Support OTG function
Power performance	Built-in battery	Removable lithium battery 3.7V/5200mAh, supports fast charging (charging time is less than 3 hours)
Power performance	Working time	A single battery can work continuously for 15 hours
Physical properties	size	208mm×83mm×24mm
	Weight	0.44g (battery)
	Operating temperature	20℃C-+55℃

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Customer Photos

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
