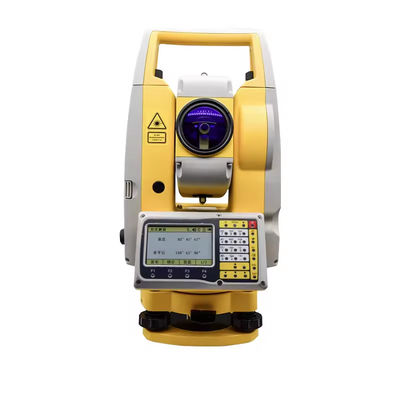

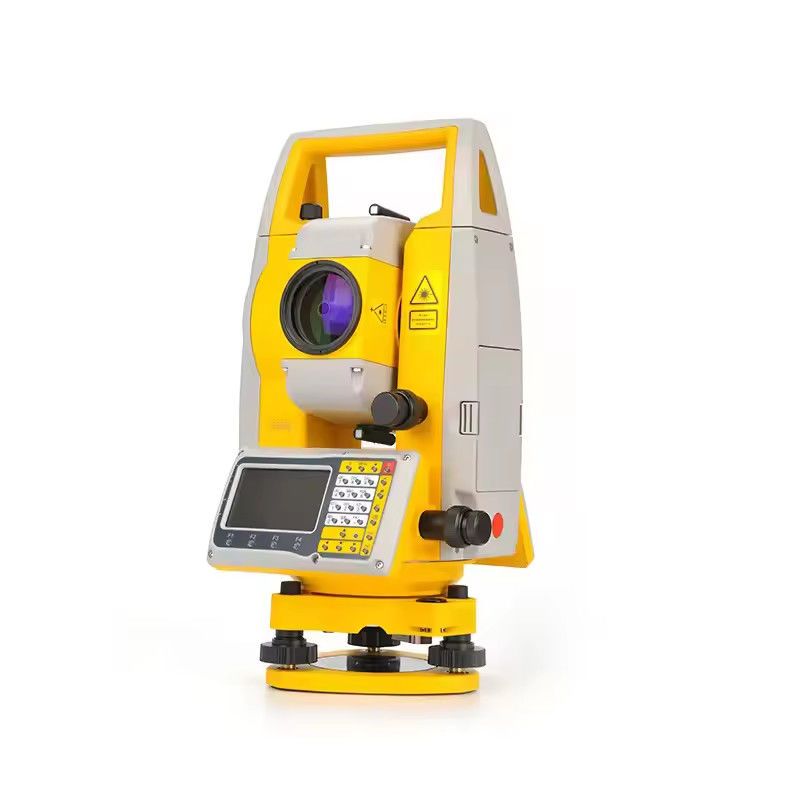

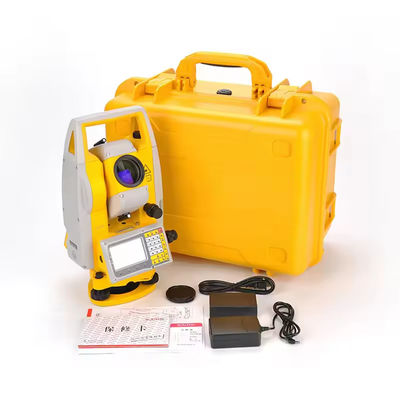

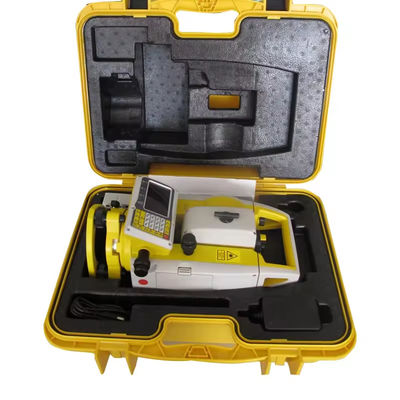

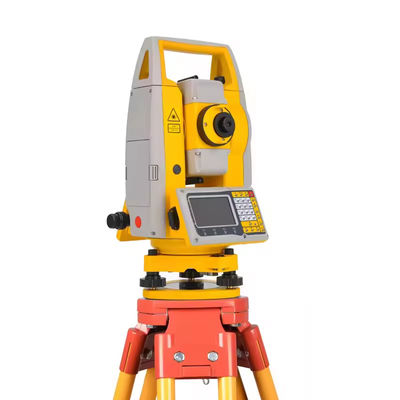

Surveying Equipment SOUTH Total Station NTS-332R10M Automatic Total Station

Brand Name:	SOUTH
Model Number:	NTS-332R10M
MOQ:	1 set
Price:	＄1800.00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station SOUTH NTS-332R10M

Customized Support:

OEM, ODM

Power:

Lithium Battery

Voltage:

Single Package Size::

50X45X40 Cm

Single Gross Weight::

12.000 Kg

Effective Aperture Of Objective Lens:

45mm (EDM 47mm)

Magnification:

Highlight:

surveying automatic total station

surveying prismless total station

equipment automatic total station

Product Description

Surveying Equipment SOUTH Total Station NTS-332R10M Automatic Total Station

Product Description

Specification

Distance Measurement	Reflectorless	1000m
	Single Prism	5000m
	Accuracy: Non Prism	3+2ppm
	Accuracy: Prism	2+2ppm
	Sheet	3+2ppm
	Measurement Time	1.2s in fine 0.2s in tracking
	Atmospheric Correction	Manual input, Auto correction
	Prism Constant	Manual input, Auto correction
	Temperature Correction	Manual input, Auto correction
	Distance Reading	Max: 99999999.999 Min: 1mm
Angle Measurement	Accuracy	2"
	Method	Absolute, continuous
	Disk Diameter	79mm
	Detection Method	V: Dual, H: Dual
	Angle Reading	Min: 1"
Telescope	Image	Erect
	Tube Length	152mm
	Effective Aperture	45mm (EDM 47mm)
	Magnification	30x
	Field Of View	1°30'
	Resolving Power	3"
	Minimum Focus Distance	1.5m
	Muitiple/Additive Constant	100/0
Keyboard And Display	Keyboard	Alphanumeric 28 Keys
	Display	2.7 inches Black & White LCD
	Resolution	160*96 dpi
	Position	Face 1, Face 2
Operation System	Memory	16000 points
Compensator	System	Liquid, Dual axis
	Working Range	±6'
	Accuracy	1"
Plummet	Laser Plummet (Default)
	Accuracy	±1.5mm @1.5m
	Laser Brightness	5 levels adjustable
	Wavelength	635nm
	Laser Class	Class 2
	Laser Power	0.5mW
	Optical Plummet (Optional)
	Image	Erect
	Magnification	3x
	Focusing Range	0.5m ~ ∞
	Field Of View	5"
Keyboard And Display	Keyboard	Alphanumeric 28 Keys
	Display	2.7 inches Black & White LCD
	Resolution	160*96 dp
	Position	Face 1, Face 2
Interface	Data Interface	USB Flash Disk
Battery	Type	Lithium
	Voltage	7.4V
	Operating time	8 hours
Vial	Plate Vial	30" /2mm
Vial	Circular Vial	8' /2mm
General	IP Rate	IP55
	Temperature Range	-20°C -- +50°C
	Dimension	206195353mm
	Weight	6kg

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
