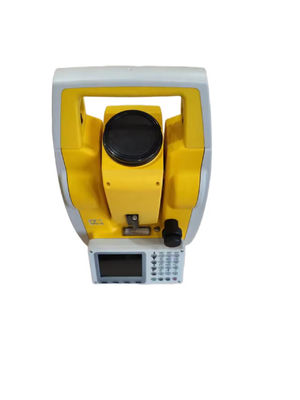

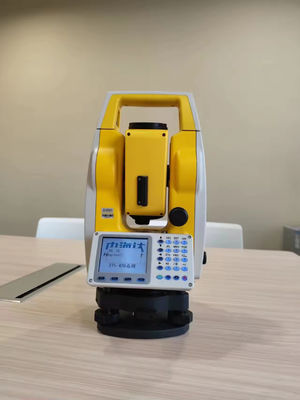

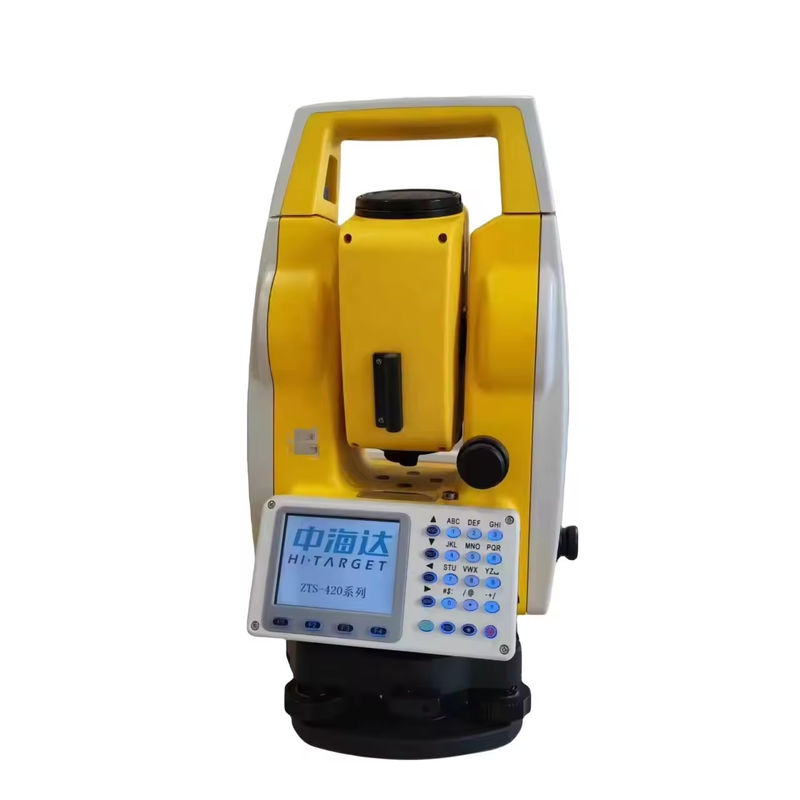

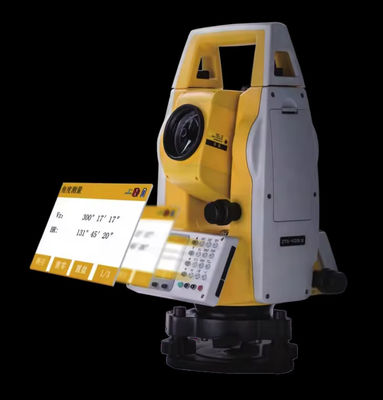

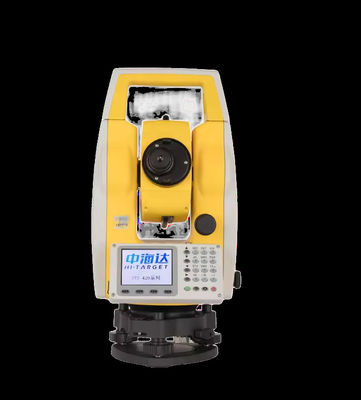

Land Robotic Survey Equipment Hitarget One Man Total Station High Position

Brand Name:	Hi-Target
Model Number:	HTS-420L8
MOQ:	1 set
Price:	＄1050 ,00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station HTS-420L8

Customized Support:

OEM, ODM

Application:

Land Surveying

Weight(including Batteries):

5.5kg

Magnification:

Waterproof:

Accuracy:

Operation Language:

ENGLISH

Highlight:

robotic survey equipment Totalstation

Hitarget robotic survey equipment

Hitarget one man total station

Product Description

Land Surveying Instrument Total Station Hi-Target HTS-420L8 With High Position 1000m And 2'' Accuracy

Product Description

New body design
Smaller and stronger housing with precision shaft system and compensator to ensure stable and reliable goniometry. Goniometric accuracy:士2``
IP66 waterproof and dustproof, suitable for all kinds of harsh environments.

Video Description

Hi-target ZTS-420L8 total station Surveying instrument with Advanced Performance and 2'' accuracy Hi-target survey total station

00:01

00:31

Specification

Model	ZTS-420L8
Angle Measurement
Angle measuring principle	Absolute Encoding
Minimum Readout	1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional
Accuracy¹	2"
Distance Measurement (Prism mode)
Range³	Single Prism: 3000m (9,842ft.) Three Prisms: 6000m (19,685ft.) Reflective Sheet: 800m (2,624 ft.)
Accuracy	3mm＋2ppm
Measuring Time	Repeat/Tracking: 1.5s/1s/0.3s
Distance measurement (Reflectorless)
Range	Range: 400m
Accuracy	3mm+2ppm
Measurement Time	1.5s
Telescope
Magnification	30x
Field of View	1°30' (2.7m at 100m)
Minimum Focusing Distance	1.2m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Accuracy *1	1"
Communication
Internal Data Memory	Approx. 20,000 Points
Interface	Standard RS232, SD card4, USB pen drive
Wireless Communication	Bluetooth
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight colourful display
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/ Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours(typical)
Measuring Times	Approx.12000 times
Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Environmental
Operating Temperature	-20℃ ~+50℃( -4℉ to +122℉)
Storage Temperature	-40℃ ~+70℃(-40℉ to + 158℉)
Dust&water proof (IEC60529 Standard)	IP55
