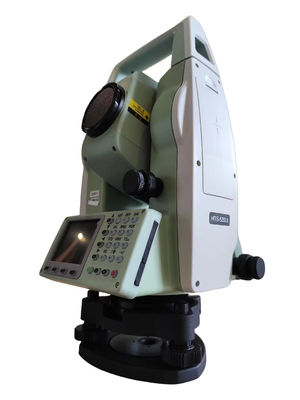

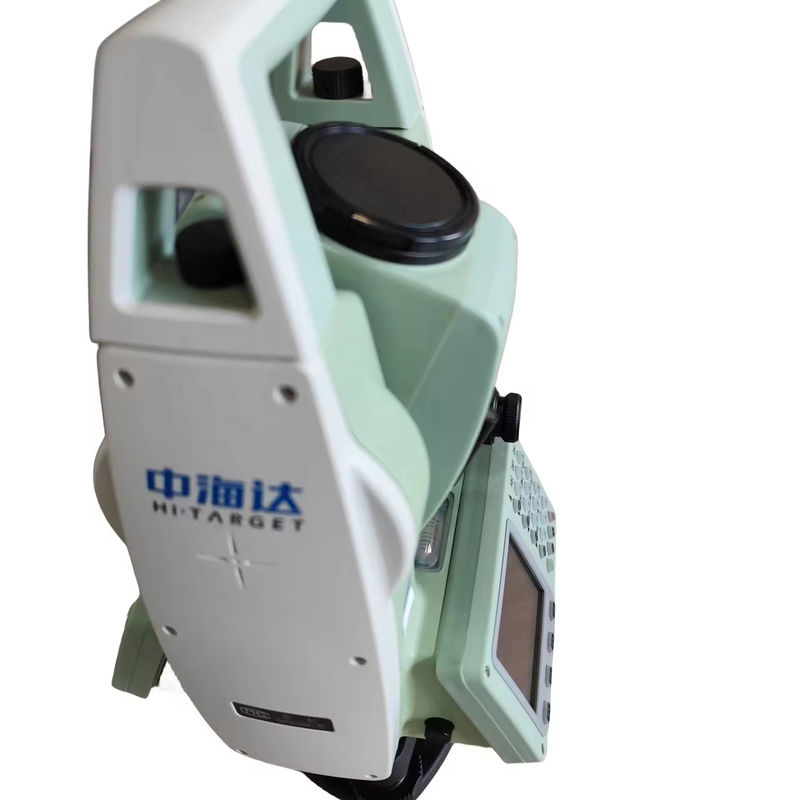

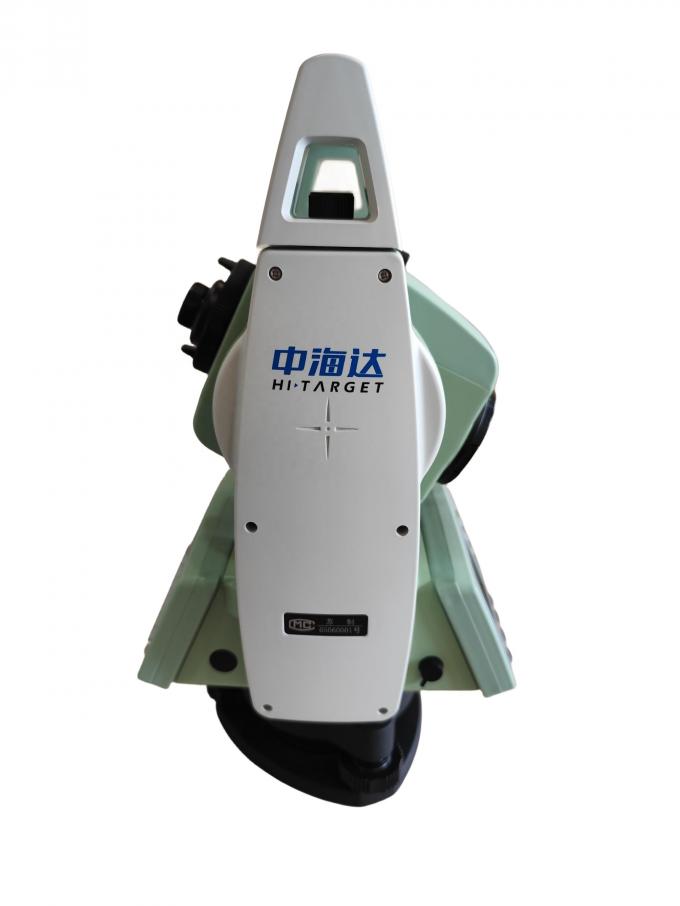

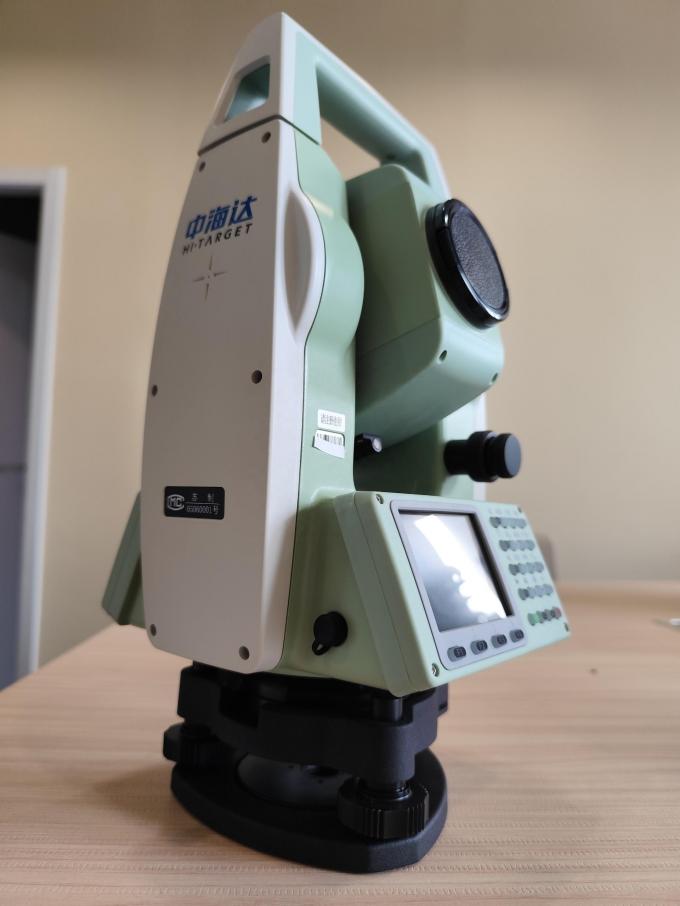

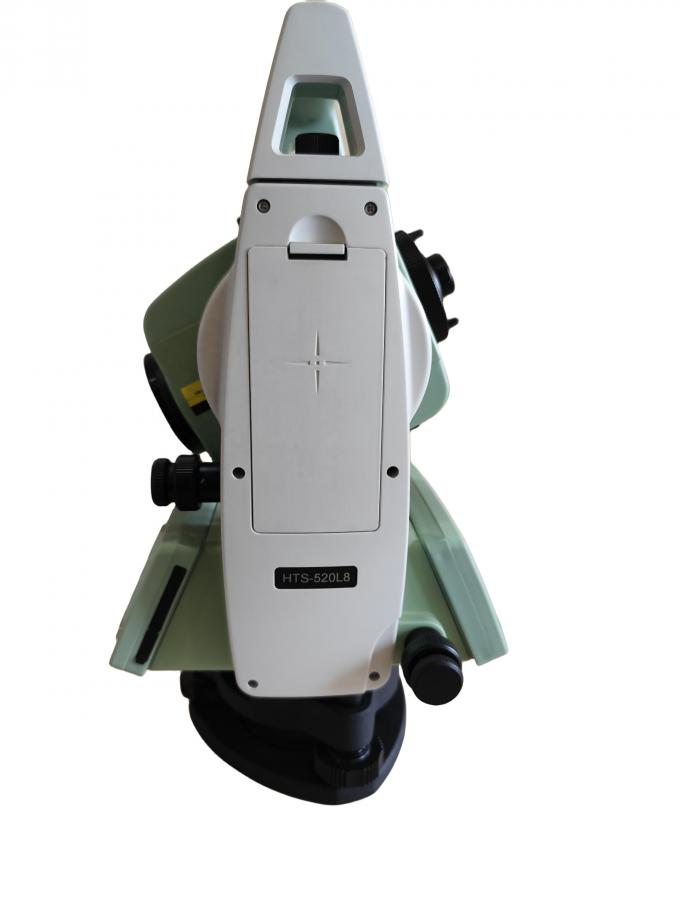

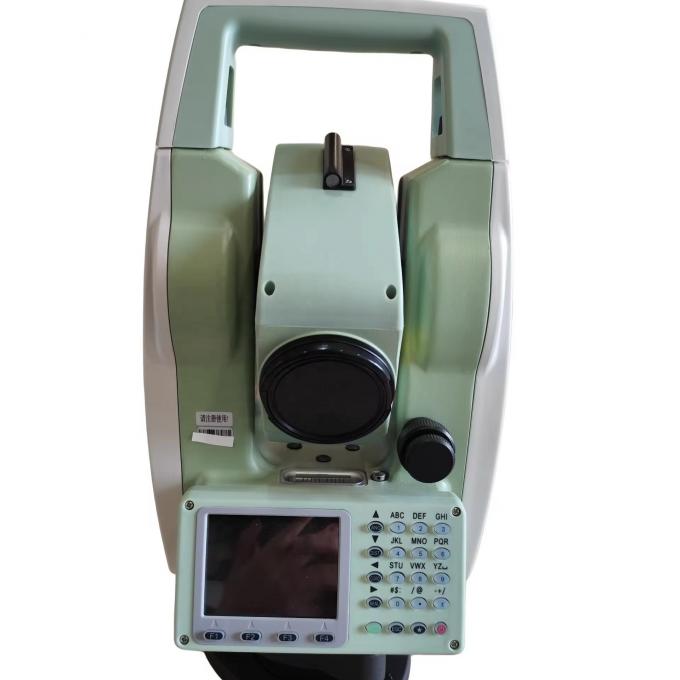

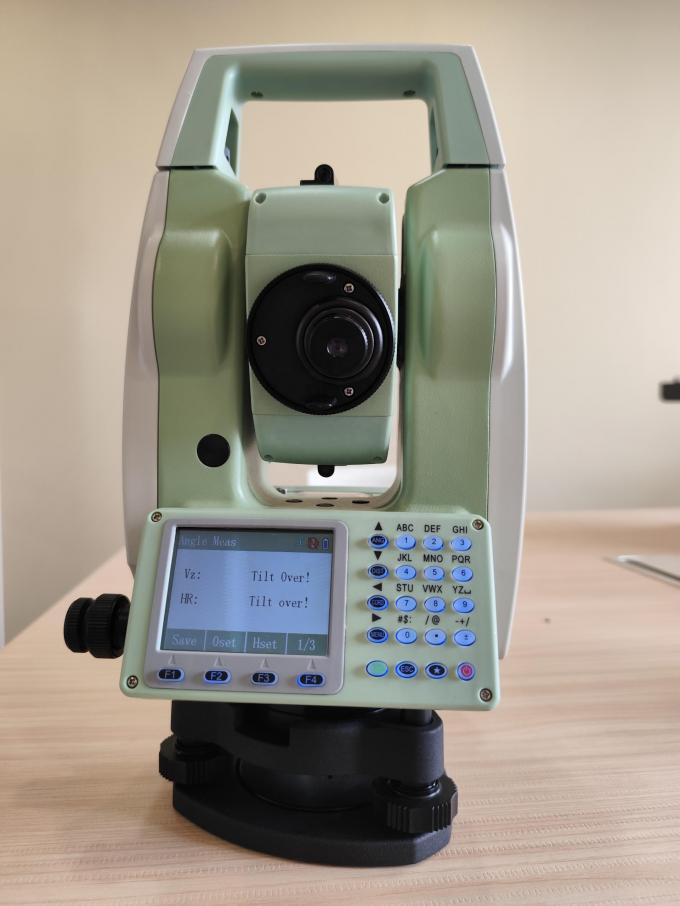

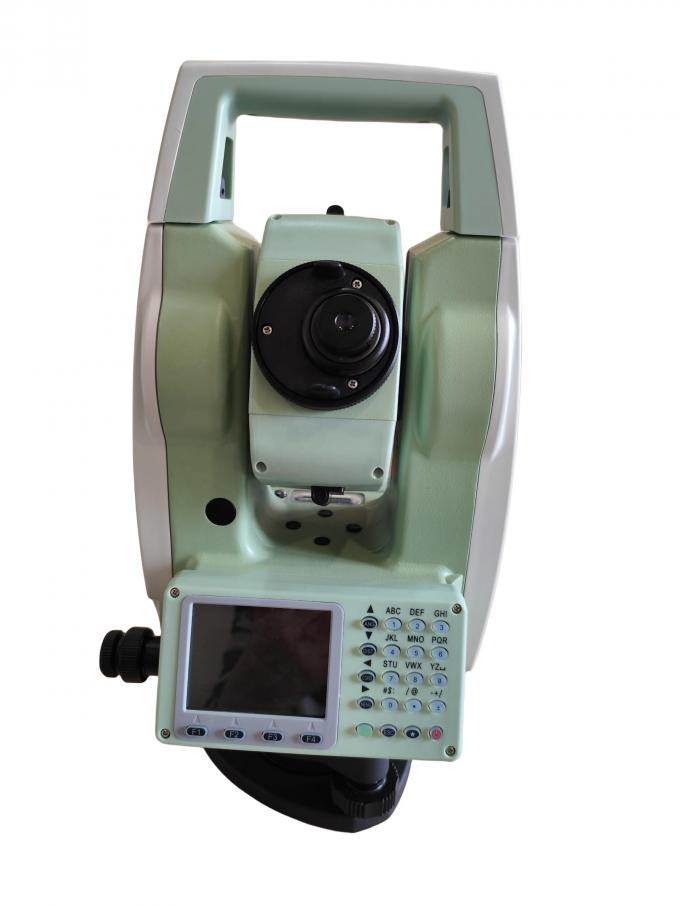

Land Surveying Instrument Total Station Hi-Target HTS-520L8 With No-Prism 800m

Brand Name:	Hi-Target
Model Number:	HTS-520L8
MOQ:	1 set
Price:	＄1050 ,00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station HTS-520L8

Customized Support:

OEM, ODM

Application:

Land Surveying

Weight(including Batteries):

Magnification:

Reflectorless:

Accuracy:

Function:

SD Card And USB

Highlight:

Robotic Total Station Machine

1000m Reflectorless Robotic Total Station

Surveying electronic total station machine

Product Description

Land Surveying Instrument Total Station Hi-Target HTS-520L8 With No-Prism 800m

Product Description

Angular accuracy: 2

Prism ranging accuracy: 2+2PPM

Prism range: 4000 metres Prism-free range: 800 metres

Dust and waterproof: IP55 display: 2.8 inch colour screen

00:

Specification

Model	HTS-520L8
Angle Measurement
Angle measuring principle	Absolute Encoding
Minimum Readout	1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional
Accuracy¹	2"
Distance Measurement (Prism mode)
Range³	Single Prism: 3000m (9,842ft.) Three Prisms: 6000m (19,685ft.) Reflective Sheet: 800m (2,624 ft.)
Accuracy	3mm＋2ppm
Measuring Time	Repeat/Tracking: 1.5s/1s/0.3s
Distance measurement (Reflectorless)
Range	Range: 400m
Single Prism	>7500m (24606ft.)
Accuracy	3mm+2ppm
Measurement Time	1.5s
Telescope
Magnification	30x
Field of View	1°30' (2.7m at 100m)
Minimum Focusing Distance	1.2m
Reticle	Illuminated
Compensator
System	Dual-axis (optional)
Working Range	±3′
Accuracy *1	1"
Communication
Internal Data Memory	Approx. 20,000 Points
Interface	Standard RS232, SD card4, USB pen drive
Wireless Communication	Bluetoth
Data Format	ASCII
Operation
Operation system	Real-time Operating System
Display	High resolution backlight colourful display
Keyboard	2 sides Alphanumeric backlit crystal keyboard
Laser Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Power Supply
Battery Type	Rechargeable Li-ion battery
Voltage/ Capacity	ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400	Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours(typical)
Measuring Times	Approx.12000 times
Plummet
Type	Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy	1 mm at 1.5m instrument height
Environmental
Operating Temperature	-20℃ ~+50℃( -4℉ to +122℉)
Storage Temperature	-40℃ ~+70℃(-40℉ to + 158℉)
Dust&water proof (IEC60529 Standard)	IP55

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

Packing & Delivery
