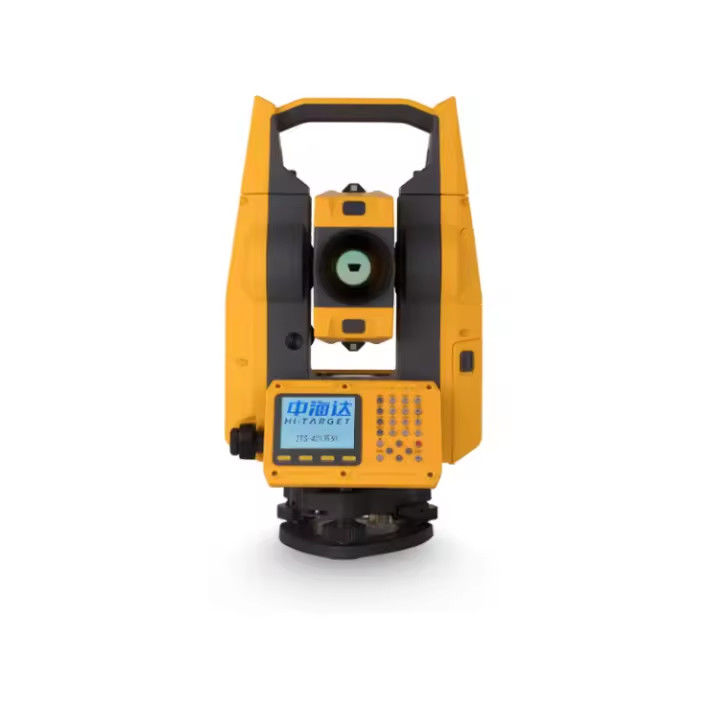

Land Surveying Robotic Theodolite Robotic Surveying Equipment Hi Target

Brand Name: Hi-Target
Model Number: ZTS-421L10
MOQ: 1 set
Price: ＄1200 ,00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Robotic Total Station ZTS-421L10
Customized Support:
OEM, ODM
Application:
Land Surveying
Weight(including Batteries):
5.5kg
Magnification:
30X
Reflectorless:
1000m
Accuracy:
2"
Single Prism:
6000m
Highlight:

Land Surveying robotic theodolite

,

Hi Target robotic theodolite

,

Theodolite robotic surveying equipment

Product Description
Land Surveying Instrument Total Station Hi-Target HTS-420L8 With 1000m Reflectorless Range




Product Description



Hi-Target 1000m Reflectorless Range Surveying Instrument ZTS-421L10 / HTS-521L10 Total Station
HTS-521L10 adopts a high-definition color screen to provide better human-computer interaction. The new optical design and absolute coding technology improve the measurement performance. High-precision compact bead shafting and sealed encoder disk enhance accuracy and stability. Built-in abundant measurement programs and comprehensive maintenance procedures will provide a new measurement experience.
Longer Range and More Stable Precision
HTS-521L10 has a new optical structure design. It adopts a new ranging algorithm and cooperates with high-quality electronic and optical components. The reflectorless range is up to 1000m with 3+2ppm accuracy. The prism mode range is farther than 6000m with 2+2ppm accuracy.

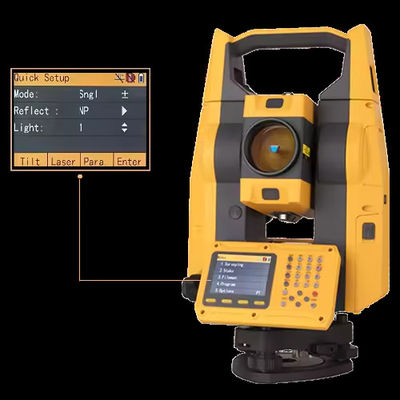

Colorful Display
2.8-inch and 240*320 pixels high-brightness color display is still clearly visible under the strong sunlight. The rubber keys have a backlight display, which makes operation clear in dark environment.

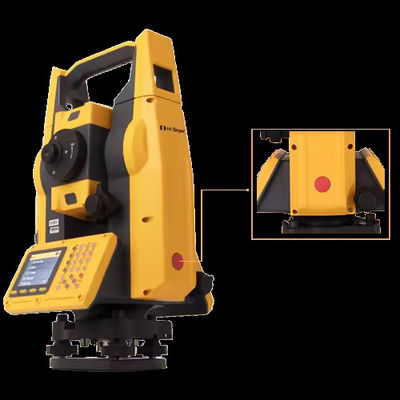

Trigger Key
The data can be acquired by trigger key with one click, which improves the speed and accuracy of the measurement greatly.
High Precision and Stability
High-precision bead shafting. Sealed encoder disk.
Land Surveying Robotic Theodolite Robotic Surveying Equipment Hi Target 0
Land Surveying Robotic Theodolite Robotic Surveying Equipment Hi Target 1
Land Surveying Robotic Theodolite Robotic Surveying Equipment Hi Target 2
Land Surveying Robotic Theodolite Robotic Surveying Equipment Hi Target 3
Land Surveying Robotic Theodolite Robotic Surveying Equipment Hi Target 4



Specification

Angle Measurement

Angle Measuring Principle
Absolute Encoding
Minimum Readout
1"
Accuracy
2"
Distance Measurement (Prism Mode)

Single prism1 (General/Good Atmosphere)
5000m/6000m
Accuracy (Fine/Quick/Tracking)
2mm + 2ppm
Measuring Time (Repeat/Tracking)
0.5s/0.3s
Distance Measurement (Reflectorless)

Range (The target is Kodak white board with reflect rate of 90%)
1000m
Accuracy (It may change according to the different reflector conditions)
3mm + 2ppm
Measuring Time
Approx. 1s
Telescope

Magnification
30x
Field of View
1°30'
Minimum Focusing Distance
1.5m
Reticle
Illuminated
Tilt Sensor

System
Dual-axis liquid tilt sensor
Working Range
±3'
Accuracy
1"
Communication

Internal Data Memory
Approx. 80,000 Points
Interface
Standard RS232, USB
Wireless communication
Bluetooth
Data Format
ASCII
Power Supply

Battery Type
Rechargeable high-energy lithium battery (Type-C for direct charging)
Voltage/Capacity
7.4V DC / 3000 mAH
Operating Time
Optimal 36 hours (Continuous angle measurementAutomatic sensorIP66every 30 seconds) / 18 hours (typical)
Measuring Times
Approx. 30000 times
Other

Display
2.8 inch 240*320 pixel highlight color display
Keyboard
2 sides alphanumeric backlit silicone keyboard.Trigger key.
Plummet

Type
Laser point, 4 brightness levels adjustment /Optical plummet (optional)
Environment

Operating Temperature
-20°C~50°C
Storage Temperature
-40°C~70°C
Temperature and Air Pressure Input
Automatic sensor
Dust&Water Proof (IEC60529 Standard)
IP66
