Land Laser Plummet Surveying Instrument Tools SOUTH ML401S

Brand Name: SOUTH
Model Number: ML401S
MOQ: 1 set
Price: $250
Payment Terms: L/C, T/T
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Laser Plummet KOLIDA ML401S
Weight:
3.2kg
Long Level Accuracy:
20/2mm
Instrument Operating Temperature Range:
-25℃ - +45℃
Spot Diameter At 40m:
≤4mm
Laser Effective Range:
≥150m During The Day
Laser Effective Range2:
≥500m At Night
The Wavelength:
630nm
Supply Ability:
1 ~ 30 day
Highlight:

laser plummet surveying Tools

,

SOUTH ML401S laser plummet surveying

,

Plummet land surveying tools

Product Description

High Accuracy Instrument SOUTH ML401S Laser Plummet Surveying Instrument



Products Description

Laser alignment
Spot Adjustable
Integrated body
Stable performance
Coaxial coaxial vision laser
Adjustable spot size
Dustproof and drop-proof

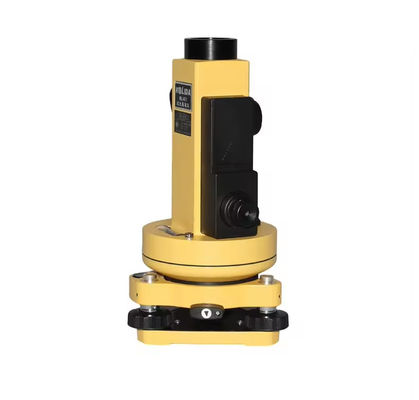

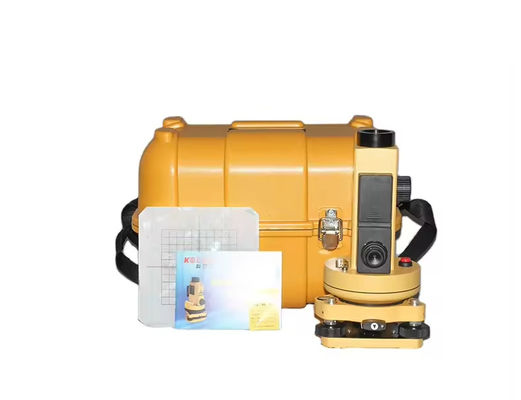

Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 0
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 1

Product Parameter

  1. The standard deviation of a measurement of the sag is 1/40,000.
  2. The accuracy of the long level is 20" / 2mm.
  3. Telescope magnification: 25x.
  4. Laser point error (within 0.5-1.5m): <2mm.
  5. Semiconductor laser power: 10mW.
  6. Power supply: 3V.
  7. Laser effective range: daytime >100m, night >200m.
  8. Spot size: 40m spot diameter <4m, 100m spot diameter <5".
  9. Collimation axis and vertical axis coaxial error <5".

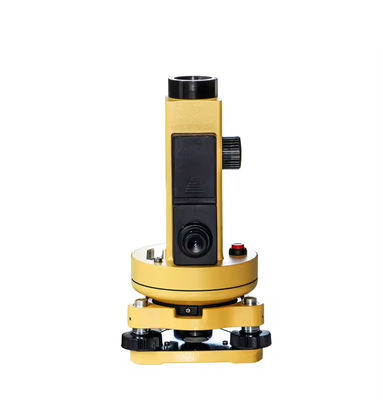

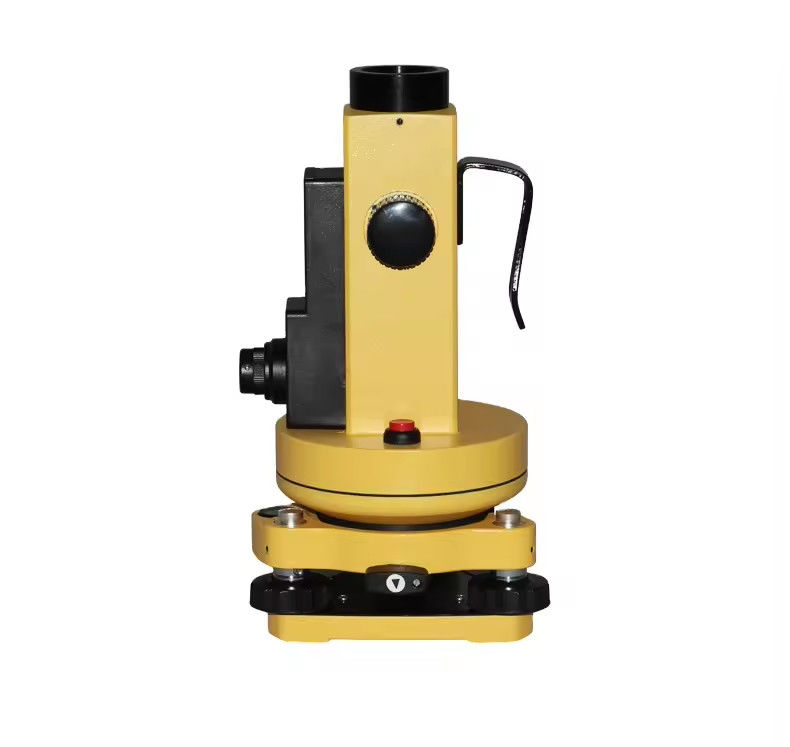

Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 2
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 3
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 4
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 5
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 6
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 7
Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 8



item
value
Warranty
1years
Customized support
OEM
Place of Origin
China

Guangdong
Brand Name
KOLIDA
Model Number
ML401S
Long level accuracy
20/2mm
Instrument operating temperature range
-25℃ - +45℃
Spot diameter at 40m
≤4mm
Laser effective range
≥150m during the day
Laser effective range2
≥500m at night
The wavelength
630nm
Laser
Class II
Power supply
3V
Magnification
25X
The weight of the instrument
130x110x265mm

Packing & Delivery



Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 9



Certifications



Land Laser Plummet Surveying Instrument Tools SOUTH ML401S 10



FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
