Robotic Total Station

OEM Prismless Total Station Surveying Equipment 1500m Reflectorless

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

OEM Prismless Total Station Surveying Equipment 1500m Reflectorless

Brand Name:	SOUTH
Model Number:	NTS-362R15
MOQ:	1 set
Price:	＄1600.00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station SOUTH NTS-362R15

Customized Support:

OEM, ODM

Power:

Lithium Battery

Reflectorless:

1500m

Display:

LCD Display

Accuracy: Non Prism:

3+2ppm

Accuracy:

Operating Time:

8 Hour

Highlight:

OEM prismless total station

1500m Reflectorless prismless total station

1500m Reflectorless survey totalstation

Product Description

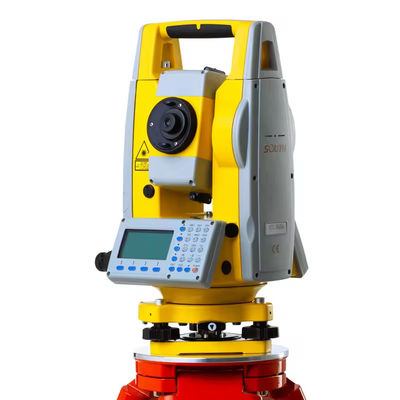

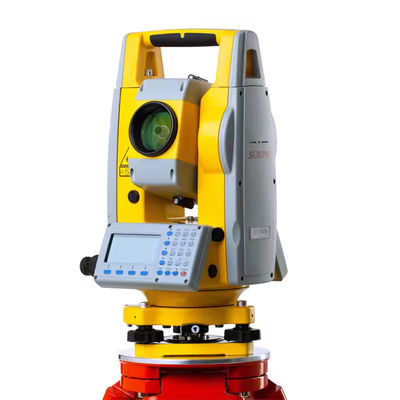

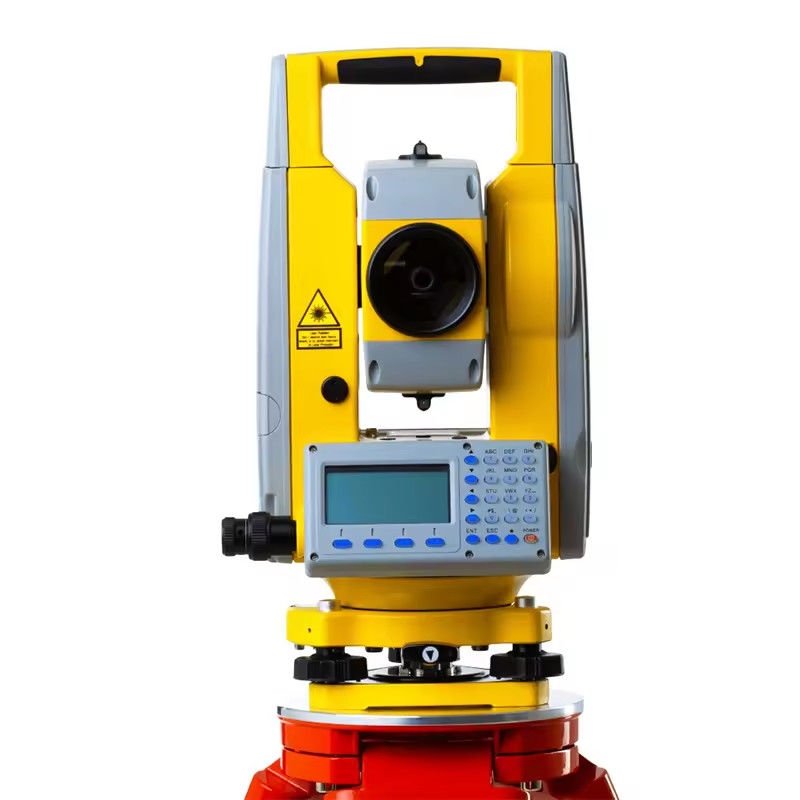

Surveying Equipment SOUTH Total Station NTS-362R15 Automatic Total Station

Product Description

Specification

model	NTS-362R10	NTS-362R12	NTS-362R15
Distance measurement (with cooperative targets)
Single prism	5000m	5000m	5000m
Reflector(60mm×60)	1000m	1200m	1500m
accuracy	±(2+2×10¯6·D)mm
Measurement time	Accurate measurement for 0.3 seconds and tracking for 0.1 seconds
Prism free distance measurement (no cooperative target)
Range (Kodak White, 90% Reflectivity)	1000m	1200m	1500m
accuracy	±(3+2×10¯6·D)mm
Measurement time	0.3~3 seconds
Angle measurement
Angle measurement method	Absolute coding angle measurement technology
Disc diameter	79mm
Minimum reading	0.1 "/1"/5 "/10" optional
accuracy	2"
Detection method	Horizontal disc: opposite diameter Vertical disc: opposite diameter
telescope
imaging	Ortho image
Mirror tube length	154mm
Effective aperture of objective lens	45mm
Magnification rate	30X
Field of view angle	1°30'
resolving power	3"
Minimum focusing distance	1.2m
System comprehensive parameters
compensator	Dual axis liquid optoelectronic compensator (compensation range: ± 4/± 6 optional, resolution: 1 ")
Meteorological correction	Automatic correction of temperature and pressure sensors
Prism constant correction	Automatically correct input parameters
Level
Pipe level	30"/2mm
Circular level	8'/2mm
Laser centering device (optical centering device optional)
Brightness adjustment	Level 3 regulation
Accuracy	± 1.5mm (at 1.5m)
Display section
Screen type	320 × 240 dot matrix high-definition and high brightness display screen
Screen size	2.7 inches
digital display	Maximum: 99999999.9999 Minimum: 0.1mm
data transmission
Data interaction interface	RS-232, USB, SD card, Bluetooth
Airborne battery
source	Rechargeable lithium battery, 3100mAH
voltage	DC 7.4V
Continuous working hours	8 hours
Size and weight
size	200mm×190mm×350mm
weight	6.0Kg

Why Choose Us

GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike

Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service
