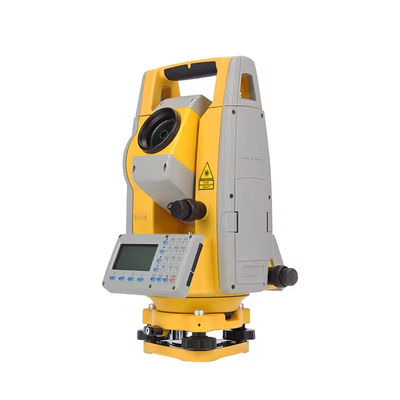

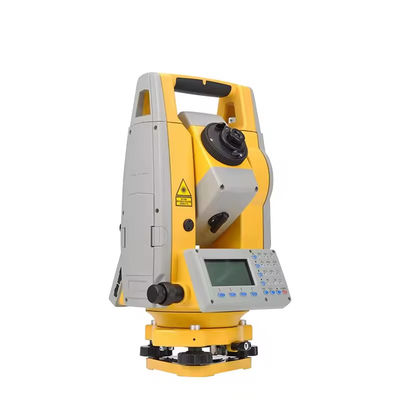

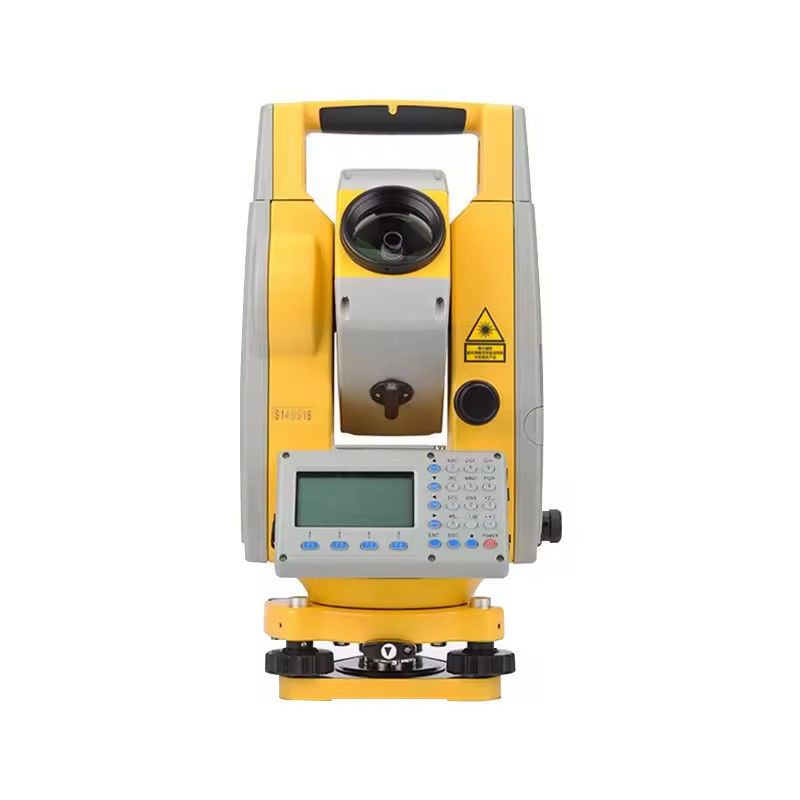

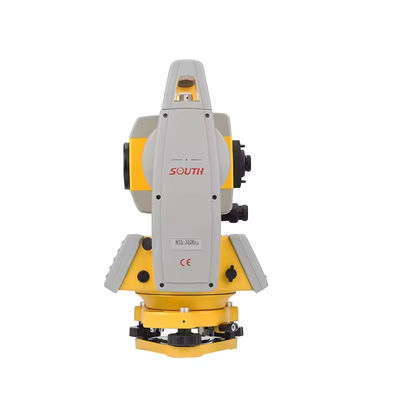

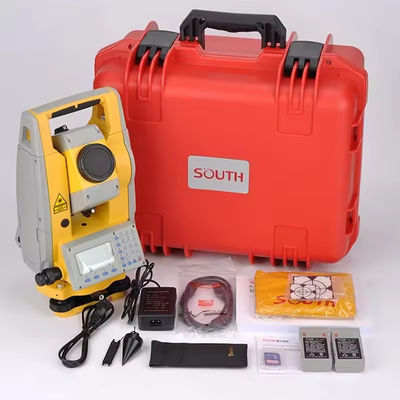

Ortho Image South Robotic Total Station Surveying Equipment Instrument
  • name
  • name
  • name
  • name
  • name

Ortho Image South Robotic Total Station Surveying Equipment Instrument

Brand Name: SOUTH
Model Number: NTS-362R12
MOQ: 1 set
Price: ＄1400.00
Payment Terms: T/T, L/C
Detail Information
Product Description
Detail Information
Place of Origin:
China
Product Name:
Robotic Total Station SOUTH NTS-362R12
Customized Support:
OEM, ODM
Power:
Lithium Battery
Reflectorless:
1200m
Display:
LCD Display
Accuracy: Non Prism:
3+2ppm
Accuracy:
2"
Operating Time:
8 Hour
Highlight:

Ortho image south robotic total station

,

south robotic total station Instrument

,

Ortho image total station survey instrument

Product Description
Surveying Equipment SOUTH Total Station  NTS-362R12 Automatic Total Station




Product Description
  New ranging system, longer range, faster speed, the same vertical axis laser under the point of technology, more accurate alignment, full numerical + alphabetic keyboard, input faster, the latest circuit design, battery power consumption is lower, user-friendly design, easy to drive, excellent quality, intimate build
Ortho Image South Robotic Total Station Surveying Equipment Instrument 0
Ortho Image South Robotic Total Station Surveying Equipment Instrument 1
Ortho Image South Robotic Total Station Surveying Equipment Instrument 2
Ortho Image South Robotic Total Station Surveying Equipment Instrument 3
Ortho Image South Robotic Total Station Surveying Equipment Instrument 4

Ortho Image South Robotic Total Station Surveying Equipment Instrument 5
Specification



model
NTS-362R10
NTS-362R12
NTS-362R15
Distance measurement (with cooperative targets)
Single prism
5000m
5000m
5000m
Reflector(60mm×60)
1000m
1200m
1500m
accuracy
±(2+2×10¯6·D)mm
Measurement time
Accurate measurement for 0.3 seconds and tracking for 0.1 seconds
Prism free distance measurement (no cooperative target)
Range (Kodak White, 90% Reflectivity)
1000m
1200m
1500m
accuracy
±(3+2×10¯6·D)mm
Measurement time
0.3~3 seconds
Angle measurement
Angle measurement method
Absolute coding angle measurement technology
Disc diameter
79mm
Minimum reading
0.1 "/1"/5 "/10" optional
accuracy
2"
Detection method
Horizontal disc: opposite diameter Vertical disc: opposite diameter
telescope
imaging
Ortho image
Mirror tube length
154mm
Effective aperture of objective lens
45mm
Magnification rate
30X
Field of view angle
1°30'
resolving power
3"
Minimum focusing distance
1.2m
System comprehensive parameters
compensator
Dual axis liquid optoelectronic compensator (compensation range: ± 4/± 6 optional, resolution: 1 ")
Meteorological correction
Automatic correction of temperature and pressure sensors
Prism constant correction
Automatically correct input parameters
Level
Pipe level
30"/2mm
Circular level
8'/2mm
Laser centering device (optical centering device optional)
Brightness adjustment
Level 3 regulation
Accuracy
± 1.5mm (at 1.5m)
Display section
Screen type
320 × 240 dot matrix high-definition and high brightness display screen
Screen size
2.7 inches
digital display
Maximum: 99999999.9999 Minimum: 0.1mm
data transmission
Data interaction interface
RS-232, USB, SD card, Bluetooth
Airborne battery
source
Rechargeable lithium battery, 3100mAH
voltage
DC 7.4V
Continuous working hours
8 hours
Size and weight
size
200mm×190mm×350mm
weight
6.0Kg

Why Choose Us

Ortho Image South Robotic Total Station Surveying Equipment Instrument 6
GEODETSKOJ ŠKOLI SPLIT isporučujemo STONEX totalne stanice, teodolite i GNSS prijemnike
Geodetske škole imaju ključnu ulogu u pružanju učenicima potrebnog znanja i vještina u području geodezije.Integracija najnovijih
geodetskih instrumenata u takve obrazovne ustanové može značajno poboljšati iskustvo učenika i bolje ih pripremiti za primjenu u
stvarnom svijetu.Najnoviji geodetski instrumenti nude napredne značajke i mogućnosti koje mogu pružiti studentima intenzivnije
iskustvo učenja.Korištenjem ovih instrumenata, studenti mogu steći praktično iskustvo u prikupljanju podataka, analizi itumačenju, što su ključne vještine u području geodezije.
U suradnji sa STONEX S.r.l. Italija, geodetskoj školi u Splitu isporučili smo najnovije totalne stanice, teodolite i GNSS prijemnike.
Ortho Image South Robotic Total Station Surveying Equipment Instrument 7



Certifications
Ortho Image South Robotic Total Station Surveying Equipment Instrument 8
Ortho Image South Robotic Total Station Surveying Equipment Instrument 9

Company Profile
Ortho Image South Robotic Total Station Surveying Equipment Instrument 10


FAQ



1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian



Our Service
Ortho Image South Robotic Total Station Surveying Equipment Instrument 11

Packing & Delivery
Ortho Image South Robotic Total Station Surveying Equipment Instrument 12
