Robotic Total Station

Surveying Equipment SOUTH Total Station NTS-362R10 Automatic Total Station

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

Surveying Equipment SOUTH Total Station NTS-362R10 Automatic Total Station

Brand Name:	SOUTH
Model Number:	NTS-362R10
MOQ:	1 set
Price:	＄1300.00
Payment Terms:	T/T, L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Robotic Total Station SOUTH NTS-362R10

Customized Support:

OEM, ODM

Power:

Lithium Battery

Reflectorless:

1000m

Display:

LCD Display

Accuracy: Non Prism:

2+2ppm

Accuracy:

Operating Time:

8 Hour

Highlight:

battery powered electronic total station survey

Automatic electronic total station survey

totalstations Equipment

Product Description

Surveying Equipment SOUTH Total Station NTS-362R10 Automatic Total Station

Product Overview

Get to know the product better

SOUTH NTS-332 series total stations adopt new technologies such as laser ranging, coding and dual-axis compensation, which greatly reduces the failure rate and improves the efficiency of surveying operations.

All related parts have been redesigned and improved, and the problems of waterproof, moisture-proof and dust-proof have been completely solved.

The distance measuring circuit has been changed from two circuit boards to one circuit board, which is more reliable and easy to maintain. The new height of the station instrument.

Specification

model	NTS-362R10	NTS-362R12	NTS-362R15
Distance measurement (with cooperative targets)
Single prism	5000m	5000m	5000m
Reflector(60mm×60)	1000m	1200m	1500m
accuracy	±(2+2×10¯6·D)mm
Measurement time	Accurate measurement for 0.3 seconds and tracking for 0.1 seconds
Prism free distance measurement (no cooperative target)
Range (Kodak White, 90% Reflectivity)	1000m	1200m	1500m
accuracy	±(3+2×10¯6·D)mm
Measurement time	0.3~3 seconds
Angle measurement
Angle measurement method	Absolute coding angle measurement technology
Disc diameter	79mm
Minimum reading	0.1 "/1"/5 "/10" optional
accuracy	2"
Detection method	Horizontal disc: opposite diameter Vertical disc: opposite diameter
telescope
imaging	Ortho image
Mirror tube length	154mm
Effective aperture of objective lens	45mm
Magnification rate	30X
Field of view angle	1°30'
resolving power	3"
Minimum focusing distance	1.2m
System comprehensive parameters
compensator	Dual axis liquid optoelectronic compensator (compensation range: ± 4/± 6 optional, resolution: 1 ")
Meteorological correction	Automatic correction of temperature and pressure sensors
Prism constant correction	Automatically correct input parameters
Level
Pipe level	30"/2mm
Circular level	8'/2mm
Laser centering device (optical centering device optional)
Brightness adjustment	Level 3 regulation
Accuracy	± 1.5mm (at 1.5m)
Display section
Screen type	320 × 240 dot matrix high-definition and high brightness display screen
Screen size	2.7 inches
digital display	Maximum: 99999999.9999 Minimum: 0.1mm
data transmission
Data interaction interface	RS-232, USB, SD card, Bluetooth
Airborne battery
source	Rechargeable lithium battery, 3100mAH
voltage	DC 7.4V
Continuous working hours	8 hours
Size and weight
size	200mm×190mm×350mm
weight	6.0Kg

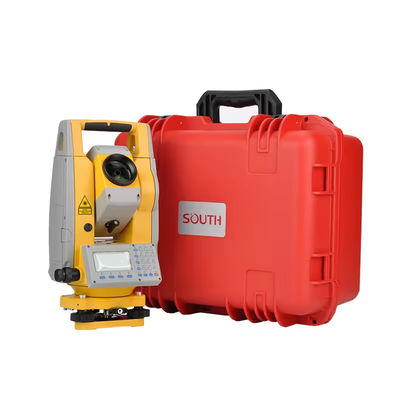

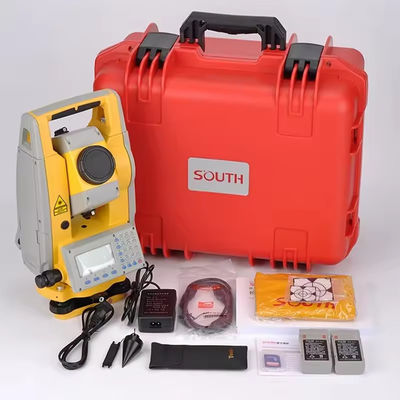

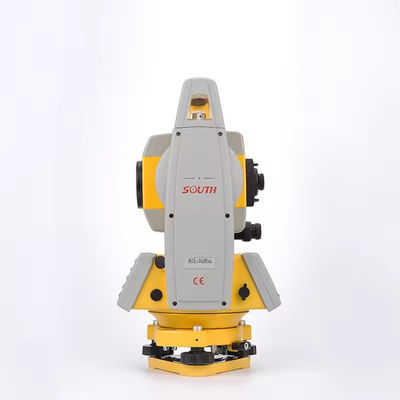

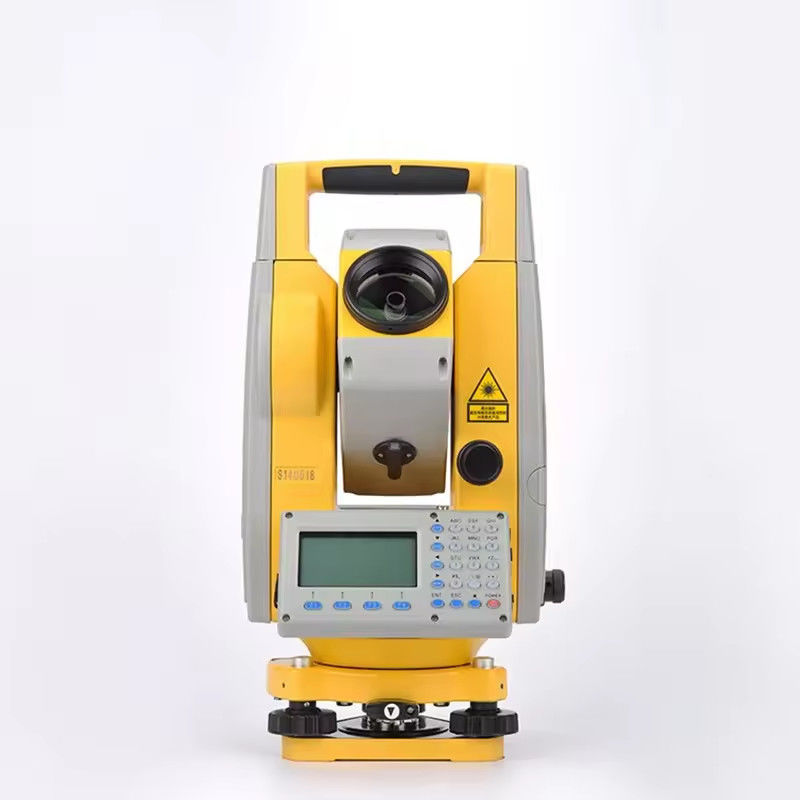

Product Display
