CHC Z100/I89 with 1408channel UM980 with IMU Professional Dgps Surveying Instruments High Accuracy Survey Equipmens Rtk

Brand Name:	CHCNAV
Model Number:	Z100
MOQ:	1 piece
Price:	$1,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Material:

Magnesium Alloy

Operating Language:

English

Application:

Land Surveying

Channels:

Customized Support:

L1c/a, L1c, L2c, L2e, L5

Glonass:

G1/G2/G3

Galileos:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A,L1C,L2C,L5

Transmitting Speed:

9.6Kbps, 19.2Kbps

Supply Ability:

1 ~ 30 day

Highlight:

chc rtk gnss

chc gnss rtk receiver

i89 rtk gnss

Product Description

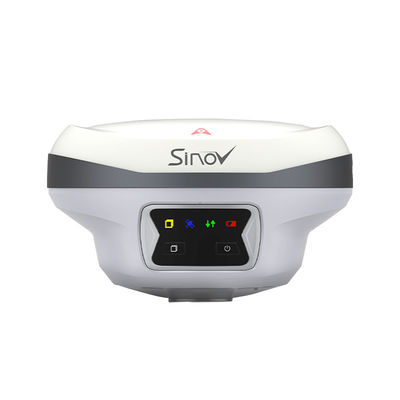

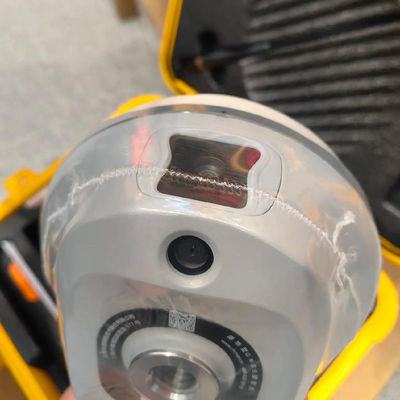

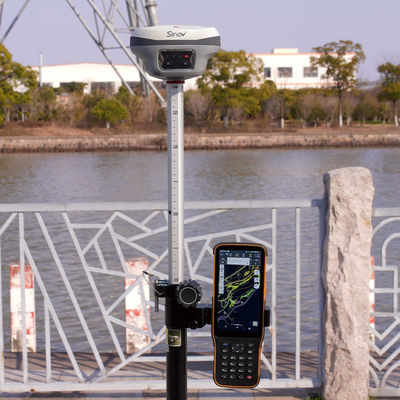

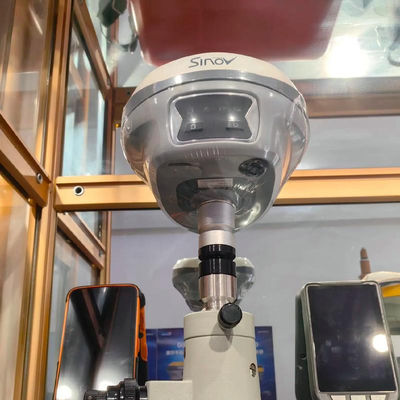

Product Display

Product Paramenters

GNSS Performance
Channels	1408 channels
GPS	L1C/A,L1C,L2C,L2P,L5
GLONASS	G1,G2,G3
Galileo	E1,E5a,E5b,E6*
SBAS	L1C/A*
QZSS	L1C/A,L1C,L2C,L5
IRNSS	L5*
BDS	B1I,B2I,B3I,B1C,B2a,B2b*
GNSS Accuracies
Real time kinematics (RTK)	Horizontal: 8 mm + 1 ppm RMS Vertical: 15 mm + 1 ppm RMS Initialization time: <10 s Initialization reliability: >99.9%
Post-processing kinematics (PPK)	Horizontal: 3 mm + 1 ppm RMS Vertical: 5 mm + 1 ppm RMS
Post-processing static	Horizontal: 2.5 mm + 0.5 ppm RMS Vertical: 5 mm + 0.5 ppm RMS
Code differential	Horizontal: 0.4 m RMS Vertical: 0.8 m RMS
Autonomous	Horizontal: 1 m RMS Vertical: 1.5 m RMS
Positioning rate	1 Hz, 5 Hz and 10 Hz
Time to first fix	Cold start: < 45 s Hot start: < 10 s Signal re-acquisition: < 2s
IMU update rate	200 Hz
Tilt angle	0-60°
RTK tilt -compensated	Additional horizontal pole-tilt uncertainty typically less than 10 mm + 0.7 mm/° tilt
Hardware
Size (L x W x H)	133.5mm*80mm
Weight	0.73 kg (1.60 lb)
Front panel	4 LED, 2 physical buttons
Environment	Operating: -40°C to +65°C (-40°F to +149°F) Storage: -40°C to +85°C (-40°F to +185°F)
Humidity	100% condensation
Ingress protection	IP67 waterproof and dustproof,protected from temporary immersion to depth of 1 m
Shock	Survive a 2-meter pole drop
Tilt sensor	Calibration-free IMU for pole-tilt compensation. Immune to magnetic disturbances.E-Bubble leveling
Communication
Wi-Fi	802.11 b/g/n, access point mode
Bluetooth	V4.2
Others	NFC
Ports	1 x USB Type-C port(external power, data download, firmware update) 1 x UHF antenna port (TNC female)
UHF radio	Standard Internal Tx/Rx: 410 -470 MHz Transmit Power: 0.5 W, 1W Protocol: CHC, Transparent, TT450, Satel Link rate: 9,600 bps to 19,200 bps
Data formats	RTCM 2.x, RTCM 3.x, CMR input /output HCN, HRC, RINEX 2.11, 3.02 NMEA 0183 output NTRIP Client, NTRIP Caster
Data storage	8 GB internal memon
Electrical
Power consumption	Typical 4 W (depending on user settings)
Li-ion battery capacity	Built-in non-removable battery 6800 mAh, 7.4 V
Operating time on internal battery	UHF I4G RTK Rover: up to 14.5 h UHF RTK Base: up to 6.5 h Static: up to 18 h
Certifications
CE Mark; FCC Part 15 Subpart B Class B; NGS Antenna Calibration

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

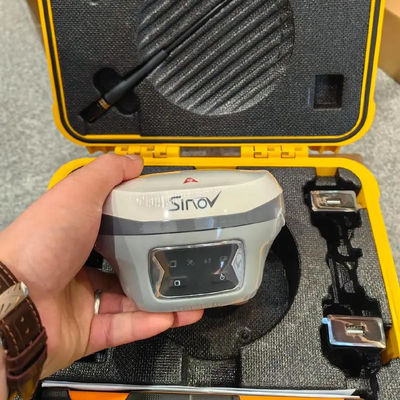

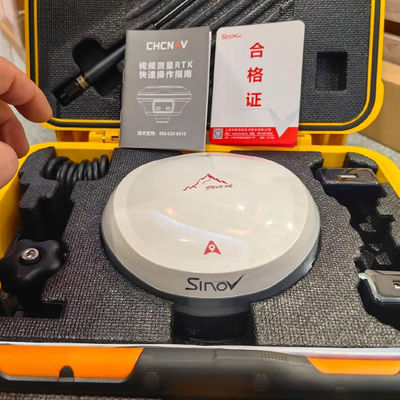

Packing & Delivery
