CHC X16 Pro/I93 Differential Gnss High Accuracy Gps Module Survey Instruments Gps Gnss Gps Rtk

Brand Name:	CHCNAV
Model Number:	X16 Pro
MOQ:	1 piece
Price:	$5,100.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Frequency:

1408 Channels

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1,E5a,E5b,E6*

QZSS:

L1C/A,L1C,L2C,L5

B1I,B2I,B3I,B1C,B2a,B2b*

Supports:

Internal Battery Life:

25hours

Application:

Full-wave

Weight:

1.15kg

Supply Ability:

1 ~ 30 day

Highlight:

chc gnss gps rtk

chc rtk gnss gps

l2p gnss gps rtk

Product Description

Product Paramenters

Technical parameter
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS, Support the Beidou three generations, support Five Star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b* GPS: L1C/A,L1C,L2C,L2P,L5 GLONASS: G1,G2,G3 Galileo: E1,E5a,E5b,E6* QZSS: L1C/A,L1C,L2C,L5 IRNSS: L5* SBAS: L1C/A*
	Number of channels	1408
	Initialization reliability	99.99%
	Satellite-based differential (optional)	Can work without a network
	signal capture sensitivity	Typical value - 162dbm, stronger ability to capture weak signals
	No network continuous test	Support
Accuracy	static precision	Plane accuracy: ±(2.5mm+0.5×10-6 ×D)mm Height accuracy: ±( 5mm+0.5×10 -6 ×D)mm
	RTK accuracy	Plane accuracy: ±( 8mm+1×10 -6 ×D)mm Height accuracy: ±(15mm+1×10 -6 ×D)mm
	Tilt measurement accuracy	8mm+0.3 mm/° tilt
	Real-world measurement accuracy	typically 2~4cm, measuring distance 2~15 meters
GNSS+Inertial navigation	IMU update	200Hz
GNSS+Inertial navigation	rate tilt angle	0-60°
User interaction	LCD screen	Quasi-retina screen, color high-definition 1.1-inch OLED resolution: 126*294 can be seen clearly and brightly even under direct sunlight
	LED	1 satellite light + 1 differential data light
	button	Fn function key + power/confirmation key
	web page	supports PC/mobile web pages
Camera	Pixel	2MP&5MP
	Frame	25Hz
	Rate Field of View	75°
	Illumination	Starlight camera, OmniPixel3-GS technology to maintain full-color images under 0.01lux illumination
	Special feature	Video measurement, efficiency increased by 60% 3D modeling, internal and external efficiency doubled AR real-time navigation, put the point without getting lost, visual stakeout, put it in place with one shot
Physical characteristics	Size	Φ152 mm*81 mm
	Weight	1.06Kg
	Material	Magnesium alloy
	Working temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	waterproof breathable membrane	Prevent water vapor from entering the device in harsh environments such as sun exposure and sudden heavy rain
	Waterproof and dustproof	IP68
	Anti-collision	IK08

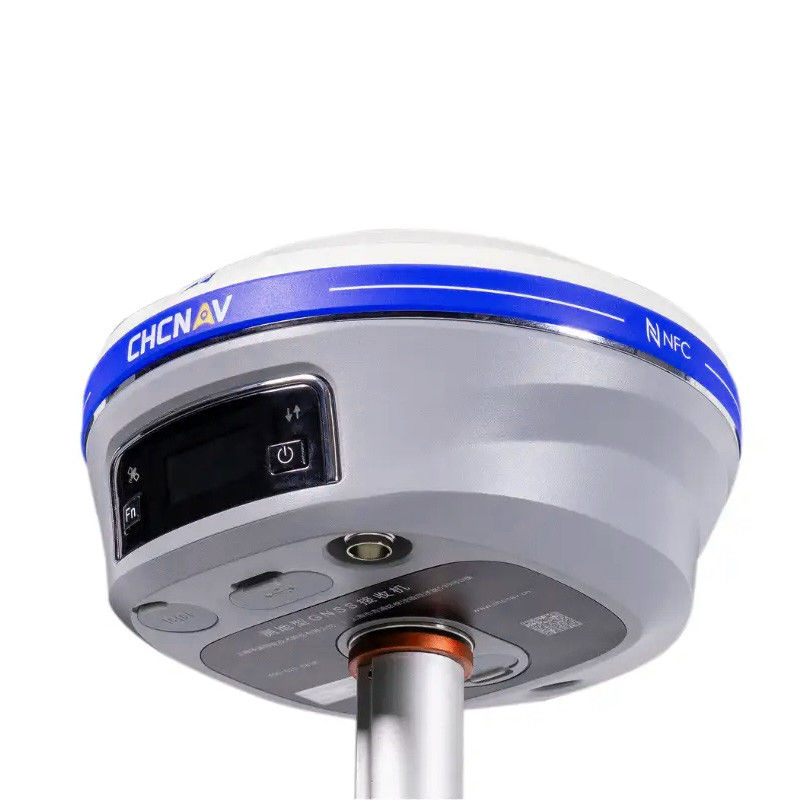

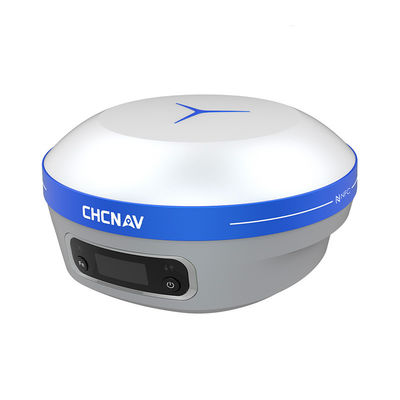

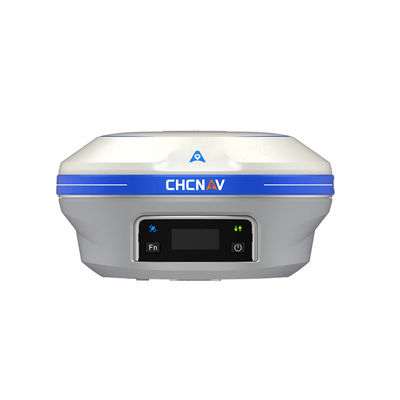

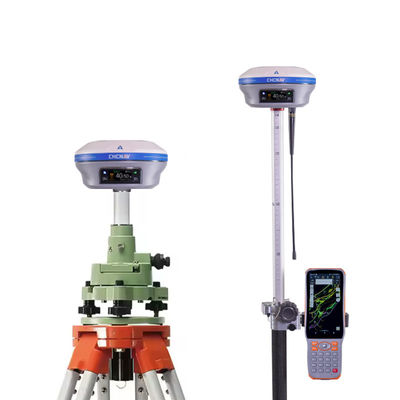

Product Display

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

Our Service

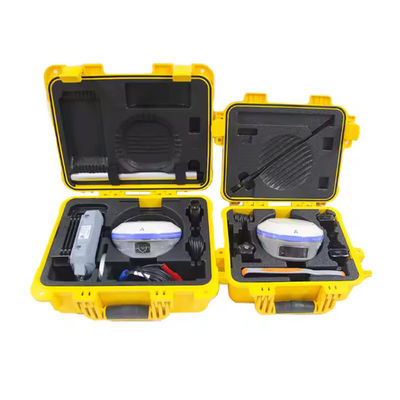

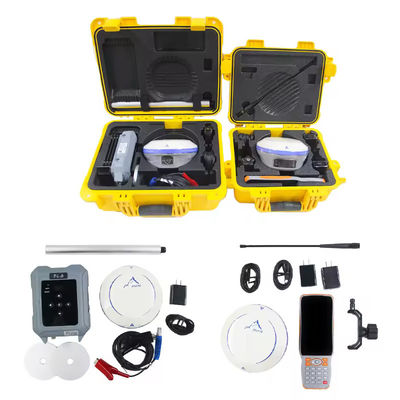

Packing & Delivery
