CHC T9 rover Dual-frequency Cheap Rtk 1408 Channels AR Survey Gnss Gps Receiver Rtk

Brand Name:	CHCNAV
Model Number:	T9 rover
MOQ:	1 piece
Price:	$1,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Frequency:

1408 Channels

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A, L1C, L2C, L2E, L5

B1, B2, B3

Working Range:

5km Typical, 8~10km Optimal

Supports:

Application:

Full-wave

Transmitting Power:

0.5W, 1W, 2W Adjustable

Weight:

Supply Ability:

1 ~ 30 day

Highlight:

chc rtk gnss

chc gnss rtk receiver

gps rtk gnss

Product Description

Product Paramenters

project	content	index
Satellites and Accuracy	satellite system	GPS+BDS+Glonass+Galileo+QZSS, support the third generation of Beidou, support five-star twenty-one frequency
	number of channels	1408
	Initialize reliability	99.90%
	No network continued test	Support high-precision solution, the base station can publish data such as power information
	Signal capture sensitivity	Typical value -162dbm, stronger ability to capture weak signal
	satellite-based differential	Support L-Band function:
	(optional)	Support Beidou third-generation B2b-ppp service, the accuracy can reach centimeter level
		Support domestic satellite-based enhanced services (centimeter level)
		Support ground-based augmentation system differential services (centimeter level)
		Global satellite-based centimeter-level services can be opened
GNSS+Inertial Navigation[2]	IMU update rate	200Hz
	slope	0-60 degrees
	super inertial navigation	Support travel process to complete initialization, and support centering rod calibration
User interaction	indicator light	1 satellite light + 1 differential data light + 1 static indicator light + 1 power light
	button	Static toggle key + power/confirm key
	web page	Support PC/mobile web pages
Camera	Function	Support visual stakeout
	pixel	2MP
	frame rate	25Hz
	Field of View (H, V)	75°, 75°
	Illumination	Starlight-level camera, still maintains full-color picture under 0.01lux illumination
physical properties	size	Φ133mm*87.6mm
	weight	0.8 Kg (including battery)
	material	magnesium alloy
	Operating temperature	-45℃~+75℃
	storage temperature	-55℃~+85℃
	waterproof breathable membrane	Prevent water vapor from entering the equipment in harsh environments such as sun exposure and sudden heavy rain
	Waterproof and dustproof	IP68 (Protection against 1 meter immersion in water for 30 minutes)
	anti-collision	IK08 (with the same mechanical impact force as a 2.5kg steel ram without damage, 3 meters drop resistance)
Electrical properties	Battery	Built-in 6600mAh lithium battery
	Battery	The typical battery life of the mobile station is more than 16h
	fast charge	Support fast charge, up to 24w fast charge
	Built-in storage	8GB, can support external expansion 128G, automatic cycle storage, disk
	Built-in storage	After the storage is full, it will be automatically deleted, and the static data of the receiver will be copied with one key.
data output	Differential data	RTCM2.X, RTCM3.X, CMR, CHC516
	positioning data	NMEA-0183
	static data	HCN, RINEX 2.11, RINEX3.02
data communication	wireless connection	Support Wi-Fi data link
	network module	Handbook supports 4G full Netcom
	radio	Built-in single-receiver radio, support CTI/TT450/transparent transmission protocol
Advanced Features	One-click fix	Comes with a CORS account, which can be fixed at startup
Advanced Features	Smart service	Support CTI cloud service, provide cloud storage, function code sharing
control handbook	model	HCE600 Android Measurement Handbook
	operating system	Android 10
	CPU	Octa-core 2.0GHz processor
	network	4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
	Operating temperature	-30℃-+60℃
	Storage temperature	-40℃-+80℃
	Waterproof and dustproof	IP68

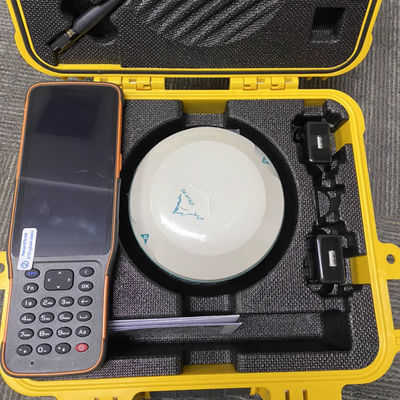

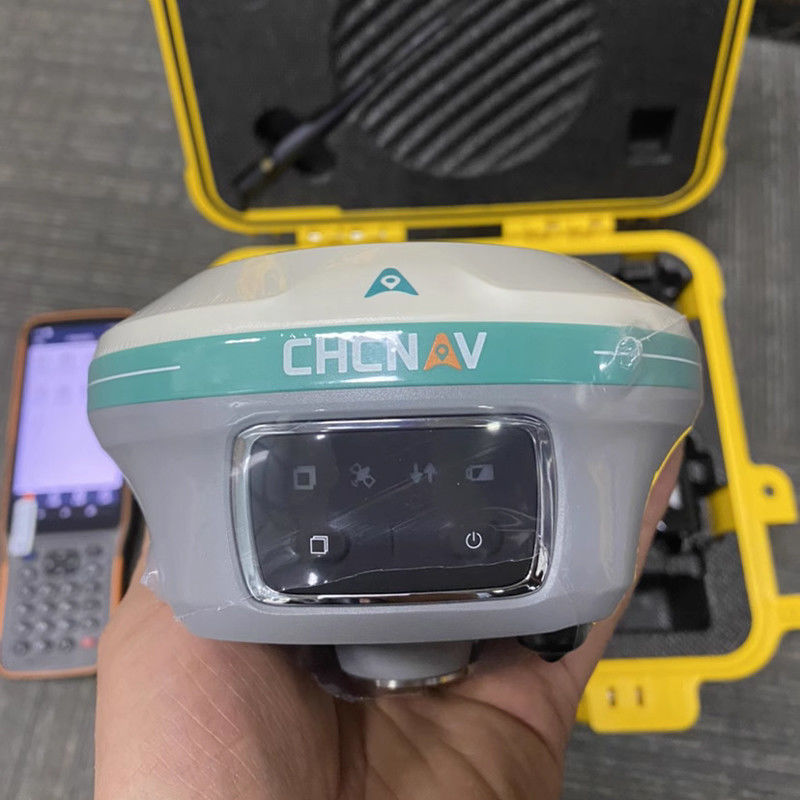

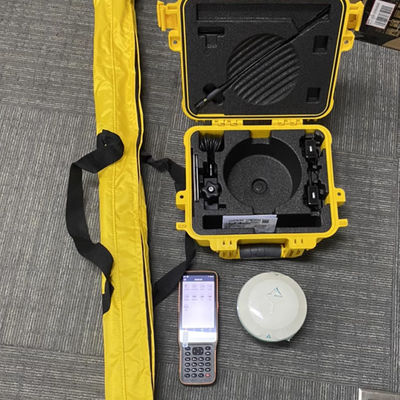

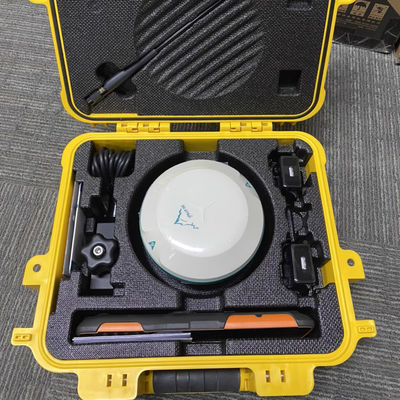

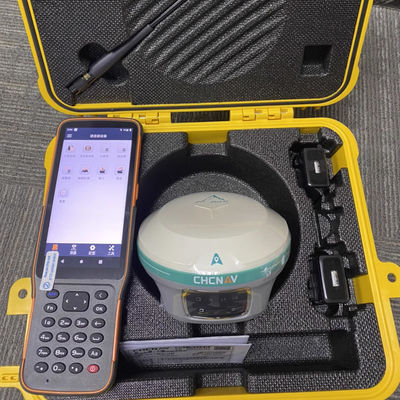

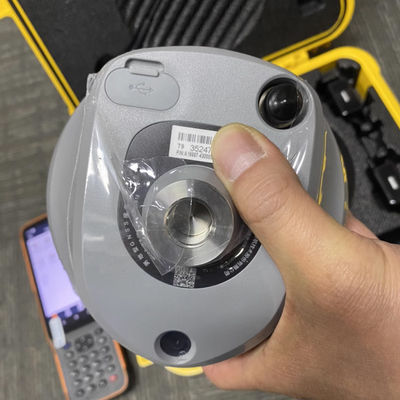

Product Display
