CHC T11 GNSS RTK Receiver AR L2C L2P GPS Surveying Equipment

All Category

Echo Sounder

Miss. Lili Zhou

yyi658731@gmail.com

ChengDu-3987

Contact Now

CHC T11 GNSS RTK Receiver AR L2C L2P GPS Surveying Equipment

Brand Name:	CHCNAV
Model Number:	T11 rover
MOQ:	1 piece
Price:	$1,999.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

GNSS RTK

Frequency:

1408 Channels

B1, B2, B3

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A, L1C, L2C, L2E, L5

Supports:

Application:

Full-wave

Transmitting Speed:

9.6Kbps, 19.2Kbps

Transmitting Power:

0.5W, 1W, 2W Adjustable

Working Range:

5km Typical, 8~10km Optimal

Weight:

Waterproof And Dustproof:

Supply Ability:

1 ~ 30 day

Highlight:

CHC T11 GNSS RTK Receiver

L2C GPS GNSS RTK Receiver

L2P Gps surveying equipment

Product Description

CHC T11 Dual-frequency Cheap Rtk 1408 Channels AR Survey GNSS GPS Receiver RTK

Product Paramenters

Precise Location Measurement: The CHCNAV T11RTK GPS measuring instrument provides accurate location data with an initialize reliability of 99.99% and can measure up to 1408 channels, making it ideal for precise geodesic and GNSS RTK surveying applications.
Durable and Water Resistant: With an IP68 rating, this instrument is waterproof and dustproof, ensuring it can withstand harsh environments and conditions, including extreme temperatures between -45°C to +75°C.
High-Quality Video Output: The device features a 2MP and 5MP camera, capable of capturing high-quality video at a frame rate of 25Hz, allowing for detailed and accurate visual data collection.
Customization Options: The CHCNAV T11RTK offers OEM customization support, allowing users to tailor the instrument to their specific needs and requirements.
Long-Lasting Battery Life: Powered by a battery, this instrument provides a reliable and portable solution for extended surveying operations, with a battery life that meets the needs of users in various environments.

TECHNICAL PARAMETER
project	content	index
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS
	Satellite system	Support Beidou three generations, support Five star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b*
		GPS: L1C/A,L1C,L2C,L2P,L5
		GLONASS: G1,G2,G3
		Galileo: E1,E5a,E5b,E6*
		QZSS: L1C/A,L1C,L2C,L5
		IRNSS: L5*
		SBAS: L1C/A*
	Channel	1408
	Initialization reliability	99.99%
	No network continued test	support
	Signal acquisition sensitivity	Typical value -162 dbm, the ability to capture weak signals is stronger
Accuracy	Static accuracy	Planar accuracy:±(2.5mm + 0.5×10-6×D)mm
	Static accuracy	Elevation accuracy:±(5mm + 0.5×10-6×D)mm
	RTK accuracy	Planar accuracy:±( 8mm + 1×10-6×D)mm
	RTK accuracy	Elevation accuracy:±(15mm + 1×10-6×D)mm
	Tilt compensation accuracy	8mm + 0.3mm /° tilt (accuracy <2.5cm within 30°)
	Video measurement accuracy	Typical 2~4cm, measuring distance 2~ 15m
GNSS+ Inertial navigation	IMU update rate	200Hz
	Tilt Angle	0-60°
	Insensitive super inertial navigation	No initialization is required, the INS will not exit after initialization

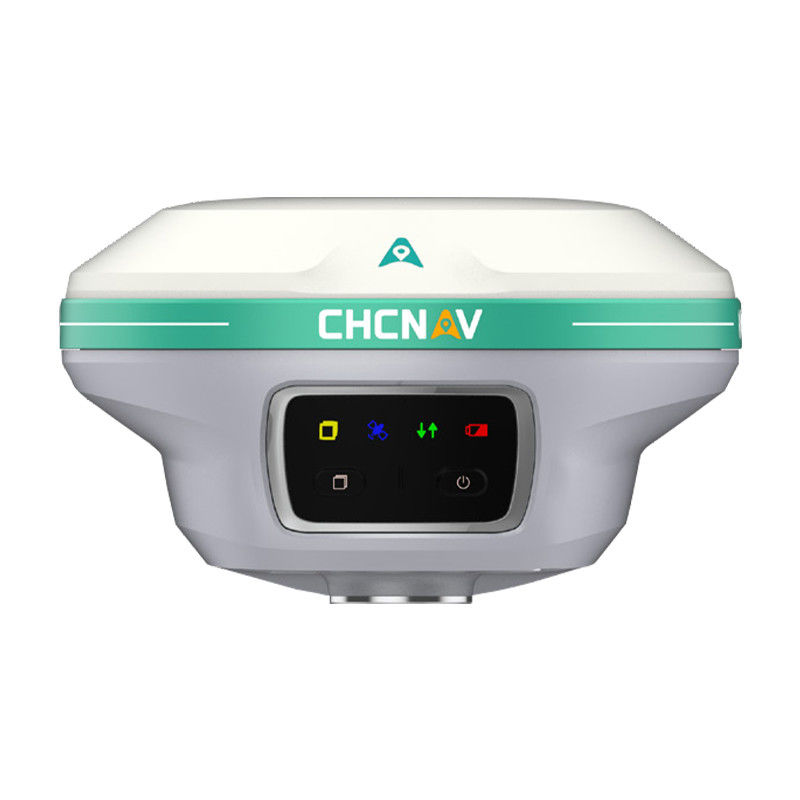

User interaction	Pilot lamp	1 satellite light +1 differential data light +1 static indicator light +1 power light
	key	Static switch button + Power/Confirm button
	web page	Support PC/ mobile web page

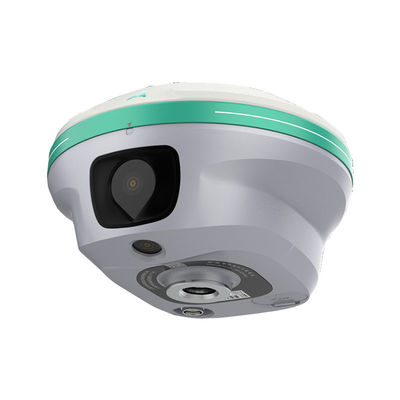

camera	Characteristic function	Video measurement, efficiency increase by 60%*
		3D modeling, double the efficiency of internal and external work *
		AR real navigation, put a point not lost
		Visual lofting, one stick in place
	pixel	2MP&5MP
	Frame rate	25Hz
	Field of view (H, V)	75°,75°
	illuminance	Starlight camera, OmniPixel 3-GS technology
	illuminance	Full color picture at 0.01lux
Physical characteristics	dimension	Φ133.5mm*80mm
physical properties	weight	725g (battery included)
	material	Magnesium alloy
	Operating temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 (30 minutes underwater 1 meter immersion)
	anticollision	IK08 (subjected to the same mechanical impact as the 2.5kg steel ram without damage, resistance to 3m drops)
	anti-condensation	100%

CHC T11 GNSS RTK Receiver AR L2C L2P GPS Surveying Equipment 0

CHC T11 GNSS RTK Receiver AR L2C L2P GPS Surveying Equipment 2

CHC T11 GNSS RTK Receiver AR L2C L2P GPS Surveying Equipment 3

Certifications

Company Profile

FAQ

1. who are we?
We are based in sichuan, China, start from 2016,sell to Africa(30.00%),Southeast Asia(16.00%),Mid East(11.00%),Eastern
Asia(10.00%),South America(10.00%),Central America(5.00%),South Asia(5.00%),Southern Europe(5.00%),North America(4.00%),Eastern
Europe(4.00%). There are total about 11-20 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
GNSS RTK,Total station,Level,Survey accessory,laser rangefinder

4. why should you buy from us not from other suppliers?
1.More than 20 years of experience in the trade field. 2.All products will have been strictly quality checked in factory before
sending out and all products have one year warranty.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian
