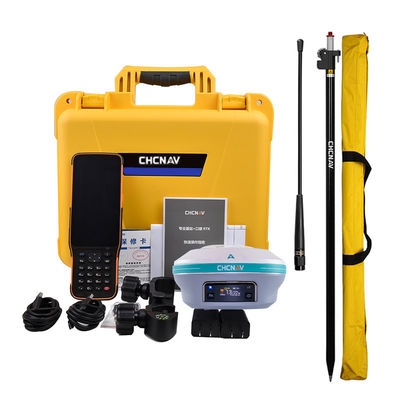

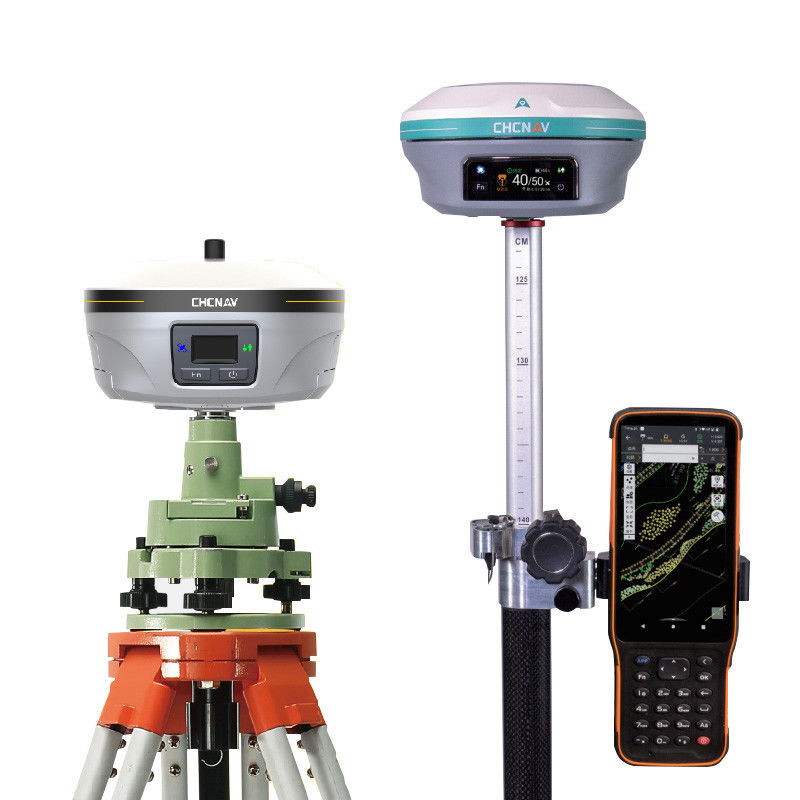

High precision chc t12 pro rover and B5 base land survey chc t12 pro and ibase Gnss receiver Gps Rtk system

Brand Name:	CHCNAV
Model Number:	T12 Pro rover+B5 base
MOQ:	1 piece
Price:	$4,500.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Frequency:

1408 Channels

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A, L1C, L2C, L2E, L5

B1, B2, B3

Working Range:

5km Typical, 8~10km Optimal

Application:

Full-wave

Transmitting Power:

0.5W, 1W, 2W Adjustable

Supply Ability:

1 ~ 30 day

Highlight:

chc rtk gnss

chc gnss rtk receiver

t12 rtk gnss

Product Description

Product Paramenters

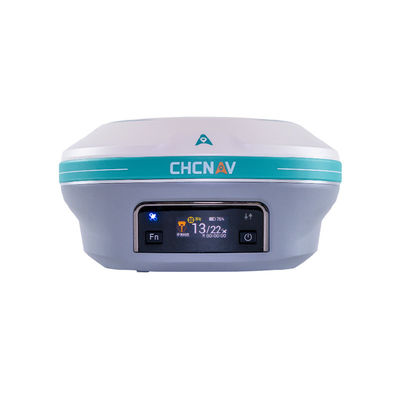

T12 pro rover
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS, Support the Beidou three generations, support Five Star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b* GPS: L1C/A,L1C,L2C,L2P,L5 GLONASS: G1,G2,G3 Galileo: E1,E5a,E5b,E6* QZSS: L1C/A,L1C,L2C,L5 IRNSS: L5* SBAS: L1C/A*
	Number of channels	1408
	Initialization reliability	99.99%
	Satellite-based differential (optional)	Can work without a network
	signal capture sensitivity	Typical value - 162dbm, stronger ability to capture weak signals
	No network continuous test	Support
Accuracy	static precision	Plane accuracy: ±(2.5mm+0.5×10-6 ×D)mm Height accuracy: ±( 5mm+0.5×10 -6 ×D)mm
	RTK accuracy	Plane accuracy: ±( 8mm+1×10 -6 ×D)mm Height accuracy: ±(15mm+1×10 -6 ×D)mm
	Tilt measurement accuracy	8mm+0.3 mm/° tilt
	Real-world measurement accuracy	typically 2~4cm, measuring distance 2~15 meters
GNSS+Inertial navigation	IMU update	200Hz
GNSS+Inertial navigation	rate tilt angle	0-60°
User interaction	LCD screen	Quasi-retina screen, color high-definition 1.1-inch OLED resolution: 126*294 can be seen clearly and brightly even under direct sunlight
	LED	1 satellite light + 1 differential data light
	button	Fn function key + power/confirmation key
	web page	supports PC/mobile web pages

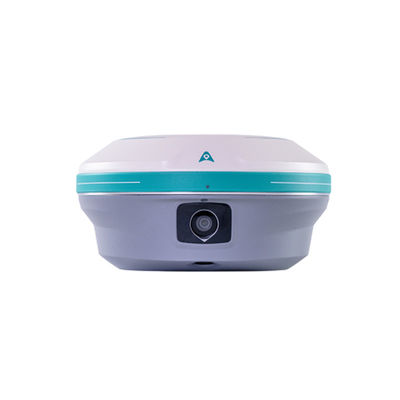

Camera	Pixel	2MP&5MP
	Frame	25Hz
	Rate Field of View	75°
	Illumination	Starlight camera, OmniPixel3-GS technology to maintain full-color images under 0.01lux illumination
	Special feature	Video measurement, efficiency increased by 60% 3D modeling, internal and external efficiency doubled AR real-time navigation, put the point without getting lost, visual stakeout, put it in place with one shot
Physical characteristics	Size	Φ152 mm*81 mm
	Weight	1.06Kg
	Material	Magnesium alloy
	Working temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	waterproof breathable membrane	Prevent water vapor from entering the device in harsh environments such as sun exposure and sudden heavy rain
	Waterproof and dustproof	IP68
	Anti-collision	IK08

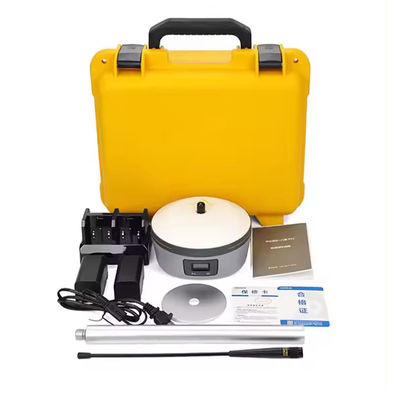

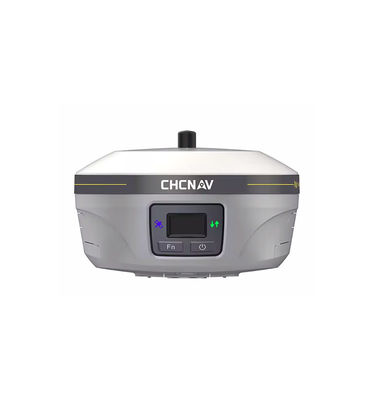

B5 base
project	content	parameter
Receiver characteristics	satellite tracking	GPS+BDS+Glonass+galileo+QZSS, support Beidou third-generation satellites, support five-star sixteen-frequency
	operating system	LINUX operating system
	number of channels	1408 channels
	Initialization time	<5s (typ.)
	Initialize reliability	>99.99%
Receiver appearance	button	1 dynamic/static switch key, 1 power key
Receiver appearance	indicator light	1 differential signal light, 1 satellite light, 1 static data acquisition light, 1 power light
Nominal accuracy	static precision	Plane accuracy: ±(2.5+ 0.5×10-6×D) mm
	static precision	Elevation accuracy: ±(5+0.5×10-6×D) mm
	RTK accuracy	Plane Accuracy: ±(8 + 1×10-6×D) mm
	RTK accuracy	Elevation accuracy: ±(15+ 1×10-6×D) mm
	Stand-alone accuracy	1.5m
	Code differential accuracy	Plane Accuracy: ±(0.25 + 1×10-6×D) m
	Code differential accuracy	Elevation accuracy: ±(0.5+ 1×10-6×D) m
GNSS+Inertial Navigation	IMU	200Hz
	slope	0~60°
	Tilt compensation accuracy	10mm+0.7mm/°tilt (accuracy within 30°<2.5cm)
Electrification parameters	Battery	Built-in 6800mAh lithium battery, support 15 hours battery life of mobile station
Electrification parameters	External power supply	Support external power supply via USB port
physical properties	Size (LWH)	119mm119mm85mm
	weight	0.73kg
	Material	Magnesium alloy AZ91D body
	Operating temperature	-45℃~+75℃
	storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 class
	shock shock	IK08 class
	Anti-drop	Resist 2 meters free fall
data output	output format	NMEA 0183, binary code
data output	output method	BT/Wi-Fi/Radio
static storage	storage format	Can directly record HCN, HRC, RINEX
	storage	Standard 8GB built-in storage
	Download method	Universal USB data download; HTTP download
data communication	I/O interface	1 external UHF antenna port
	I/O interface	1 USB-TypeC interface, support charging, power supply, data download
	network module	Handbook supports 4G full Netcom
	Radio station	Built-in high frequency 450-470MHz single receiver radio
	protocol	CTI protocol, transparent transmission, TT450
	Blue tooth	BT4.0, backward compatible with BT2.x, compatible with Windows, Android, IOS systems
	data transmission	Wi-Fi data link
	Wi-Fi	802.11 b/g/n
	NFC	Support NFC flash connection
Receiver function	super double	Support radio + network two-way data differential at the same time, provide comprehensive data services
	One-click match	Support handbook software to match base station data with one key
	Remote upgrade	Support one-key remote upgrade
Handbook parameters	model	HCE600 Android Measurement Handbook
	The internet	4G full Netcom, built-in eSIM for three years of surveying and mapping traffic
	operating system	Android 10
	CPU	Octa-core 2.0Ghz processor
	LCD screen	5.5'' HD display
	Battery	14 hours of battery life
	Waterproof and dustproof	IP68
