Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment

Brand Name:	CHCNAV
Model Number:	i89 rover
MOQ:	1 piece
Price:	$1,800.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Frequency:

1408 Channels

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A, L1C, L2C, L2E, L5

B1, B2, B3

Working Range:

5km Typical, 8~10km Optimal

Application:

Full-wave

Transmitting Power:

0.5W, 1W, 2W Adjustable

Supply Ability:

1 ~ 30 day

Highlight:

adjustable GNSS RTK Receiver

CHC I89 GNSS RTK Receiver

L5 GPS gnss survey equipment

Product Description

CHC i89 Hot Selling Gps Surveying Equipment Survey Equipments Gnss Receiver RTK

Product Paramenters

TECHNICAL PARAMETER
project	content	index
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS
	Satellite system	Support Beidou three generations, support Five star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b*
		GPS: L1C/A,L1C,L2C,L2P,L5
		GLONASS: G1,G2,G3
		Galileo: E1,E5a,E5b,E6*
		QZSS: L1C/A,L1C,L2C,L5
		IRNSS: L5*
		SBAS: L1C/A*
	Channel	1408
	Initialization reliability	99.99%
	No network continued test	support
	Signal acquisition sensitivity	Typical value -162 dbm, the ability to capture weak signals is stronger
Accuracy	Static accuracy	Planar accuracy:±(2.5mm + 0.5×10-6×D)mm
	Static accuracy	Elevation accuracy:±(5mm + 0.5×10-6×D)mm
	RTK accuracy	Planar accuracy:±( 8mm + 1×10-6×D)mm
	RTK accuracy	Elevation accuracy:±(15mm + 1×10-6×D)mm
	Tilt compensation accuracy	8mm + 0.3mm /° tilt (accuracy <2.5cm within 30°)
	Video measurement accuracy	Typical 2~4cm, measuring distance 2~ 15m
GNSS+ Inertial navigation	IMU update rate	200Hz
	Tilt Angle	0-60°
	Insensitive super inertial navigation	No initialization is required, the INS will not exit after initialization
User interaction	Pilot lamp	1 satellite light +1 differential data light +1 static indicator light +1 power light
	key	Static switch button + Power/Confirm button
	web page	Support PC/ mobile web page
camera	Characteristic function	Video measurement, efficiency increase by 60%*
		3D modeling, double the efficiency of internal and external work *
		AR real navigation, put a point not lost
		Visual lofting, one stick in place
	pixel	2MP&5MP
	Frame rate	25Hz
	Field of view (H, V)	75°,75°
	illuminance	Starlight camera, OmniPixel 3-GS technology
	illuminance	Full color picture at 0.01lux
Physical characteristics	dimension	Φ133.5mm*80mm
	weight	725g (battery included)
	material	Magnesium alloy
	Operating temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	Waterproof and dustproof	IP68 (30 minutes underwater 1 meter immersion)
	anticollision	IK08 (subjected to the same mechanical impact as the 2.5kg steel ram without damage, resistance to 3m drops)
	anti-condensation	100%

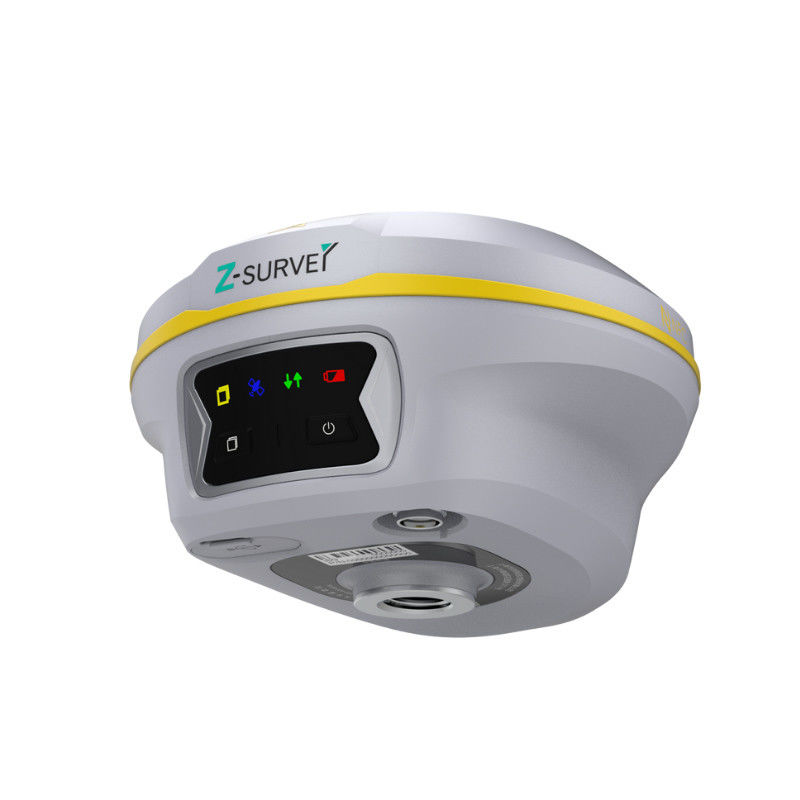

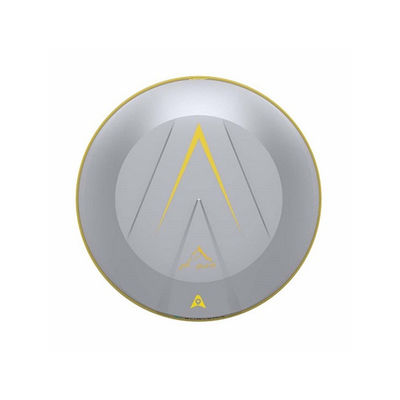

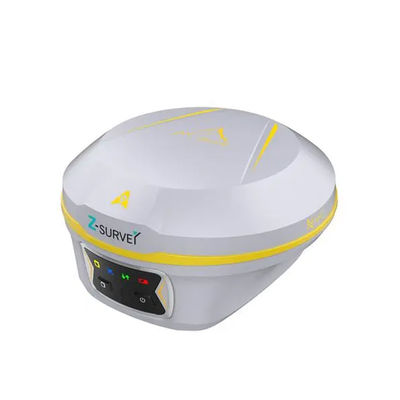

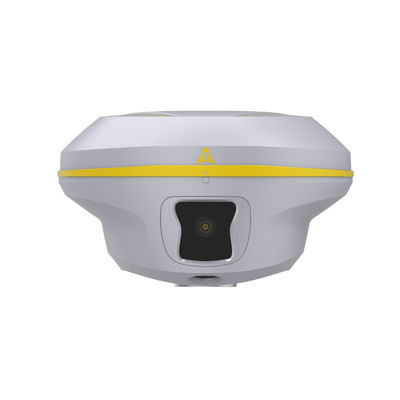

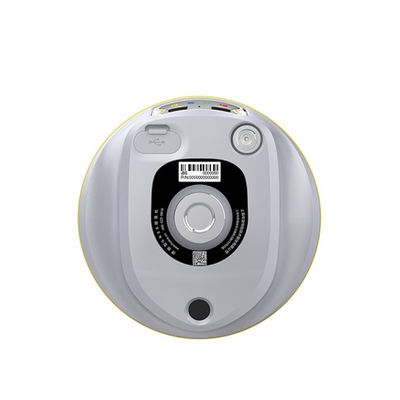

Product Display

Adjustable CHC I89 GNSS RTK Receiver L5 GPS Survey Equipment 7
