Full Constellations Visual GNSS RTK Receiver Base Station And Rover CHC I93 Pro

Brand Name:	CHCNAV
Model Number:	i93 Pro rover
MOQ:	1 piece
Price:	$3,200.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Frequency:

1408 Channels

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A, L1C, L2C, L2E, L5

B1, B2, B3

Working Range:

5km Typical, 8~10km Optimal

Application:

Full-wave

Transmitting Power:

0.5W, 1W, 2W Adjustable

Internal Battery Life:

Static 25hours

Waterproof And Dustproof:

Supply Ability:

1 ~ 30 day

Highlight:

Full Constellations GNSS RTK Receiver

CHC I93 Pro GNSS RTK Receiver

CHC rtk base station and rover

Product Description

Cheap Price Full constellations and frequencies 1408 channels CHC i93 Pro GNSS RTK receiver visual RTK rover

Product Paramenters

Technical parameter
Satellite tracking	Satellite system	GPS+BDS+Glonass+Galileo+QZSS, Support the Beidou three generations, support Five Star 21 frequency point
	Satellite tracking	BDS: B1I,B2I,B3I,B1C,B2a,B2b* GPS: L1C/A,L1C,L2C,L2P,L5 GLONASS: G1,G2,G3 Galileo: E1,E5a,E5b,E6* QZSS: L1C/A,L1C,L2C,L5 IRNSS: L5* SBAS: L1C/A*
	Number of channels	1408
	Initialization reliability	99.99%
	Satellite-based differential (optional)	Can work without a network
	signal capture sensitivity	Typical value - 162dbm, stronger ability to capture weak signals
	No network continuous test	Support
Accuracy	static precision	Plane accuracy: ±(2.5mm+0.5×10-6 ×D)mm Height accuracy: ±( 5mm+0.5×10 -6 ×D)mm
	RTK accuracy	Plane accuracy: ±( 8mm+1×10 -6 ×D)mm Height accuracy: ±(15mm+1×10 -6 ×D)mm
	Tilt measurement accuracy	8mm+0.3 mm/° tilt
	Real-world measurement accuracy	typically 2~4cm, measuring distance 2~15 meters
GNSS+Inertial navigation	IMU update	200Hz
GNSS+Inertial navigation	rate tilt angle	0-60°
User interaction	LCD screen	Quasi-retina screen, color high-definition 1.1-inch OLED resolution: 126*294 can be seen clearly and brightly even under direct sunlight
	LED	1 satellite light + 1 differential data light
	button	Fn function key + power/confirmation key
	web page	supports PC/mobile web pages
Camera	Pixel	2MP&5MP
	Frame	25Hz
	Rate Field of View	75°
	Illumination	Starlight camera, OmniPixel3-GS technology to maintain full-color images under 0.01lux illumination
	Special feature	Video measurement, efficiency increased by 60% 3D modeling, internal and external efficiency doubled AR real-time navigation, put the point without getting lost, visual stakeout, put it in place with one shot
Physical characteristics	Size	Φ152 mm*81 mm
	Weight	1.06Kg
	Material	Magnesium alloy
	Working temperature	-45℃~+75℃
	Storage temperature	-55℃~+85℃
	waterproof breathable membrane	Prevent water vapor from entering the device in harsh environments such as sun exposure and sudden heavy rain
	Waterproof and dustproof	IP68
	Anti-collision	IK08

Product Display

Products Description

I93Pro Video Measurement RTK

The i93Pro video measurement RTK integrates satellite navigation, inertial navigation, and video photogrammetry technology, supporting video measurement and 3D modeling, and efficiently obtaining high-precision 3D coordinates in batches from real-life videos. Points that cannot be measured or difficult to measure by traditional industry RTK can now be measured.

Reliable accuracy of multi engine algorithm verification

Based on global exposure sensors, achieve wide scene, high dynamic, and far range Distance continuous shooting, automatically
outputting high-definition images that meet intelligent analysis requirements,
Using satellite navigation, inertial navigation, and image multi engine algorithm for verification, fast and stable Obtain
three-dimensional coordinates.

Integrated GNSS+IMU+dual cameras

Integrating video photogrammetry technology to quickly and efficiently extract real-world videos Batch acquisition of high-precision real-time 3D coordinates, traditional industry RTK measurement Points that are difficult to measure and difficult to measure can be measured now.

AR real-time navigation, making it more convenient to find points

The front facing camera AR provides real-time navigation, and the large arrow can indicate the direction accurately even at a long distance, without the need to recognize the direction, making it more convenient to find points.

3D modeling

Solving topographic maps through video measurement of RTK dynamic non-contact shooting Obstruction points, unmeasurable points, and difficult to measure points encountered in homework Point, no need to replace equipment, terrain map measurement completed in one go, homework Completed in one go.

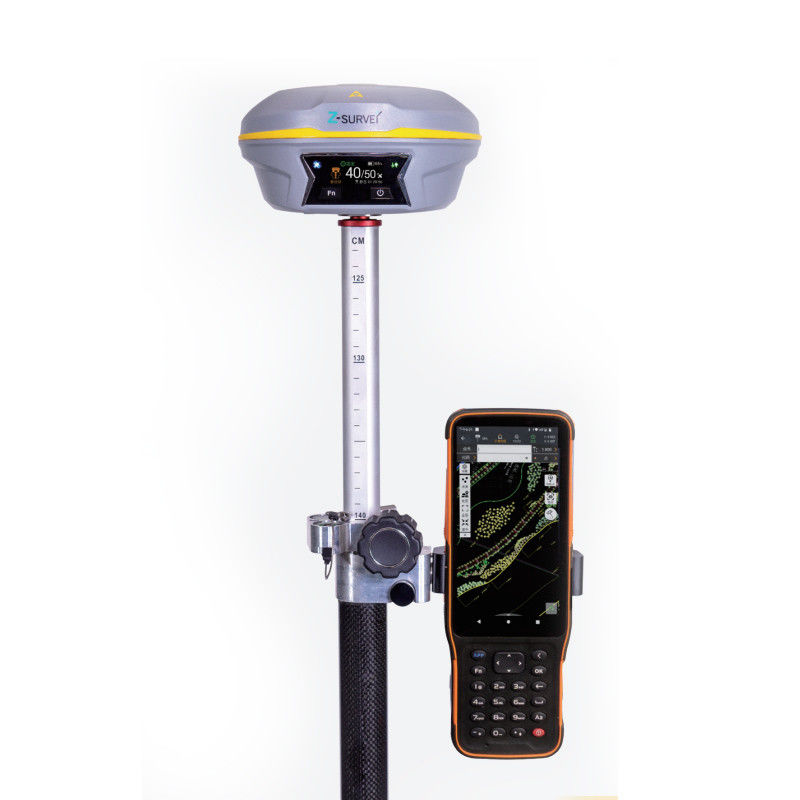

HCE600 Android measurement notebook, clear display under strong light, no lag for 36 months

◎With an average brightness of up to 500nits, it is 20% brighter than similar products and still clearly visible under strong light

◎ Adopting an 8-antenna 360 ° surround design, CORS login does not disconnect, and the connection with the host is more stable

◎Customized backend application cleaning program, no lag after 36 months of use
