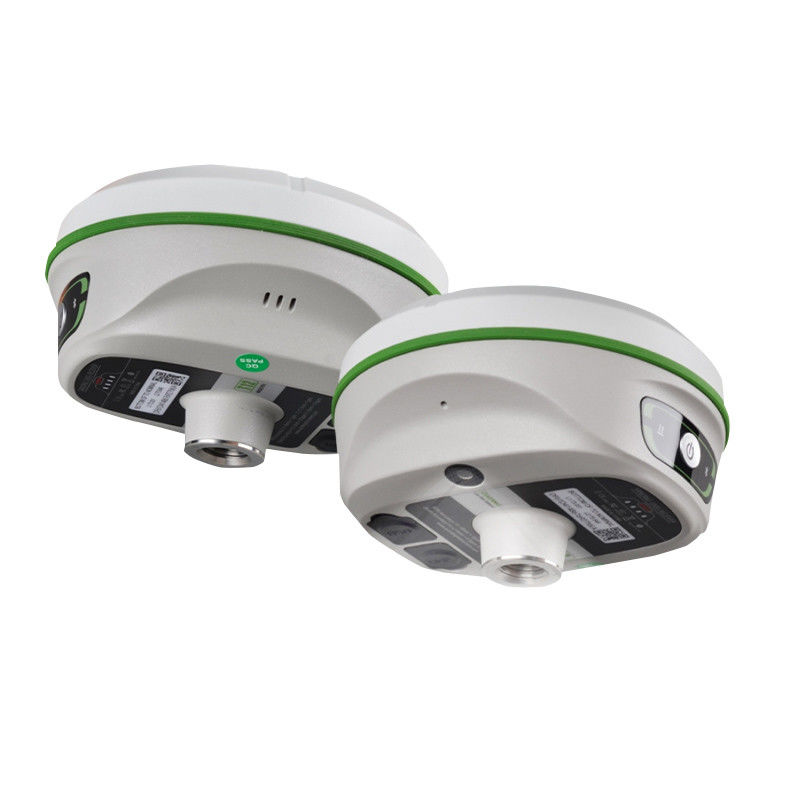

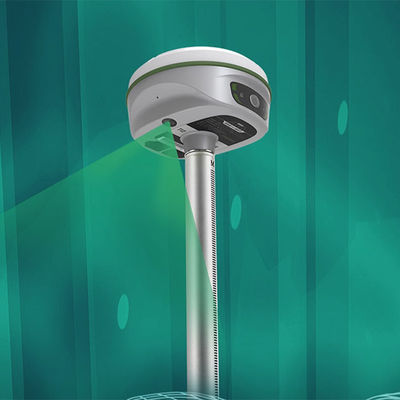

Full Wave Sanding T12 RTK GNSS Rover GPS Surveying Instrument Receiver

Brand Name:	CHCNAV
Model Number:	T12 rover & base
MOQ:	1 piece
Price:	$3,200.00
Payment Terms:	L/C, T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

RTK Receiver

Frequency:

1598 Channels

L1C/A,L1C,L2C,L2P,L5

Galileo:

E1, E5A, E5B, E5AltBOC, E6

QZSS:

L1C/A, L1C, L2C, L2E, L5

B1, B2, B3

Working Range:

5km Typical, 8~10km Optimal

Application:

Full-wave

Transmitting Power:

0.5W, 1W, 2W Adjustable

Internal Battery Life:

Static 25hours

Waterproof And Dustproof:

Supply Ability:

1 ~ 30 day

Highlight:

full wave rtk gnss rover

Sanding rtk gnss rover

T12 gnss receiver rtk

Product Description

Best China Sanding Gnss T12 Rtk Gps Surveying Instrument Cheap Sanding Gps Gnss

Technical Parameters

GNSSconfiguration	Number of channels	1598
	BDS	B1I,B2I,B3I, B1I,B3I,B1C,B2a,B2b
	GPS	L1C/A,L2P,L2C,L5,L1C*
	GLONASS	G1,G2,G3*
	GALILEO	E1,E5b,E5a,E5 AltBoc,E6c
	QZSS	L1 ,L2C, L5/ IRNSS:L5/ SBAS:L1C/A,L5
	Positioning output rate	1Hz~20Hz
	Differential support	CMR,RTCM2.X,RTCM3.0,RTCM3.2
	Static format support	GNS, Rinex dual format static data
	RTK positioning accuracy	Plane: ±(8+1×10-6D) mm (D is the distance between the measured points) Elevation: ±(15+1×10-6D) mm (D is the distance between the measured points)
	Static positioning accuracy	Plane: ±(2.5+0.5×10¯6D) mm (D is the distance between the measured points) Elevation: ±(5+0.5×10¯6D) mm (D is the distance between the measured points)
	DGPS positioning accuracy	Plane accuracy: ±0.25m+1ppm;Elevation accuracy: ±0.50m+1ppm
	Initialization time	<10 seconds
	Initialization reliability	＞99.99%
	IMU tilt compensation	Additional horizontal pole tip uncertainty typically less than 10mm + 0.7 mm/° tilt down to 30° IMU tilt angle:0°~60°
communication	NFC wireless communication	Adopting NFC wireless communication technology, the manual can automatically pair with the host by touching it (the manual alsoneeds to be equipped with an NFC wireless communication module)
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	BLEBluetooth 4.0 standard, support for android, ios cellphone connection
	Wireless modem	Built-in radio, typically work range can be 8KM Radio repeater
	I/O port	5PIN LEMO external power port + RS232, 1 radio antenna interface, Type C , Micro SIM card
	frequency band:	410-470MHz
	Protocol	SOUTH,Farlink,TrimTalk,ZHD, HUACE
User Interface	Buttons	Power key
User Interface	Indicators	Three indicator lights+Battery display light (at the bottom of the instrument): data light, Bluetooth light, power light (button position)
Electrical physical properties	battery	Internal Li-on, 6800mAh, 7.4V
	Power Supply	9-25V DC, overvoltage protection
	size	135mm(Diameter)x84.75mm(Height)
	weight	0.89kg (battery included)
	material	Magnesium aluminum alloy shell
Environmental characteristics	Dust and water release	IP68 standard, protected from long time immersion to depth of 1m
	Storag	-55°C~+85°C
	Operating	-45℃~75℃
sensor	temperature sensor	Built in temperature sensor, using intelligent variable frequency temperature control technology to monitor and adjust the hosttemperature in real-time
System	model	H6
	operating system	Linux
	CPU	2.0 GHz eight-core processor
	Memory	3GB RAM
	Storage	32GB
Communication	Network	TDD/FDD-LTE 4G
	WiFi	802.11b/g access point and client mode, can provide WiFi hotspot service
	Bluetooth	BT4.2(BR/EDR+BLE)
	NFC	Support NFC IGRS
	USB	Mini USB, supports OTG
Electrical	Battery	7.4V, 3400mAh
	Battery life	12 hours
	Charging	< 4 hrs for full charge
Physical	size	131mm*80mm
	Weight	800g
	Operating temperature	-35℃ ~ +80℃
	Voice	IVoice intelligent voice technology, intelligent status reporting, voice operation prompts; Chinese, English, Korean, Russian, Portuguese, Spanish and Turkish are supported by default; Support for voice customization
Data storage/transmission	Data Storage	Built-in 4GB solid-state storage, rich sampling intervals, and support for raw observation data collection up to 20Hz
	data transmission	Supports data transmission such as USB, FTP download, HTTP, etc
	data format	Static data formats: various formats such as Southern STH, Rinex2.01, and Rinex3.02 Differential data format: RTCM3.0, RTCM3.2 input and output GPS output data format: NMEA 0183, PJK plane coordinates, binary code Network mode support: VRS, FKP, MAC, support for NTRIP protocol

Full Wave Sanding T12 RTK GNSS Rover GPS Surveying Instrument Receiver 0
